| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |

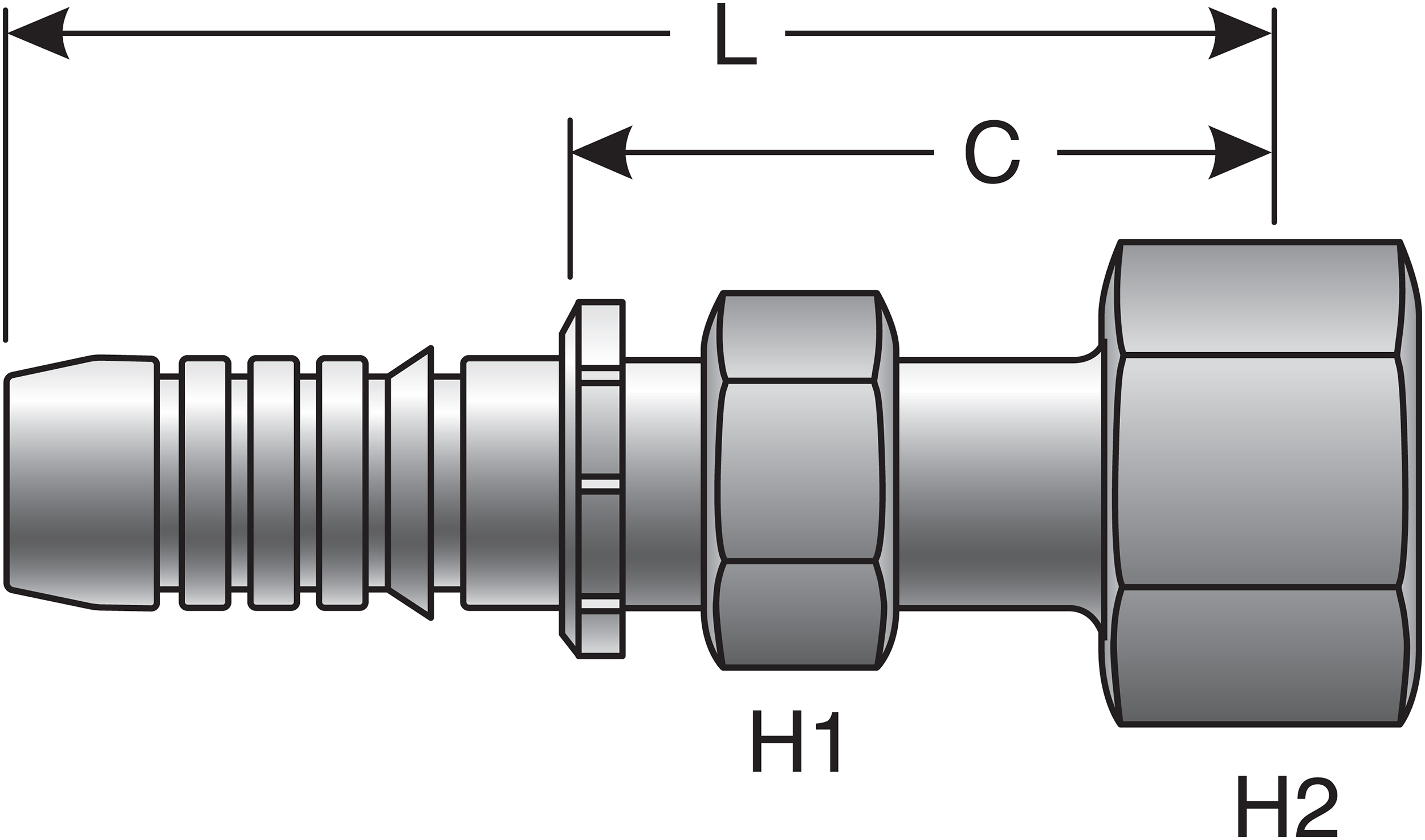

| Cut Off (in) - C | 1.68 |
| Hose Inside Diameter (mm) | 15.9 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .625 |
| Thread Size | 1-14 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 30 |
| Stem Hex (mm) - H1 | 30 |
| Length | 94 |
| Inside Diameter | 15.9 |
| Length (in) | 3.7 |
| Length (MM) | 94 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 42.7 |
| Industrial Description | 10GS-10FFORX |
| Part Terminology | Hydraulic Coupling / Adapter |
