| Length | 25 |
| Inside Diameter | 1 |
| Cover Color | Black |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Material | Synthetic Rubber - Neoprene - Type A |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Outside Diameter | 1.5 |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Fiber Braids |
| Temperature Rating | Oil Lines: -40 Deg. F to +275 Deg. F (Constant), up to +300 Deg. F (Intermittent) |
| Maximum Working Pressure | 565 |
| Burst Pressure | 2260 |
| Color | Black |
| Minimum Bend Radius (in) | 8 |
| Type | Hydraulic Hose |
| Vacuum (inHg) | 20 |
| Hose Inside Diameter (in) | 1 |
| Hose Outside Diameter (in) | 1.5 |
| Hose Pressure Description | Medium Pressure |
| Reinforcement | Two Fiber Braids |
| Coupling Recommendation | GLX |

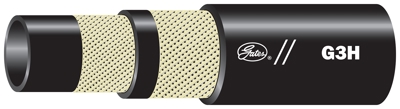

| Product Type | G3H High-Temp 2-Fiber Braid Hose - SAE 100R3 |
| Temperature Range | Oil Lines: -40 Deg. F to +275 Deg. F (Constant), up to +300 Deg. F (Intermittent) |
| Maximum Working Pressure (psi) | 565 |
| Minimum Burst Pressure (psi) | 2260 |
| Outside Diameter (In) | 1.5 |
| Industrial Description | 16G3HX25FT |
| Inside Diameter (in) | 1 |
| Tube Material | Nitrile - Type C |
| Heavy Duty Supplier | Yes |
| ISO Specification | N/A |
| EN Specification | N/A |
| Dash Size | 16 |
| SAE Specification | 100R3 |
| Tube Description | Black, Synthetic Rubber |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Hose |
