| Burst Pressure | 20000 |
| Dash Size | 6 |
| EN Specification | 853 2SN |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .375 |
| Coupling Recommendation | GlobalSpiral, MegaCrimp |
| Inside Diameter | .375 |
| Minimum Burst Pressure (psi) | 20000 |
| Cover Material | Thin Synthetic Rubber - CSM - Type M |
| Reinforcement | Two Braids, High-Tensile Steel Wire |
| Maximum Working Pressure (psi) | 5000 |
| ISO Specification | 1436 2SN R2 |
| Hose Material | CPE - Type J |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 6G2XHX50FT |
| Cover Color | Blue |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Inside Diameter (in) | .375 |
| Minimum Bend Radius (in) | 5 |
| Maximum Working Pressure | 5000 |
| Color | Blue |
| Material | Thin Synthetic Rubber - CSM - Type M |
| Tube Description | Black, Oil & Chemical-Resistant, Synthetic Rubber |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Type | Hydraulic Hose |
| Tube Material | CPE - Type J |
| Hose Outside Diameter (in) | .74 |
| Length | 50 |

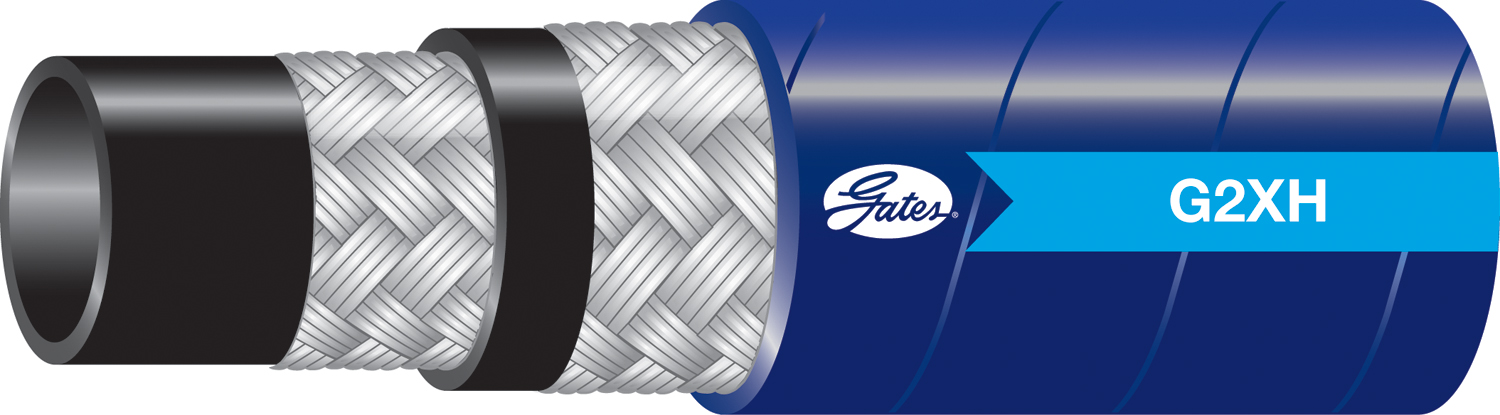

| Product Type | Global G2XH 2-Wire Braid Xtreme Heat Hose - SAE 100R2 Type S |
| Outside Diameter (In) | .74 |
| SAE Specification | 100R2 |
| Temperature Range | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Hose Pressure Description | High Pressure |
| Cover Type | Oil, Abrasion & Flame Resistant |
| Outside Diameter | .74 |
| Part Terminology | Hydraulic Hose |
