| Burst Pressure | 11000 |
| EN Specification | N/A |
| Dash Size | 4 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .25 |
| Coupling Recommendation | MegaCrimp |
| Inside Diameter | .25 |
| Minimum Burst Pressure (psi) | 11000 |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Reinforcement | Synthetic Fiber (Except -2) |
| Maximum Working Pressure (psi) | 2750 |
| ISO Specification | N/A |
| Hose Material | Nylon |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 4TH7NCX50FT |
| Cover Color | Orange |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Minimum Bend Radius (in) | 1.5 |
| Inside Diameter (in) | .25 |
| Maximum Working Pressure | 2750 |
| Color | Orange |
| Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Tube Description | Nylon |
| Reinforcement Material | Synthetic Fiber (Except -2) |
| Type | Thermoplastic Hydraulic Hose |
| Tube Material | Nylon |
| Hose Outside Diameter (in) | .5 |
| Length | 50 |

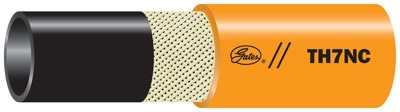

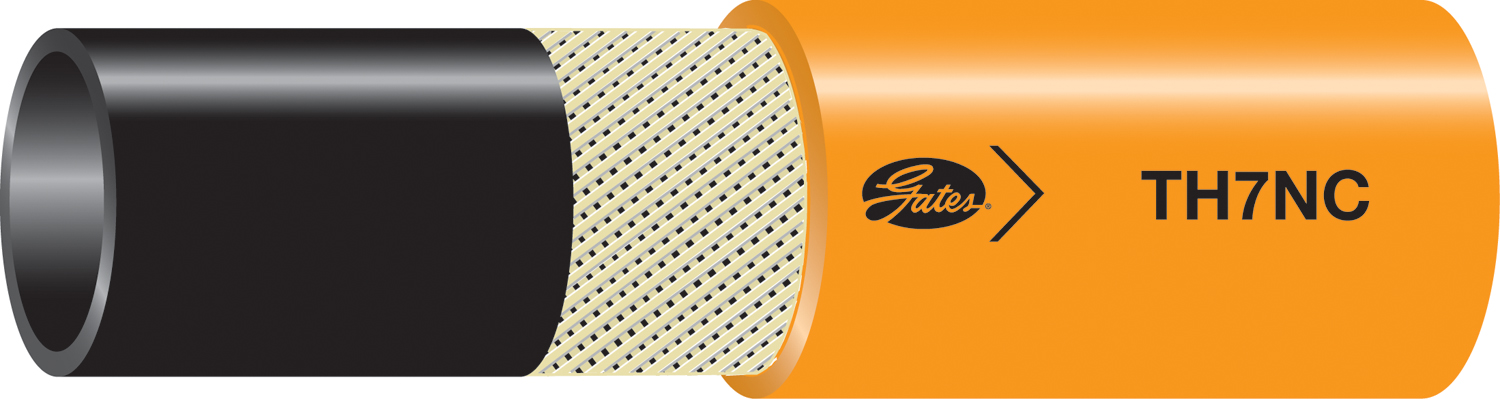

| Product Type | TH7NC Non-Conductive Hydraulic Hose - SAE 100R7 |
| Outside Diameter (In) | .5 |
| SAE Specification | 100R7 |
| Temperature Range | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Hose Pressure Description | Medium Pressure |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Outside Diameter | .5 |
| Part Terminology | Hydraulic Hose |
