| Burst Pressure | 1000 |
| EN Specification | N/A |
| Dash Size | 10 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .625 |
| Coupling Recommendation | GLP, MegaCrimp |
| Dispensing Type | Reel |
| Inside Diameter | .625 |
| Minimum Burst Pressure (psi) | 1000 |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Reinforcement | One Braid of High-Tensile Steel Wire |
| Maximum Working Pressure (psi) | 250 |
| ISO Specification | N/A |
| Hose Material | CPE - Type J |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 10MEGATECH 250XREEL |
| Cover Color | Black |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Minimum Bend Radius (in) | 3 |
| Inside Diameter (in) | .625 |
| Maximum Working Pressure | 250 |
| Color | Black |
| Vacuum (inHg) | 30 |
| Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Tube Description | Black Tube Specifically Compounded for Temperature & Chemical Resistance |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Type | Fleet Application & Maintenance Hose |
| Tube Material | CPE - Type J |
| Hose Outside Diameter (in) | .93 |
| Length | 300 |

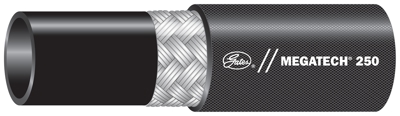

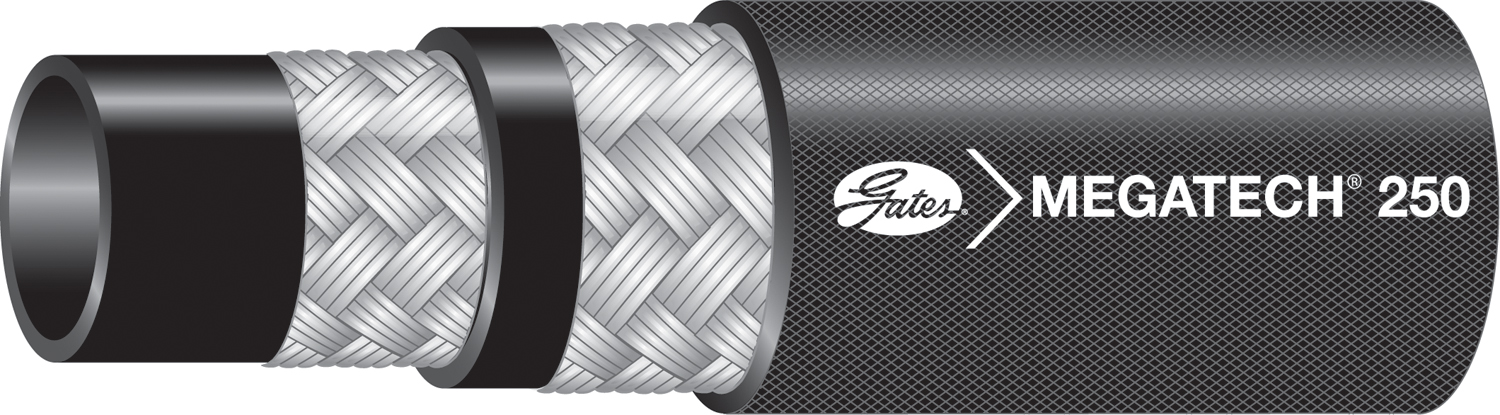

| Product Type | MegaTech 250 High-Temp Transmission Oil Cooler (TOC) Hose |
| SAE Specification | N/A |
| Outside Diameter (In) | .93 |
| Temperature Range | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Hose Pressure Description | Low Pressure |
| Cover Type | Oil & Mildew Resistant |
| Outside Diameter | .93 |
| Part Terminology | Hydraulic Hose |
