| Burst Pressure | 24000 |
| Dash Size | 20 |
| EN Specification | 856 4SH |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1.25 |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Inside Diameter | 1.25 |
| Minimum Burst Pressure (psi) | 24000 |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Reinforcement | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Maximum Working Pressure (psi) | 6000 |
| ISO Specification | N/A |
| Hose Material | Nitrile - Type C |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 20EFG6KXCTN |
| Cover Color | Black |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Minimum Bend Radius (in) | 8.2 |
| Inside Diameter (in) | 1.25 |
| Maximum Working Pressure | 6000 |
| Color | Black |
| Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Reinforcement Material | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Type | Hydraulic Hose |
| Tube Material | Nitrile - Type C |
| Hose Outside Diameter (in) | 1.97 |
| Length | 50 |

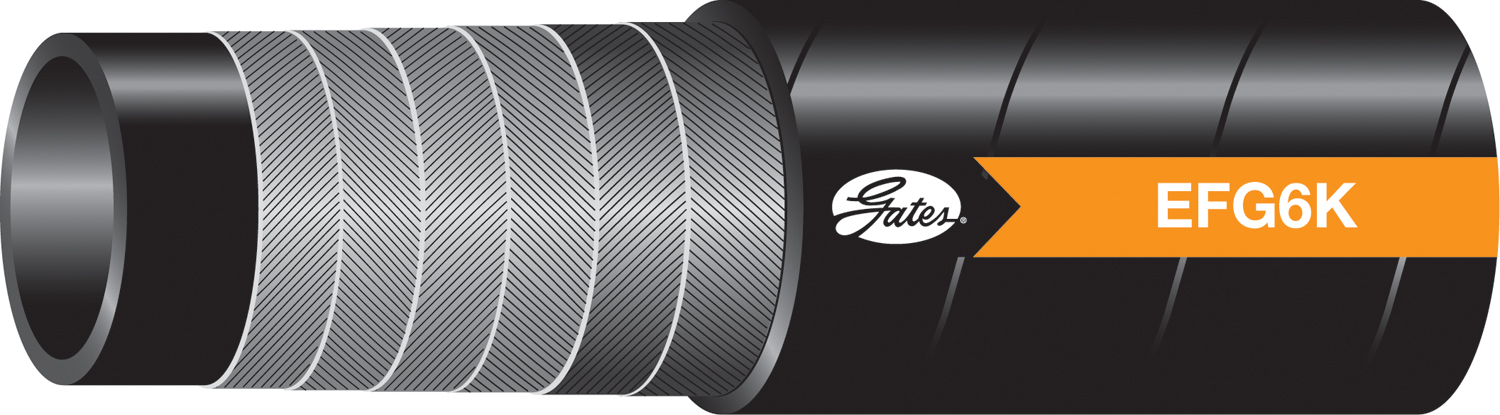

| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Outside Diameter (In) | 1.97 |
| SAE Specification | 100R15 |
| Temperature Range | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Hose Pressure Description | Extremely High Pressure |
| Cover Type | Type A - Flame & Oil Resistant |
| Outside Diameter | 1.97 |
| Part Terminology | Hydraulic Hose |
