| Pulley Diameter MM | 139.7 |
| Heavy Duty Supplier | Yes |
| Compatible Refrigerant Oil Type | PAG 150 |
| Pulley Ridge Diameter | 5.500 |
| Switch / Sensor Desc | High Pressure |
| O-Ring C Number/Desc | N/A |
| O-Ring C Quantity | N/A |
| Mounting Hardware? | Not Included |
| Ctch Dia. MM Prmy | 139.700 |
| Pulley Diameter IN | 5.500 |
| Clutch Included | Included |
| Switch Included | No |
| Pulley Belt Type | Serpentine |
| Compressor Type | GM |
| Terminal Type | Pin |
| Oil Type | PAG 150 |
| Mounting Type | Type VI (2-1/2 Ears) |
| Connector Shape | 8mm Pin Connector |
| Pulley Lip Diameter | 5.500 |
| Suc Prt Typ Note | R134A - V |
| Coil Number | [48257] / Clutch Assembly |
| Distance From Clutch To Mounting Flange | 0.59 |
| Clutch Pulley Diameter | 5.500 |
| O-Ring B Number/Desc | N/A |
| Groove | 6 |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| O-Ring A Number/Desc | 24354 / Sealing Washer |
| Pulley Groove Quantity | 6 |
| Coil Clock Position | 2 |
| Harness Connector | [37215] / Harness Connector |
| Distance Between Mounting Holes | 0.59 |
| Description | Compressors - New |
| New or Reman | New |
| Belt Type | Serpentine |
| Mount Type | Type VI (2-1/2 Ears) |
| Connector Type | pin |
| Style | Piston |
| Outside Pulley Diameter | 5.500 |
| O-Ring A Quantity | 2 |
| Oil Filled | Included |
| Mount Distance IN | 0.59 |
| Coil Clock | 2 |
| Switch Type | Pressure Switch |
| Mounting Hardware Included | No |
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 5.500 |
| O-Ring B Quantity | N/A |
| Type | GM |
| Electronic Control Valve | No |
| Coil Voltage | 12 |
| Suction Port Type | Sealing Washer |
| Model | HD6 |

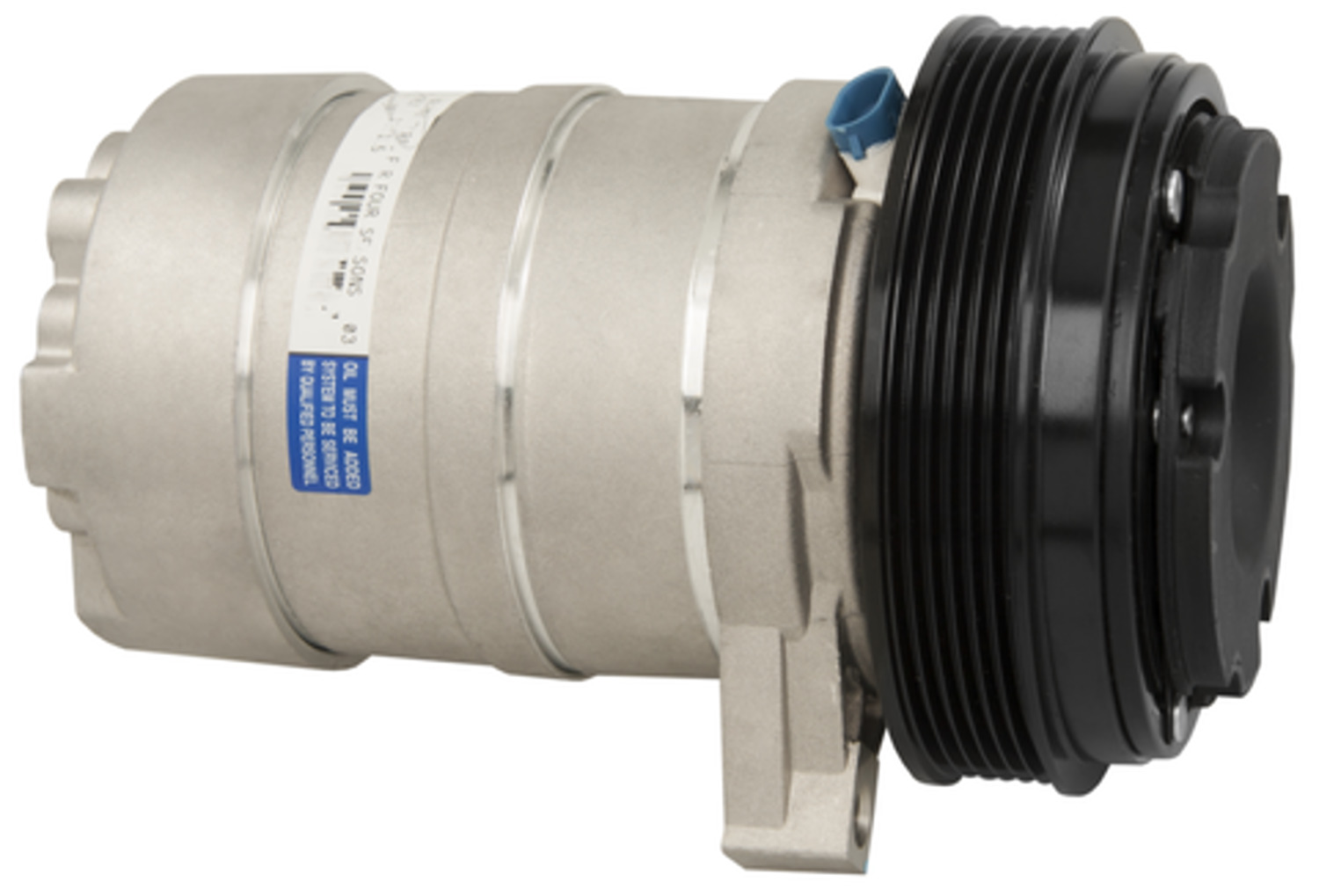

| Part Terminology | A/C Compressor |
