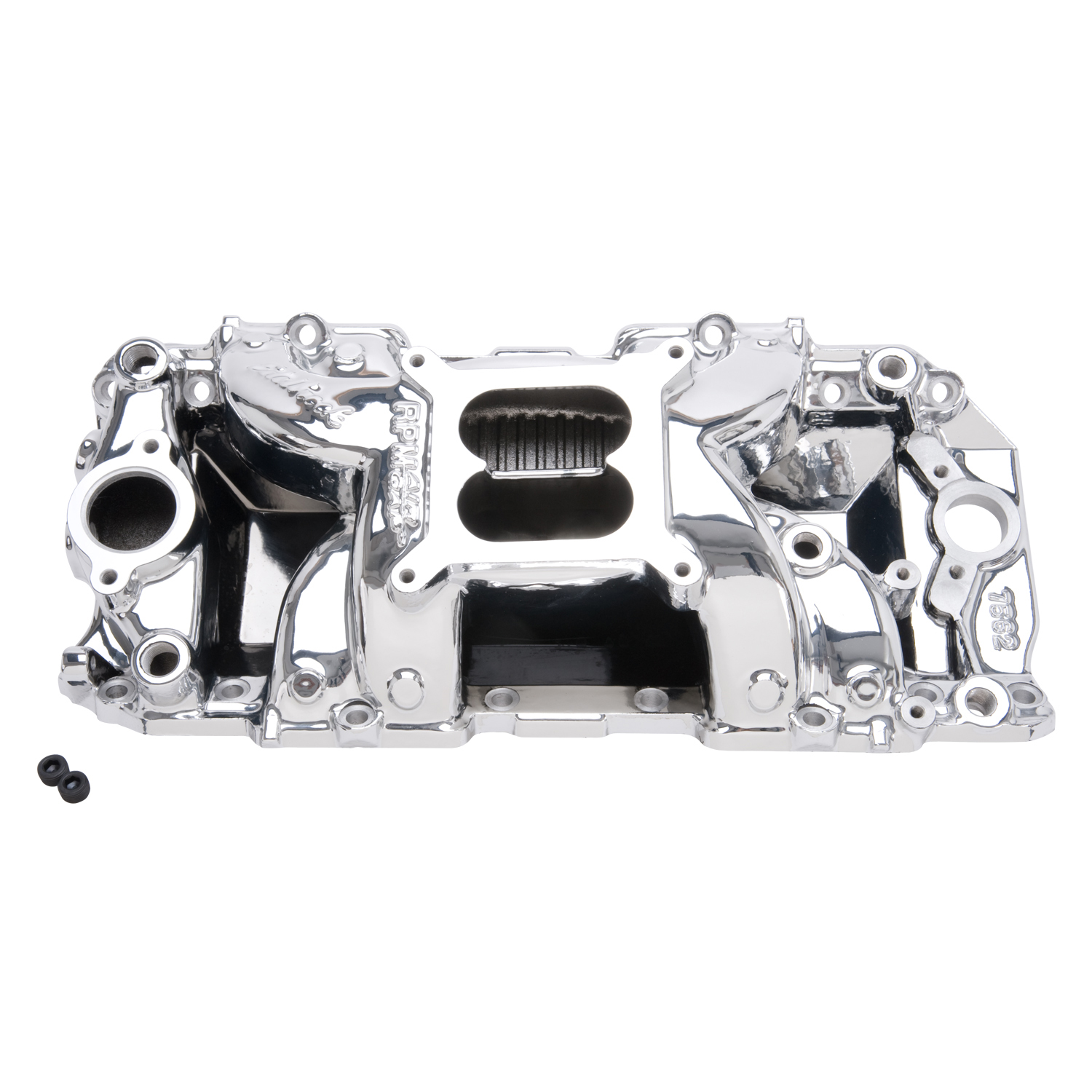

RPM Air-Gap Big Block Chevy 2-R Endurashine Intake Manifold
Part # 75624 | Line Code: EDE
Edelbrock
Edelbrock

$589.99
$589.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Center Maximum Height 5.220
CNC Ported No
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Gasket Or Seal Included No
Material Aluminum
Single Or Dual Plane Type Dual Plane
Rear Maximum Height 6.000
Finish EnduraShine
Front Maximum Height 4.450
Grade Type Performance
Part Terminology Engine Intake Manifold

Features & Benefits
expand_more
Edelbrock part #75624 RPM Air-Gap 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power. This intake manifold is a dual-plane, high-rise design with a 180 degree firing order to produce incredible top-end horsepower while retaining good throttle response. The larger plenum and runners match the free-flowing exhaust, high-lift cams and other modifications of a high output engine. They are intended for high-performance's street or competition engines that run up to 6500 rpm. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square-bore carbs only. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.

Application Summary
expand_more

Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L)
