Preset EFI Return-Style Fuel System - 67gph/255 lph (58 psi)
Part # 3653 | Line Code: EDE
Edelbrock
Edelbrock

$517.99
$517.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Fuel Pump Included Yes
Regulator Included Yes
Quantity Kit
Mounting Hardware Included Yes
Pressure Rating 58
Maximum Horsepower 600 Supported
Maximum Flow Rating 67 GPH/255 LPH
Filter Included Yes
Mounting Bracket Included Yes
Type Return Style
Hose Length 20
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Fittings Included Yes
Hose Included Yes
Part Terminology Fuel Injection Fuel Feed and Return Pipe Assembly

Features & Benefits
expand_more

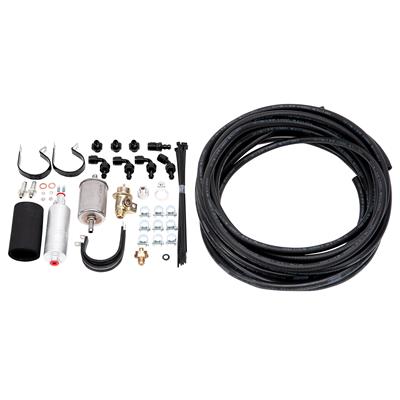

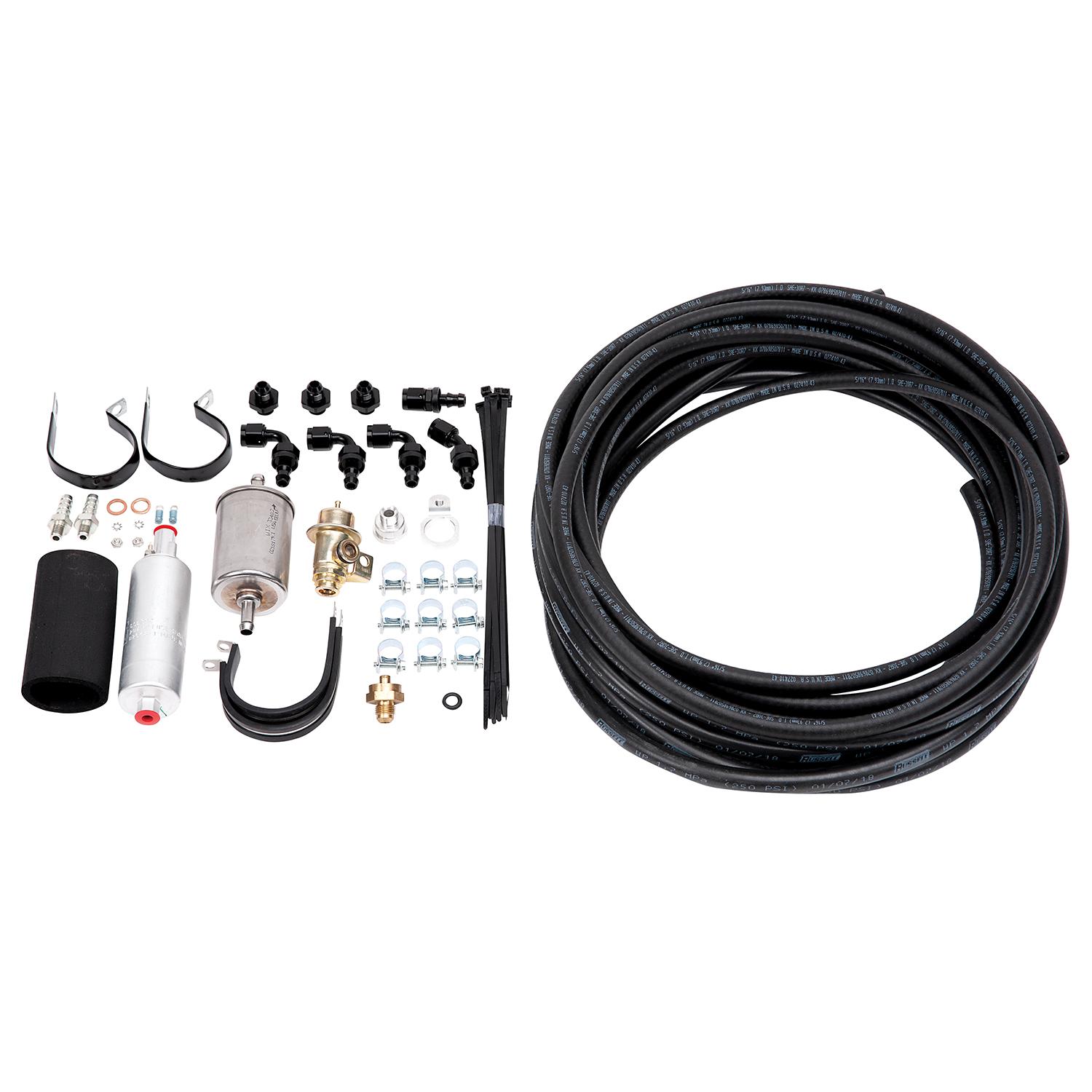

Edelbrock Preset Return-Style EFI Fuel Kit #3653 includes everything needed to upgrade a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. Kit includes a 67 GPH (215 liter/hr) fuel pump, 58 PSI preset regulator, filter, Russell Twist-Lok hose, hose ends, mounting brackets and hardware. A baffled fuel tank is recommend to prevent fuel starvation. This system is rated for engines up to 600 HP, when used with an Edelbrock EFI system.
