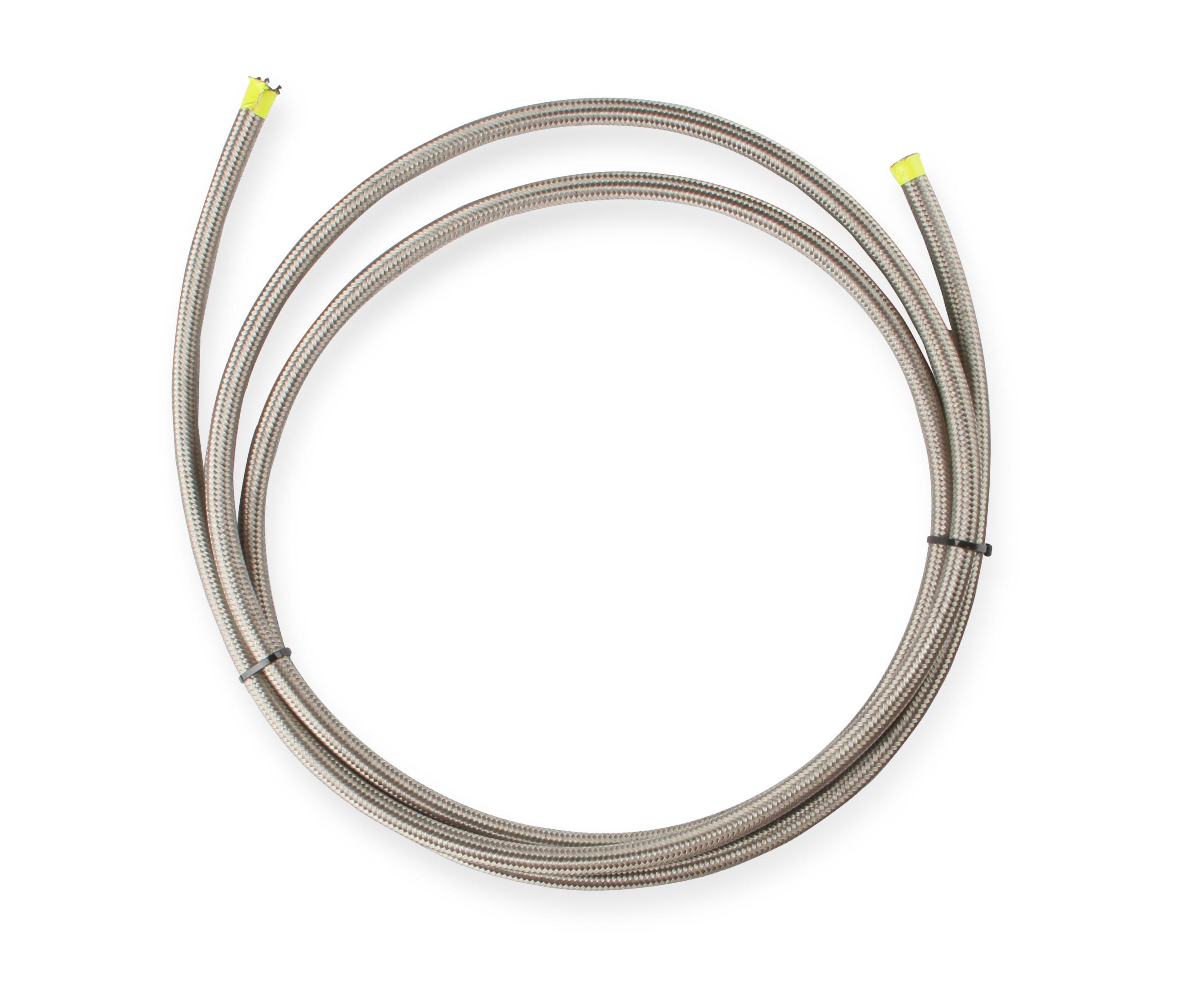

Earl's Auto-Flex Hose - Size 8 - 10 Ft. Length
Part # 310008ERL | Line Code: EAR
Earl's Performance
Earl's Performance

$110.99
$110.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Warning California Proposition 65
Hose Outer Material Stainless Steel
Category Air and Fuel Delivery
Min. Bend Radius 3.5"
Hose Family Auto-Flex
Fluid Type Coolant
Compatible Hose Ends Auto-Crimp
I.D. to O.D. Concentricity Range .020"
Submersible in Fuel No
Fluid Type Rating - Pump Gas 2 out of 5 Rating
Max Working Psi 1000 PSI
Inside Diameter .415" TO .471"
Fluid Type Rating - Methanol/Alcohol 1 out of 5 Rating
Fluid Type Rating - Race Gas 3 out of 5 Rating
Part Type Fuel Hose
Fluid Type Rating - Automatic Transmission Fluid 5 out of 5 Rating
Fluid Type Rating - Oil 5 out of 5 Rating
Fluid Type Rating - Vacuum 5 out of 5 Rating
Emission Code 5
Fluid Type Rating - Coolant 5 out of 5 Rating
Max Vacuum 27 in Hg
Brand Earl's
Fluid Type Rating - E85 2 out of 5 Rating
Hose Length 10 Feet
Product Type Hose
Fluid Type Rating - Diesel 2 out of 5 Rating
Sub Category Fuel Storage
Temperature Range -40° to 350° F
Hose Size 8 AN
Outside Diameter .629" TO .672"
Part Terminology Fuel Hose

Features & Benefits
expand_more
A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.
