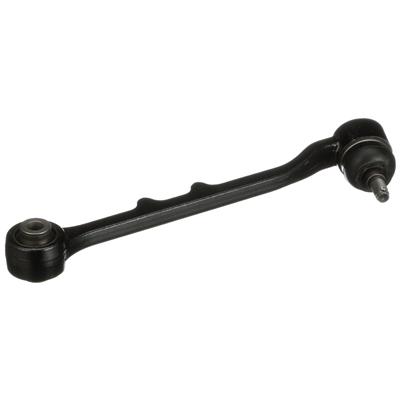

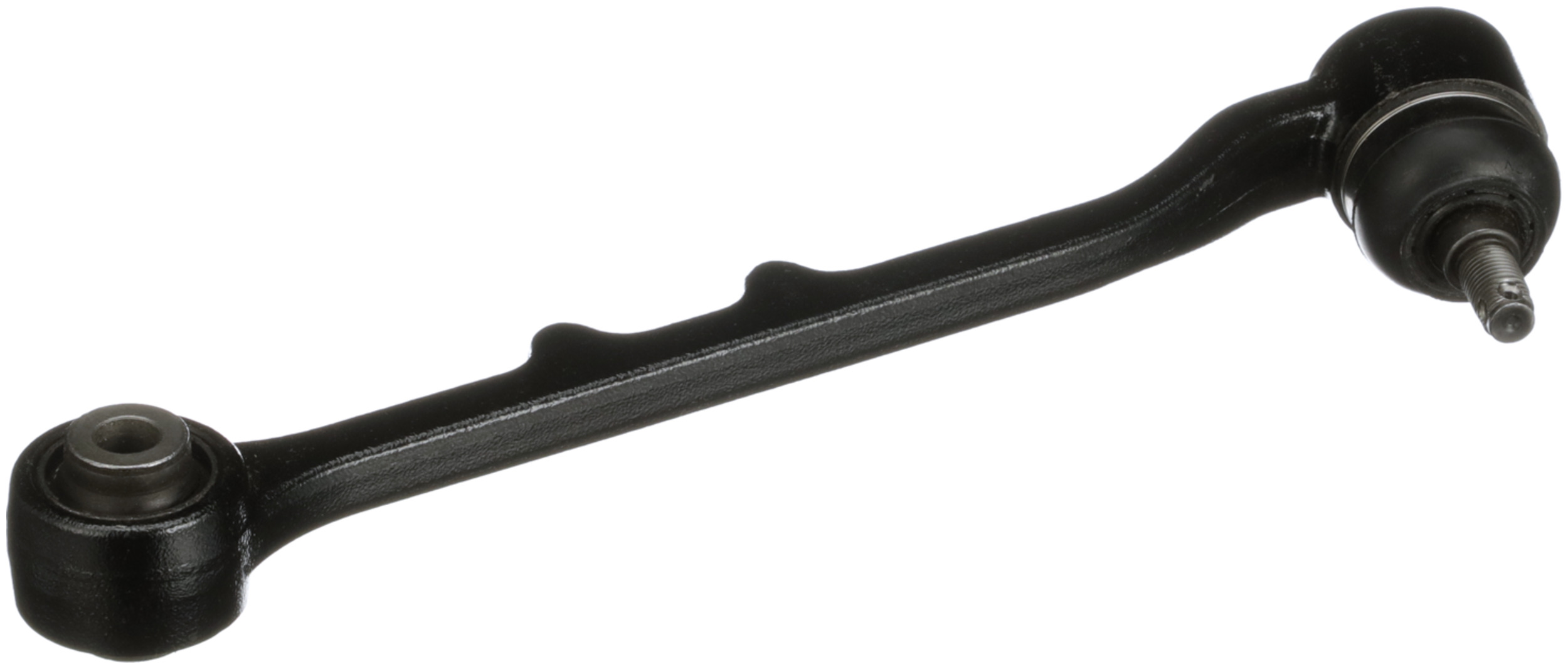

Control Arm and Ball Joint Assembly
Part # TC7143 | Line Code: DFI
brandNameImage
brandNameImage

$507.99
$507.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Control Arm Material Steel
Steering Type Power
Finish Painted
Bearing Material Plastic
Bushing Color Black
Bushing Material Rubber
Thread Size 12
Ball Joint Thread Diameter 0.472
Control Arm Type Casting/Forged
Thread Direction Clockwise (Right)
Adjustable No
Pre Greased Yes
Grease Fitting Included No
Bushings Included Yes
Dust Boot Yes
Ball Joint Mounting Type Press In
Ball Joint Stud Type Threaded
Ball Joint Included Yes
Grade Type Premium
Locking Nut Included Yes
Greasable No
Boot Color Black
Mounting Hardware Included Yes
Bushing Inside Diameter 0.480
Boot Material Chloroprene rubber (CR)
Thread Diameter 0.472
Control Arm Color Black
Ball Joint Stud Length 62.50
Bushing Length 44.00
Item Grade Standard Replacement
Heavy Duty Supplier Yes
Position(s) Rear Right Lower Forward
California Proposition 65 WARNING: This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more infor
Part Terminology Suspension Control Arm and Ball Joint Assembly

Features & Benefits
expand_more
Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
