| Power Rating | 4.1 |
| Pinion Offset | Yes |
| Housing Material | Steel |
| Heavy Duty Supplier | Yes |
| Tooth Quantity | 10 |
| Pinion Pitch | 8/10 |
| Solenoid Attached | Yes |
| Duty Type | Heavy Duty |
| Design | Planetary Gear Reduction |
| Pinion Teeth | 10 |
| Pinion Dia | 40 mm |
| Case Grounding | Grounded Case |
| Voltage | 12.0 |
| Solenoid Position | 315 |
| Polarity | Grounded |
| Package Contents: | Starter, Instruction Sheet |
| System Voltage | 12 |
| Mounting Bolt Hole Quantity | 3 |
| Over Crank Protection | No |
| SAE Mounting Type | SAE 1 |
| Nose Cone Material | Cast Aluminum |
| Starter Rotation | Clockwise |
| Mounting Type | Flange |
| Rotation | CW |
| Re Clockable Flange | No |
| Mounting Flange to Pinion End at Rest | 47.75 |
| Type | New |
| Model | 31MT |
| Family | 31MT |
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer. |
| Nose Cone Type | Open Nose |
| Mounting Flange to End of Case | 236.0 |

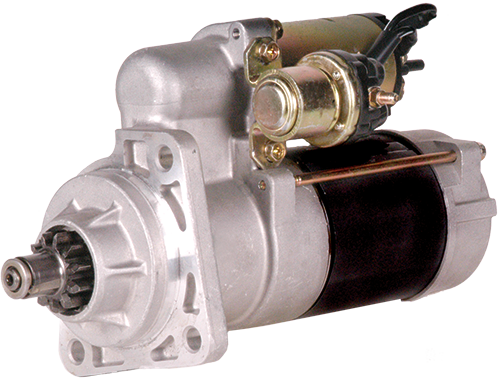

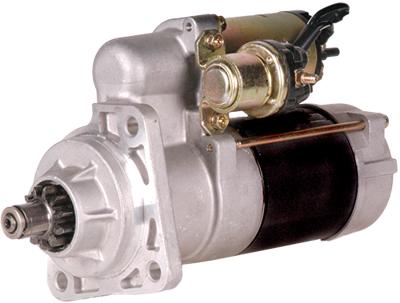

| Part Terminology | Starter |
