Timing Parts & Camshafts

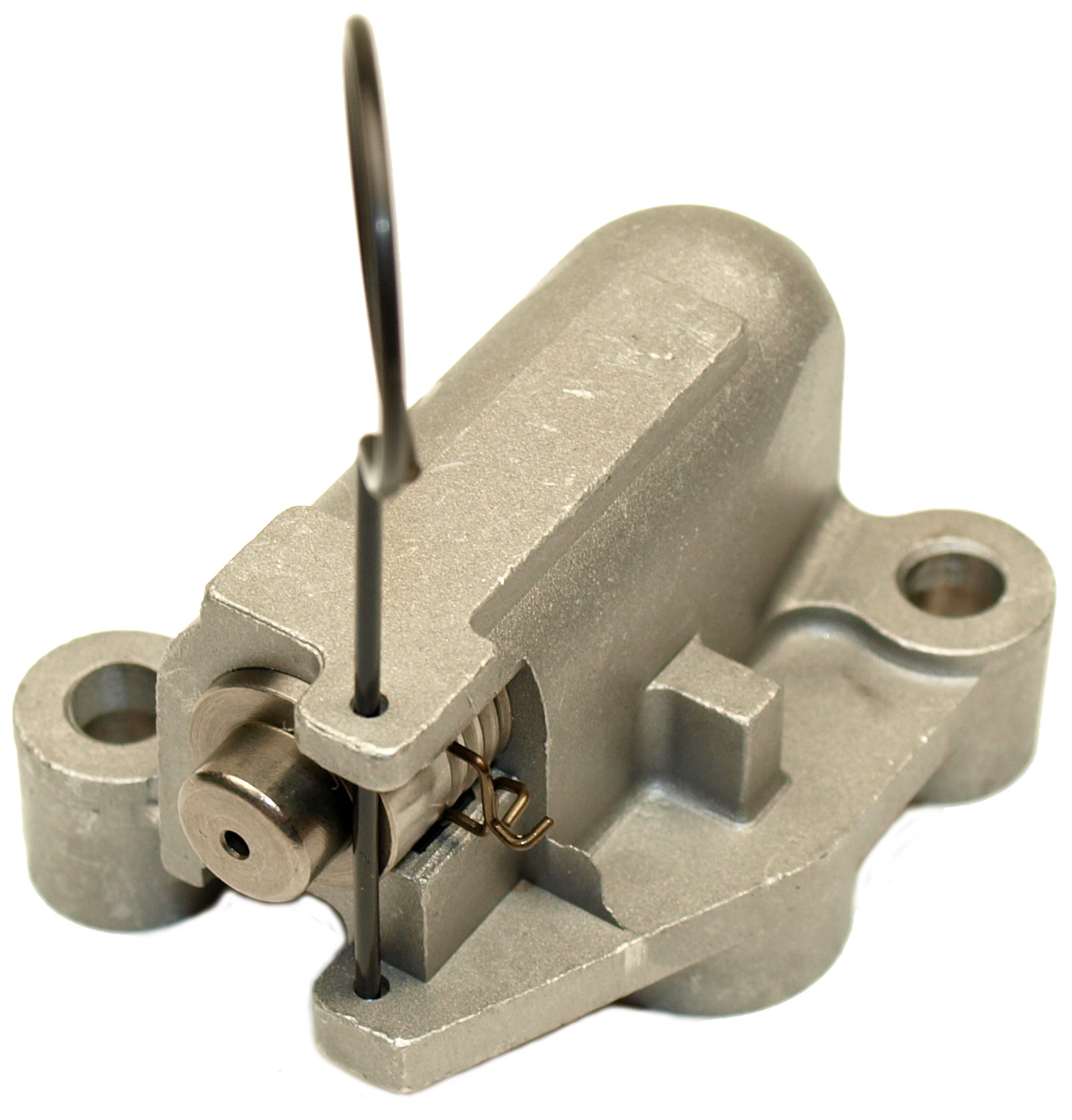

Engine Timing Chain Tensioner
Part # 9-5689 | Line Code: CLY
brandNameImage
brandNameImage

$52.99
$52.99
error
Not Fitted
Shipping

Product Details
expand_less
Height 1.51"
Width 2.12"
Length 2.55"
Mount Hole Inside Diameter 0.264"/0.265"
Activation Type Activation Pin
Mounting Hole Quantity 2
Housing Material Aluminum
Adjustable No
Bolts Included No
Spring Included Yes
Material Aluminum
Mounting Bracket Included No
Tensioner Type Hydraulic and Spring
Mount Hole Quantity 2
Hardware Included No
Mounting Hardware Included No
Shoe Included No
Width (uom:in) 2.12"
Length (uom:in) 2.55"
Mount Hole Diameter 0.264"/0.265"
Color Gray
Gasket Or Seal Included No
Mounting Hole Diameter (uom:mm) 6.7056, 6.731
Mounting Hole Diameter (uom:in) 0.265
Part Terminology Engine Timing Chain Tensioner

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems, delivering premium-quality solutions. A timing chain tensioner maintains appropriate tension in the timing chain. Depending on design and application, Cloyes engine timing chain tensioners can use spring tension or hydraulic pressure to properly tension the chain for optimal performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
