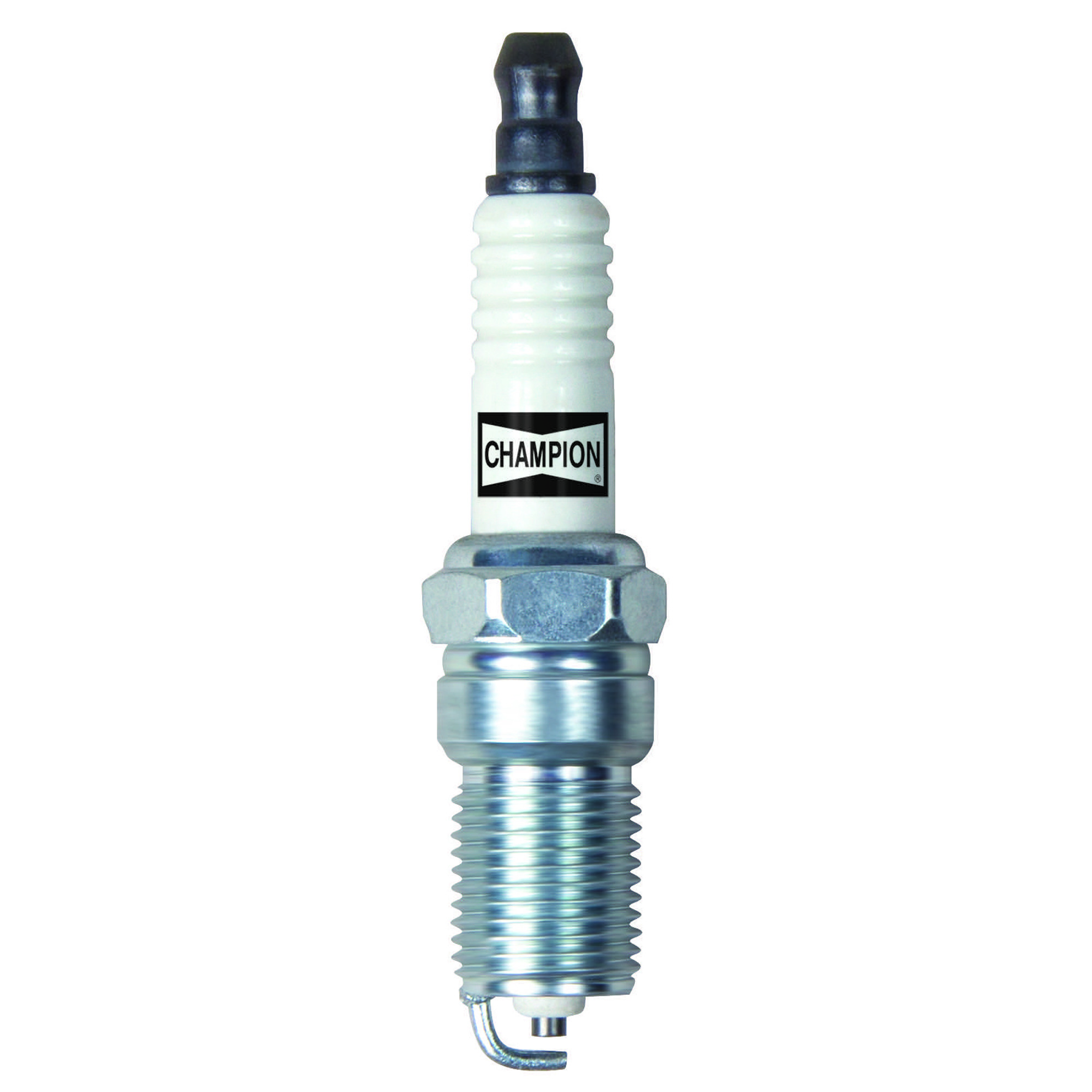

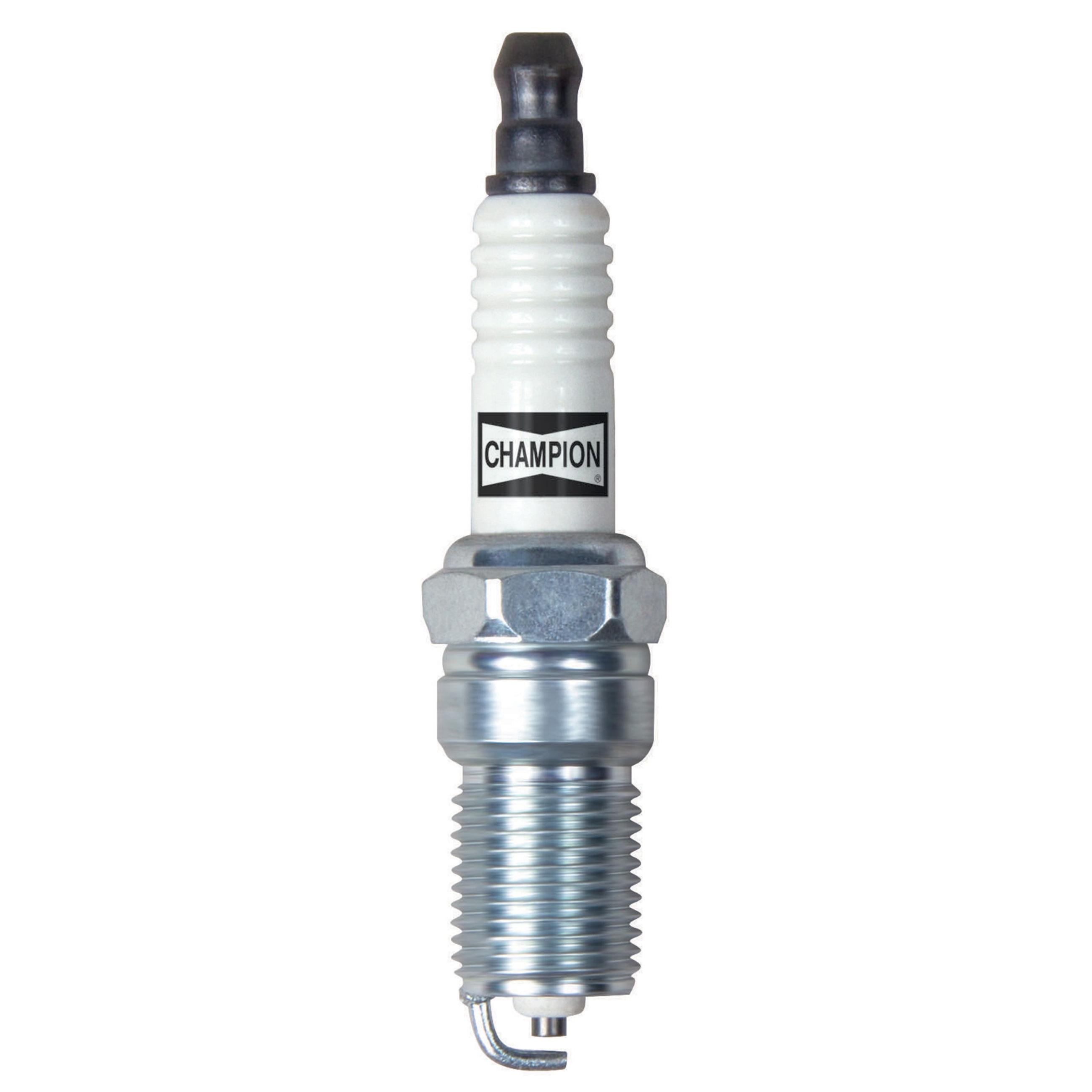

| Part Description | Spark Plug |
| Reach | 0.689 |
| Ground Electrode Quantity | 1 |
| Thread Diameter | 0.551 |
| Electrical Terminal Type | Removable Nut |
| Plug Type | RS12YC |
| Washer Included | No |
| Installed Height (Inch) | 2.05 |
| Insulator Projection (Inch) | 0.06 |
| Center Electrode Diameter (Inch) | 0.078 |
| Subject to Prop 65 (Yes/No) | NO |
| Gap Size | 1.02 |
| Ground Electrode Material | Nickel Copper Alloy |
| Taper Diameter (Inch) | 0.25 |
| Seat Type | Tapered |
| Insulator Height | 0.06 |
| Center Electrode Tip Material | Copper |
| Classification | Champion Copper Plus |
| Ground Electrode Core Material | Nickel Copper Alloy |
| Resistor Type | Yes |
| Alliance Keywords | spark plug, bougie d'allumage, bougie |
| Manufacturer Heat Range | 12 |
| Grade Type | Premium |
| Hex Size | 0.625 |
| Part Terminology | Spark Plug |
