| Thread Pitch to Wheel Mounting | 1.5 |
| Product Grade [cntrc] | Premium |
| Mounting Thread Size | M12 |
| Heavy Duty Supplier | Yes |
| Attribute ID (Type) | California Proposition 65 |
| Wheel Pilot Diameter | 2.522 |
| Bolt Circle Diameter MM | 120.65 |
| Inner Mount Pilot [cntrc] in | 3.496 |
| Mounting Thread Pitch [cntrc] mm | 1.250 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 14.000 |
| Thread Pitch to Wheel Mounting [cntrc] mm | 1.500 |
| Bolt Circle Diameter in | 4.750 |
| Bolt Circle Diameter [cntrc] in | 4.750 |
| Off-Set [cntrc] in | 46.890 |
| Bolt Circle Diameter [cntrc] mm | 120.650 |
| Brake Pilot Diameter | 2.759 |
| Off-Set [cntrc] mm | 1.846 |
| Notes [cntrc] | 2 Retaining Holes M6-1.0; Inner Magnetic ABS Encoder Seal |
| Spline Quantity | 30 |
| Wheel Studs Included | Yes |
| Mounting Thread Pitch | 1.25 |
| Mouting Thread Size [cntrc] mm | 12.000 |
| Off-Set (inch) | 46.89 |
| Inner Mount Pilot [cntrc] mm | 88.800 |
| Flange Diameter | 151.790 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm |
| Mounting Hole Qty [cntrc] | 4 |

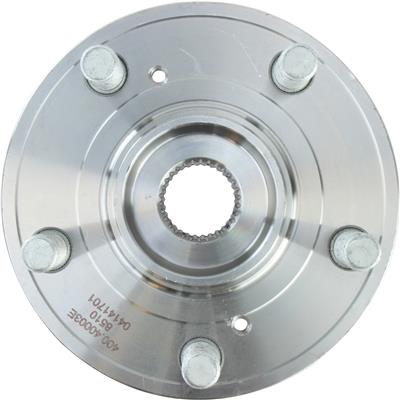

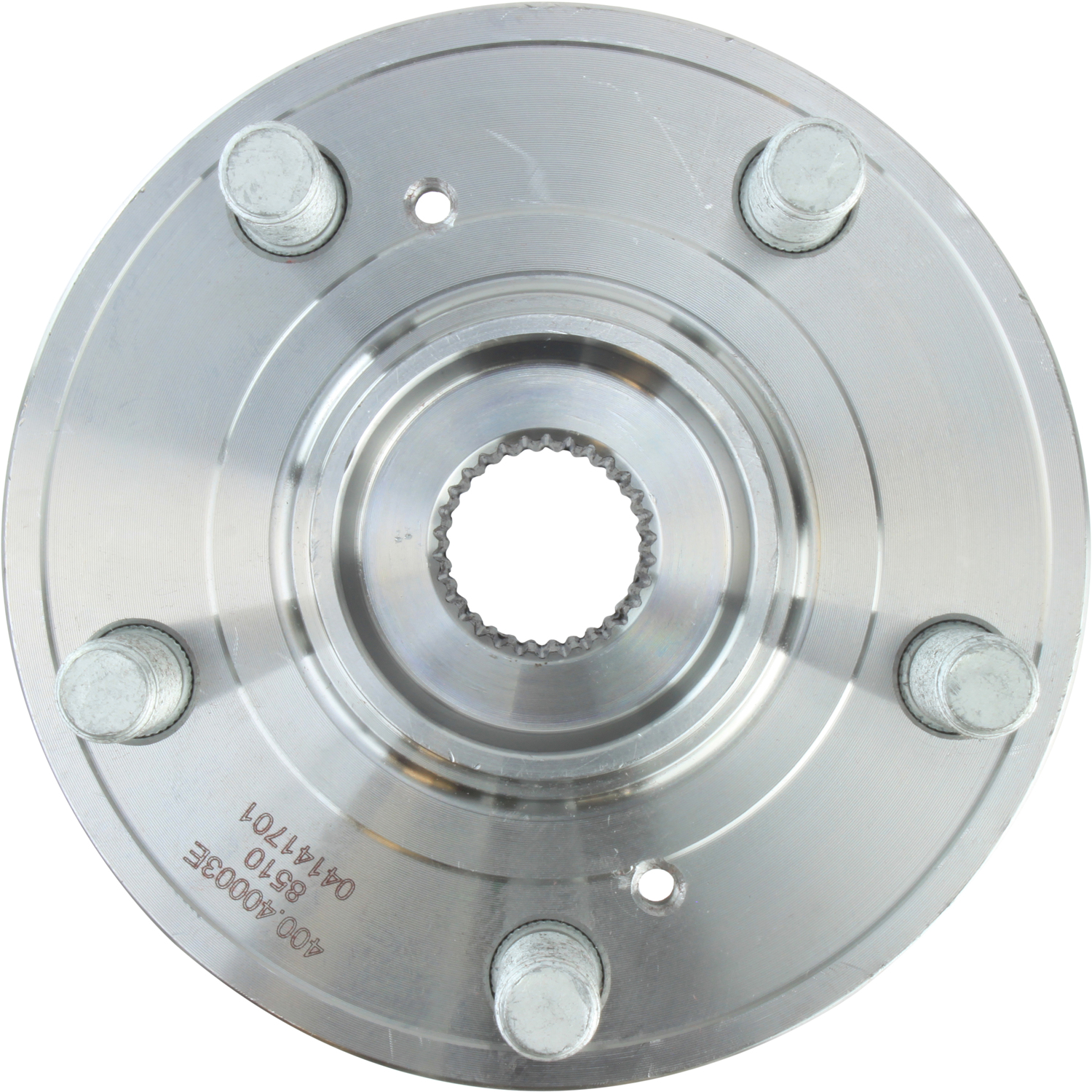

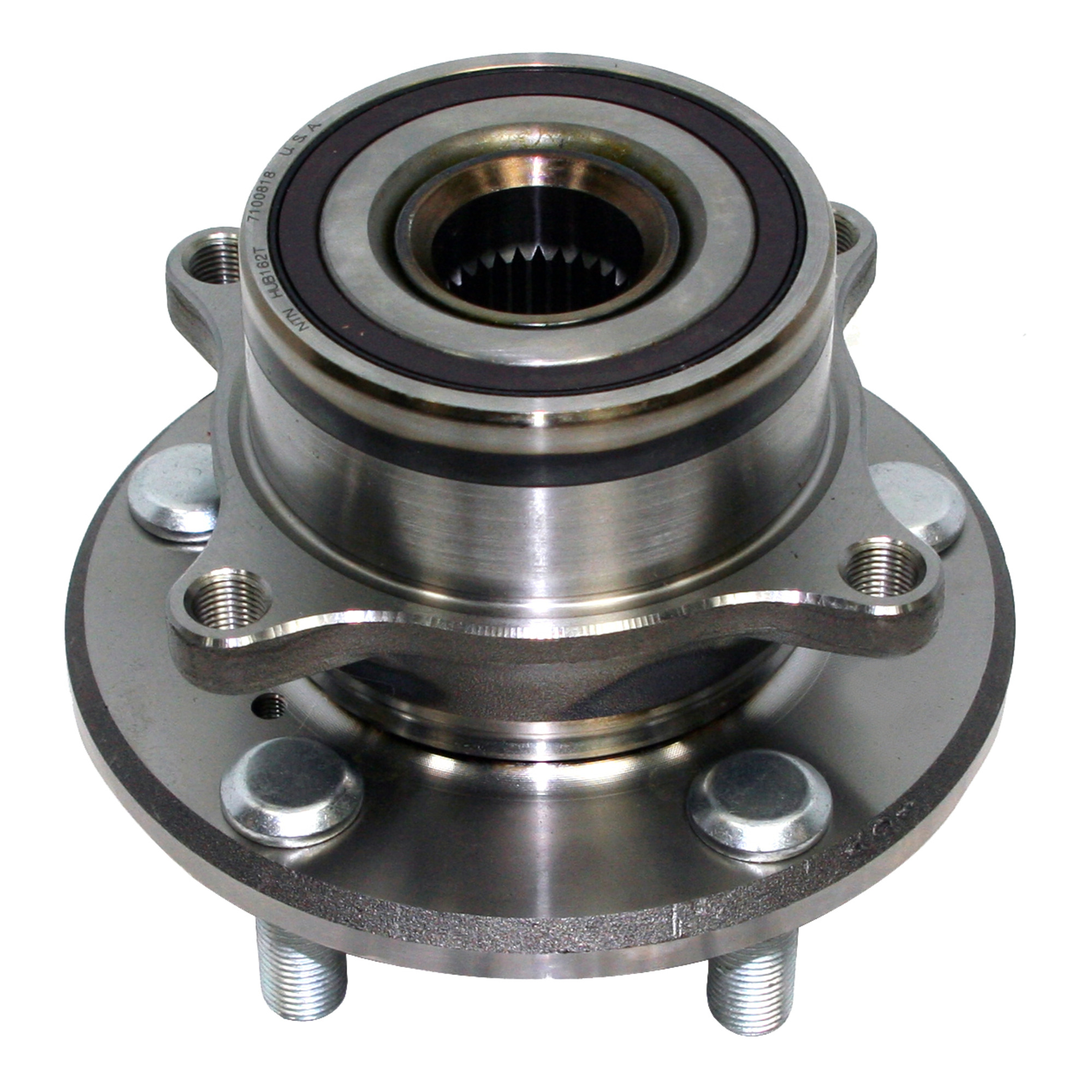

| Part Terminology | Wheel Bearing and Hub Assembly |
