Product Details
expand_less
| Overall Height |
3.504 |
| ABS Sensor Ring Included |
Yes |
| Product Grade [cntrc] |
Premium |
| Discard Thickness |
1.320 |
| Heavy Duty Supplier |
Yes |
| Attribute ID (Type) |
California Proposition 65 |
| California Proposition 65 Text [basic] |
WARNING: Cancer and Reproductive Harm |
| Duty Type |
Heavy Duty |
| Misc Holes [cntrc] |
0 |
| Height |
89.0 |
| California Proposition 65 Site [basic] |
https://www.p65warnings.ca.gov/ |
| Weight [cntrc] lbs |
37.000 |
| Mounting Bolt Hole Quantity |
5 |
| Vane Style |
Straight |
| Disc Mounting [cntrc] |
Behind the Hub |
| Notes [cntrc] |
Hat Shaped, Cast in ABS Ring |
| Vane Style [cntrc] |
Straight |
| Weight [cntrc] kgs |
16.820 |
| Solid Or Vented Type Rotor |
Vented |
| Hat Finish |
Painted |
| Mounting Type |
Behind the Hub |
| Bolt Circle Diameter |
171.5 |
| California Proposition 65 Text [cntrc] |
WARNING: Cancer and Reproductive Harm |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm |
| Surface Type |
Smooth |
| Outside Diameter |
15.000 |
| Hub Hole/Whl Reg mm |
137 |
| Nominal Thickness |
1.437 |

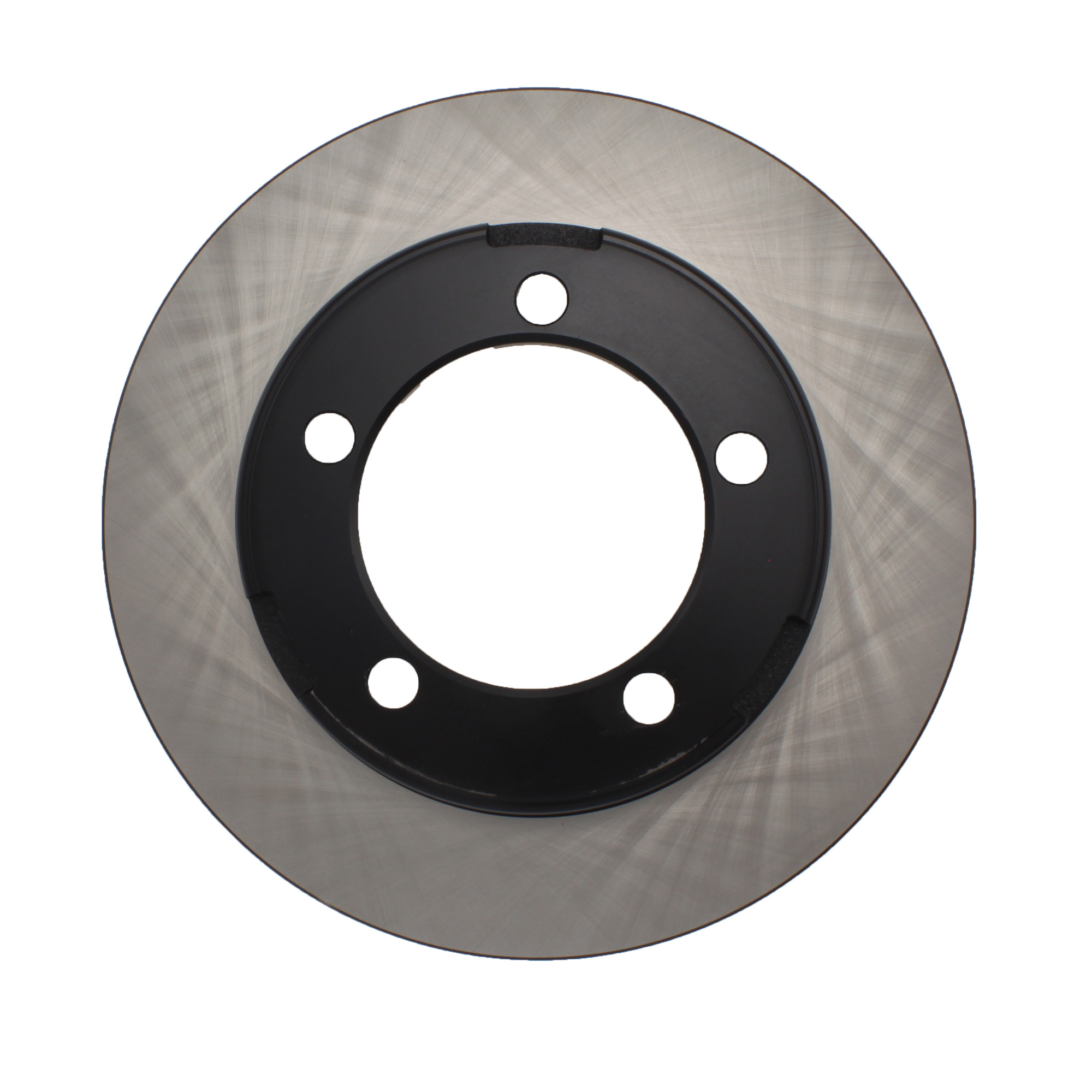

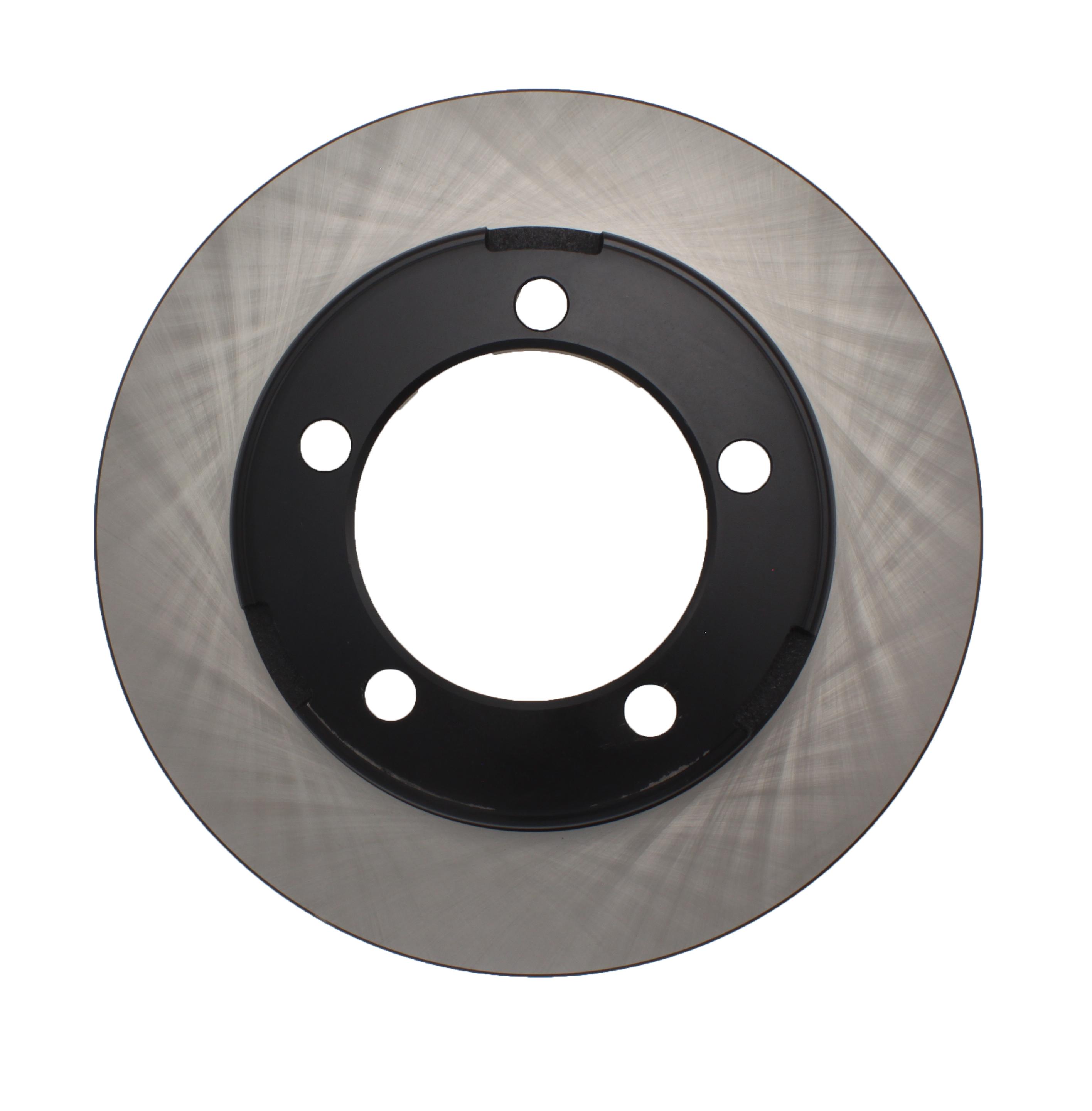

| Part Terminology |
Disc Brake Rotor |
Features & Benefits
expand_more
Centric Premium™ rotors provide a painted hat and edge for corrosion resistance. The paint used is a robust resin-modified material that is chemically resilient withstanding 120 hours in salt chamber testing.
Application Summary
expand_more
Blue Bird All American FE 2015-2003, SHL TC2000 2003-1993, TC1000 2000-1997, TC2000 2004-1989, Fleetwood Bounder 2010, Bounder Classic 2010, Bounder Classic 2013, Ford F650 2008-2004, F750 2008-2004, Freightliner B2 2020-2005, FS65 2008-1996, M2 100 2006-2002, M2 106 2020-2003, MB60 1994-1992, MB70 1994-1992, MCL 2011, MCL 2014, MC Line 2001, MC Line 2019-2005, IC Corporation BE Commercial Bus 2008, BE School Bus 2009-2008, CE Commercial 2008-2003, CE Integrated 2009-2005, CE School Bus 2004-2003, HC Integrated Commercial 2009-2007, RE Commercial 2009-2003, RE School Bus 2009-2003, International 1452SC 1992-1987, 1652SC 2006-1986, 1652UPS 1991-1990, 1652UPS 1993, 1652UPS 1997-1995, 1654 1989-1983, 1724 1985-1979, 1754 1989-1979, 1824 1984-1983, 1854 1989-1983, 1924 S 1982-1979, 1925 S 1982-1979, 1954 1982-1979, 1955 1982-1979, 2276 S 1986-1983, 2375 S 1986-1983, 3000 2002-1998, 3000FE 1999-1998, 3000IC 2002-2000, 3000RE 2002-1996, 3000RE 2005, 3200 2009-2002, 3300 2009-2005, 3400 2002-1998, 3600 1993-1992, 3600 1999-1998, 3600 2002-2001, 3700 1993-1990, 3800 1993-1990, 3800 2004-1998, 3900FC 1993-1991, 4100 2009-2006, 4100 SBA 2008-2006, 4200 2009-2002, 4200LP 2007-2003, 4300 2009-2002, 4300LP 2009-2002, 4400 2009-2002, 4400LP 2009-2002, 4600 1995-1990, 4600LP 1994-1990, 4600UH 1990, 4700 2005-1990, 4700 2008, 4700LP 2002-1990, 4700LPX 2002-1995, 4800 2003-1990, 4900 2005-1990, 7100 1995-1990, Cargostar 1986-1983, F1924 1981-1979, F1954 1982-1979, F1954 1989-1986, Genesis RE 2002-1998, M1400 Metro II 1990-1987, M1600 Metro II 1990-1987, MXT 2009-2007, RXT 2008-2006, S1624 1982-1980, S1654 1989-1984, S1654LP 1989-1988, S1723 1985-1980, S1724 1984-1980, S1753 1989-1984, S1754 1989-1981, S1824 1985-1983, S1853 1989-1983, S1853FC 1989-1987, S1854 1989-1983, S1924 1982-1980, S1925 1982-1980, S1954 1989-1981, S1955 1989-1981, S2125 1981-1980, S2155 1989-1984, S2375 1984, S2375 1986, S2524 1982-1980, S2554 1989-1981, Kenworth T170 2016-2008, T270 2016-2008, T300 2008-1999
