Product Details
expand_less
| Housing Material |
POM |
| Outlet Quantity |
1 |
| Inlet Type |
Strainer |
| Strainer Included |
Yes |
| Filter Included |
No |
| Flow Rate |
20 |
| Terminal Gender |
Male |
| Connector Color |
White |
| Resistance Ohms Empty |
40.0 |
| Inlet Outside Diameter |
N/A |
| Inlet Quantity |
1 |
| Fuel Filter Included |
No |
| Connector Quantity |
1 |
| Wire Harness Included |
Yes |
| Outlet Outside Diameter |
9.49 |
| Universal Or Specific Fit |
Specific |
| Resistance Ohms Full |
250.0 |
| Installation Warnings |
No |
| Gasket Or Seal Included |
Yes |
| Terminal Type |
Blade |
| Regulator Included |
No |
| Lock Ring Included |
No |
| Connector Shape |
Oval |
| Pump Type |
Electric |
| Housing Length |
10.12 |
| Top Mount Diameter |
103.0 |
| Wiring Harness Length |
445.0 |
| California Proposition 65 |
No Proposition 65 warning is required with this product. |
| Outlet Type |
Hose Connection |
| Negative Ground |
Yes |
| Wiring Harness Included |
Yes |
| Internal Or External |
Internal |
| Wire Quantity |
4 |
| Fuel Type |
Gas |
| Gasket Included |
Y |
| Minimum Flow Rating |
20 |
| Voltage |
12v |
| Minimum Free Flow Rate |
19.81 |
| Height |
357 |
| Fuel Sending Unit Included |
Yes |
| Terminal Quantity |
4 |
| Outlet Fitting Thread Size |
3/8 |
| Internal Or External Strainer |
Internal |
| Connector Gender |
Female |
| In Tank or External |
In |
| Mounting Hardware Included |
No |
| Housing Width |
3.7 |
| Gasket Or Seal Material |
Nitrile Rubber |
| Length |
357.0 |
| Inlet Fitting Thread Size |
3/8 |
| Outlet Thread Diameter |
N/A |
| Minimum Pressure |
60.0 |
| Grade Type |
Regular |
| Maximum Pressure |
123.28 |
| Part Terminology |

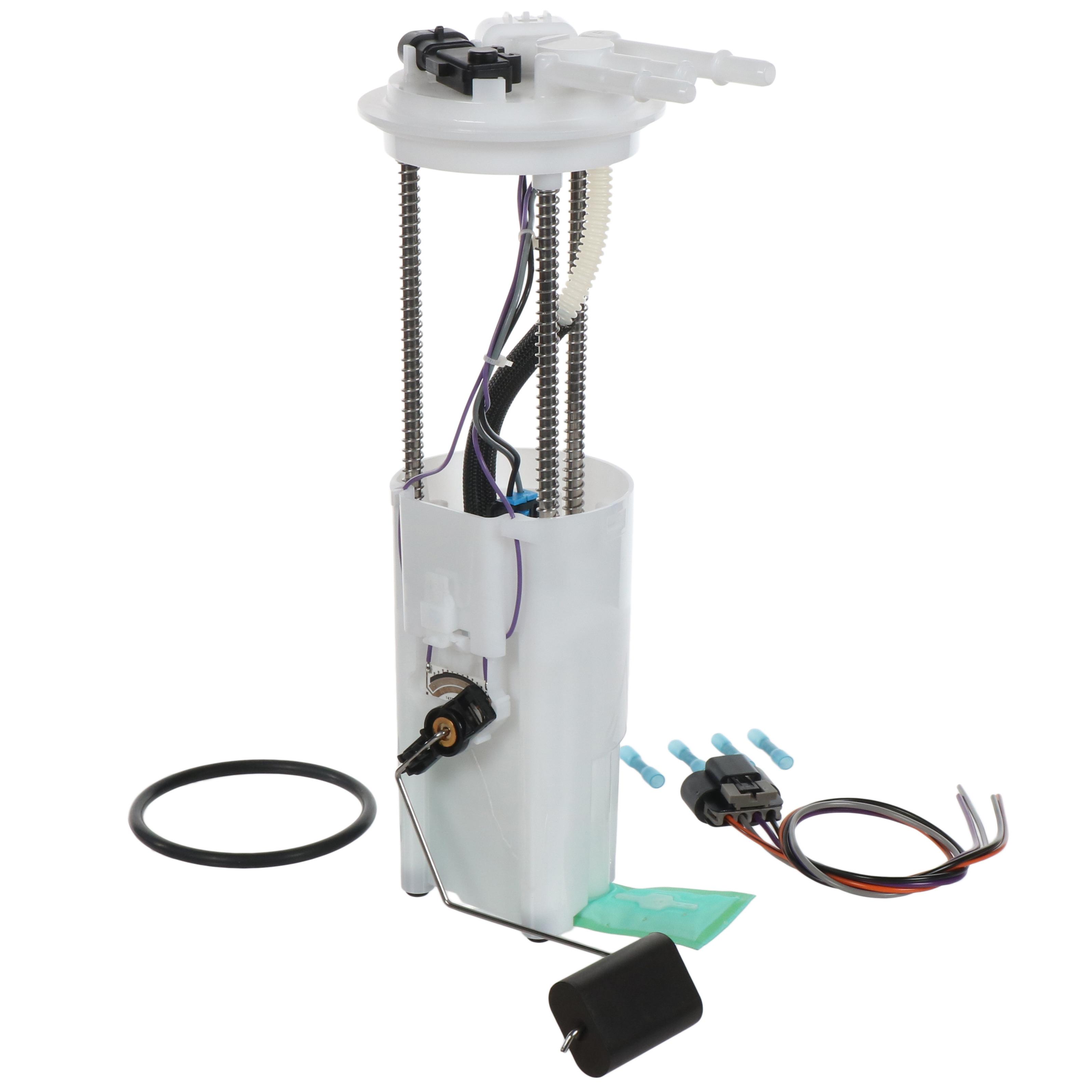

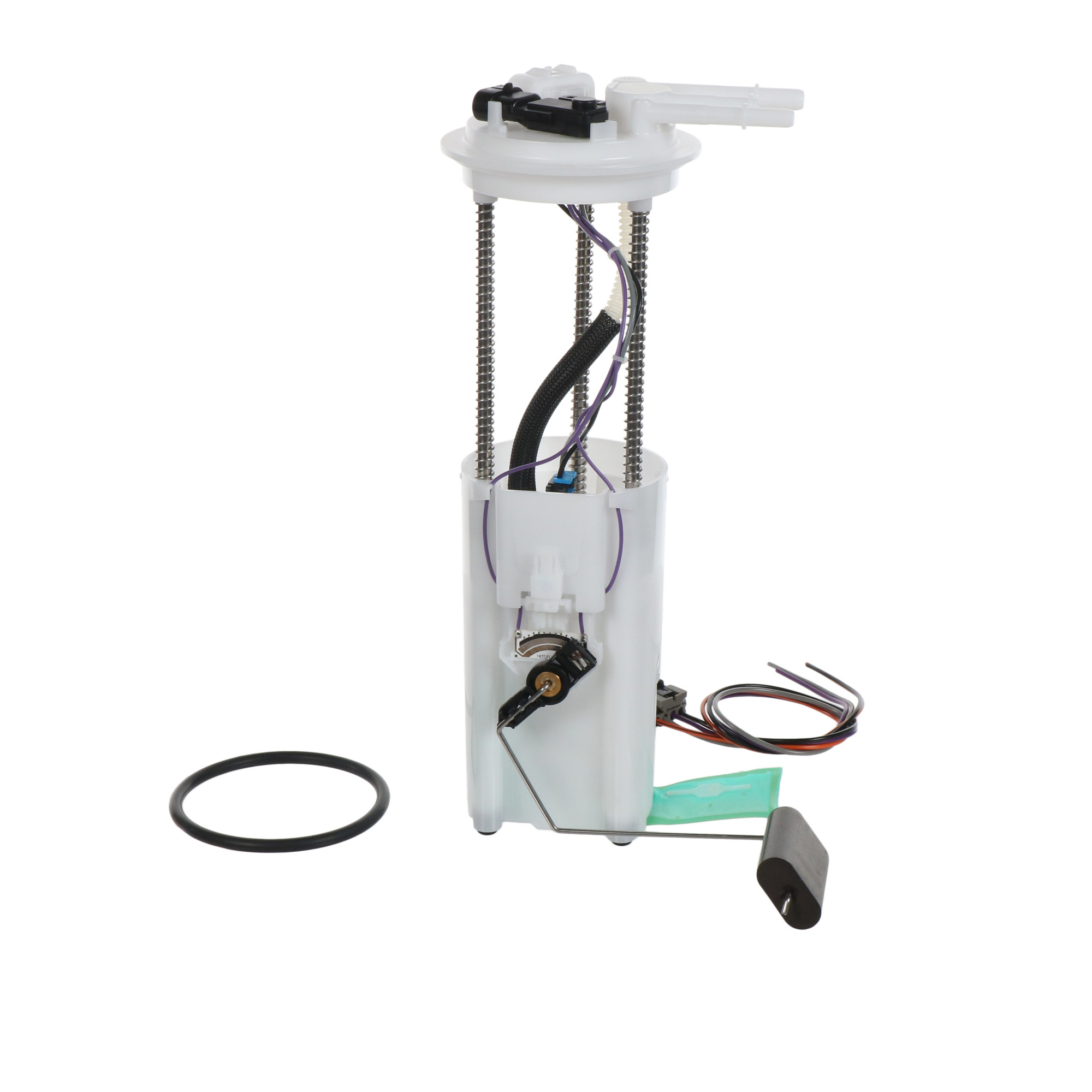

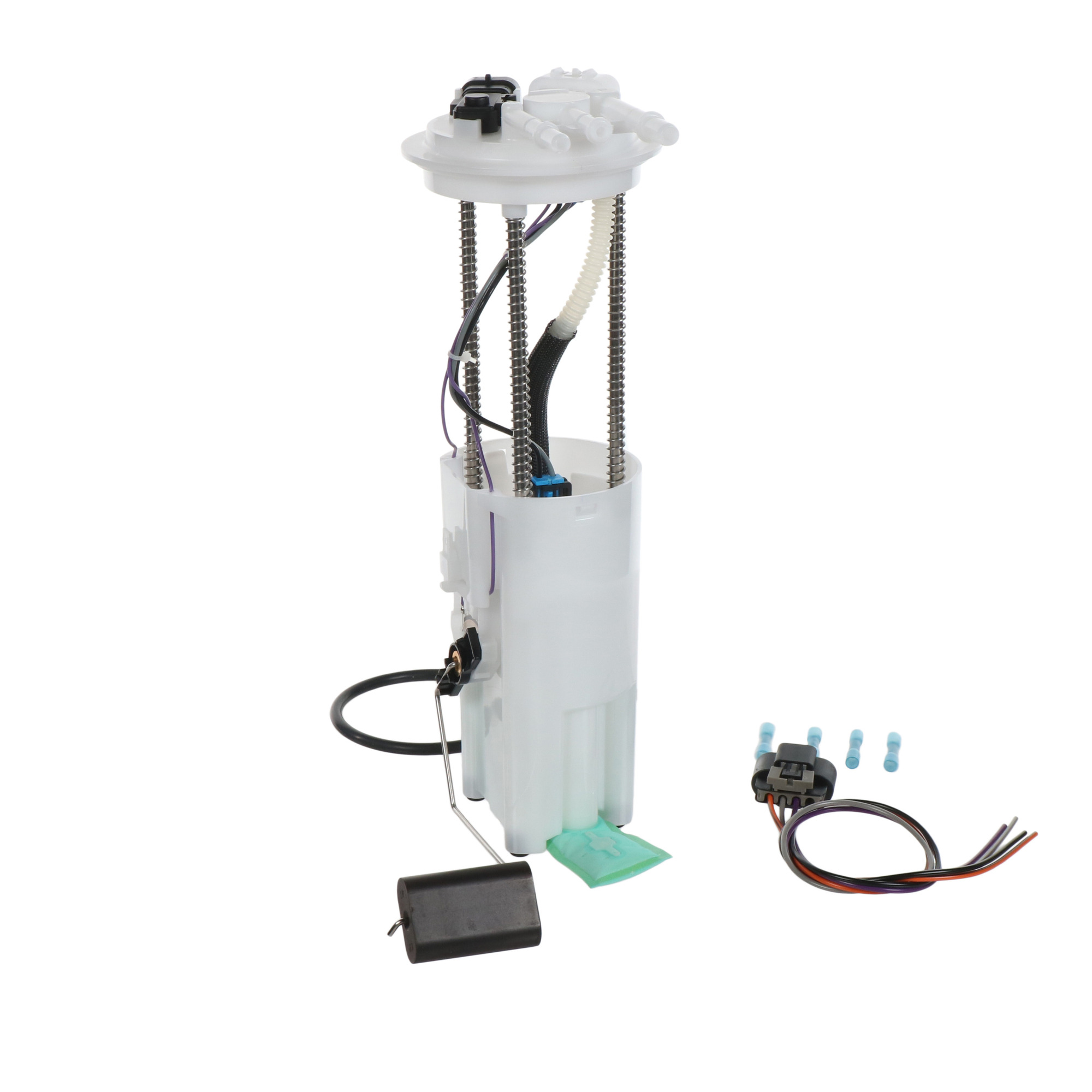

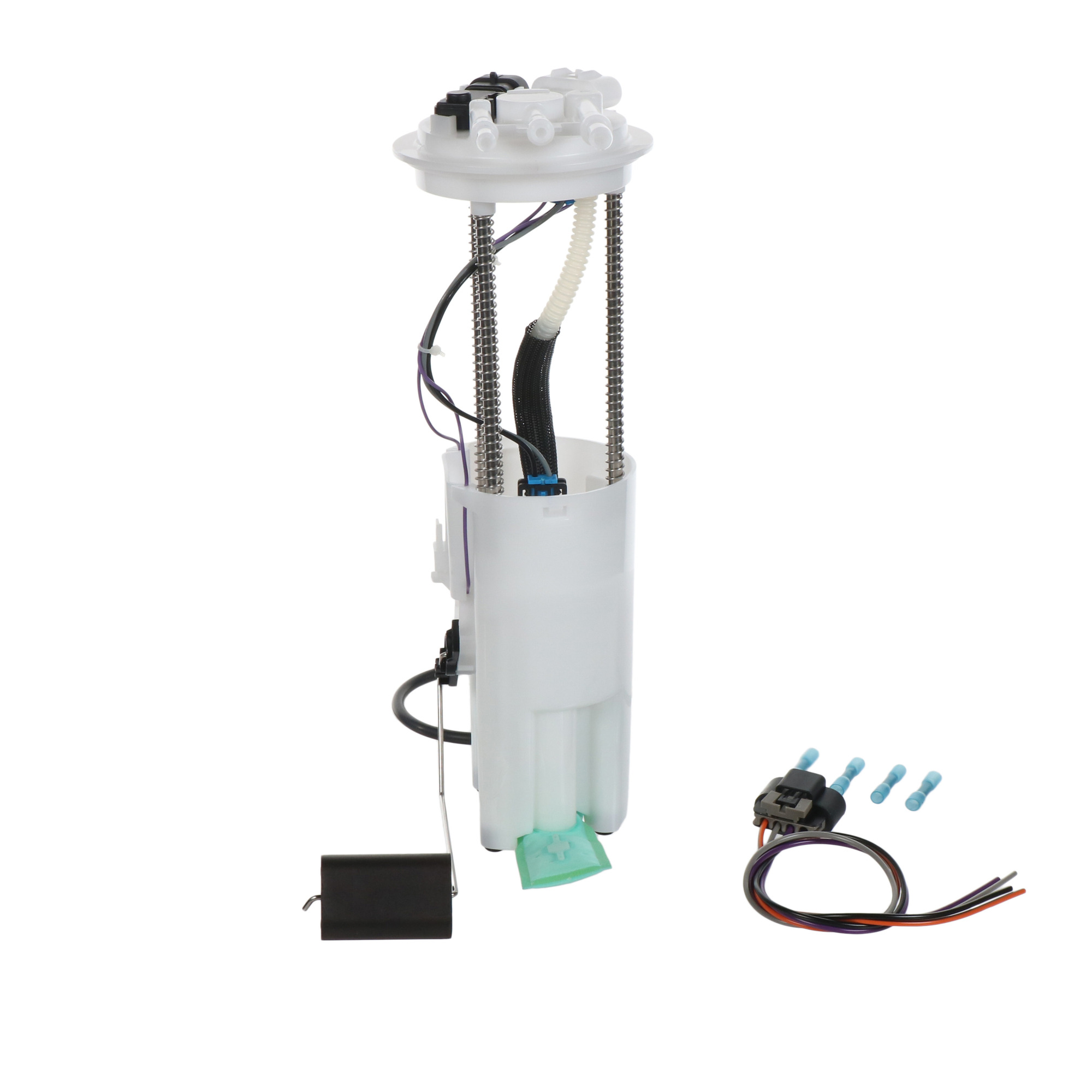

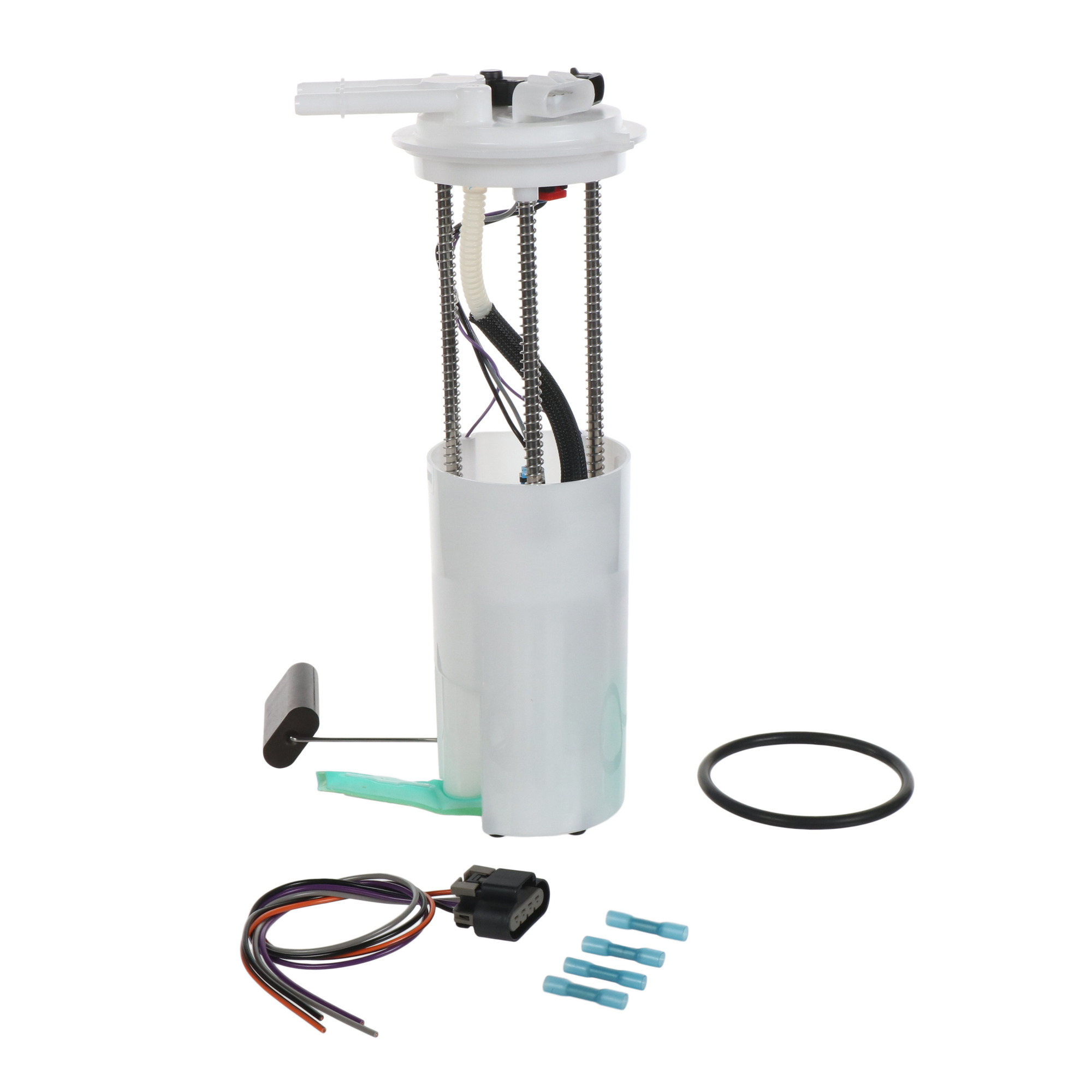

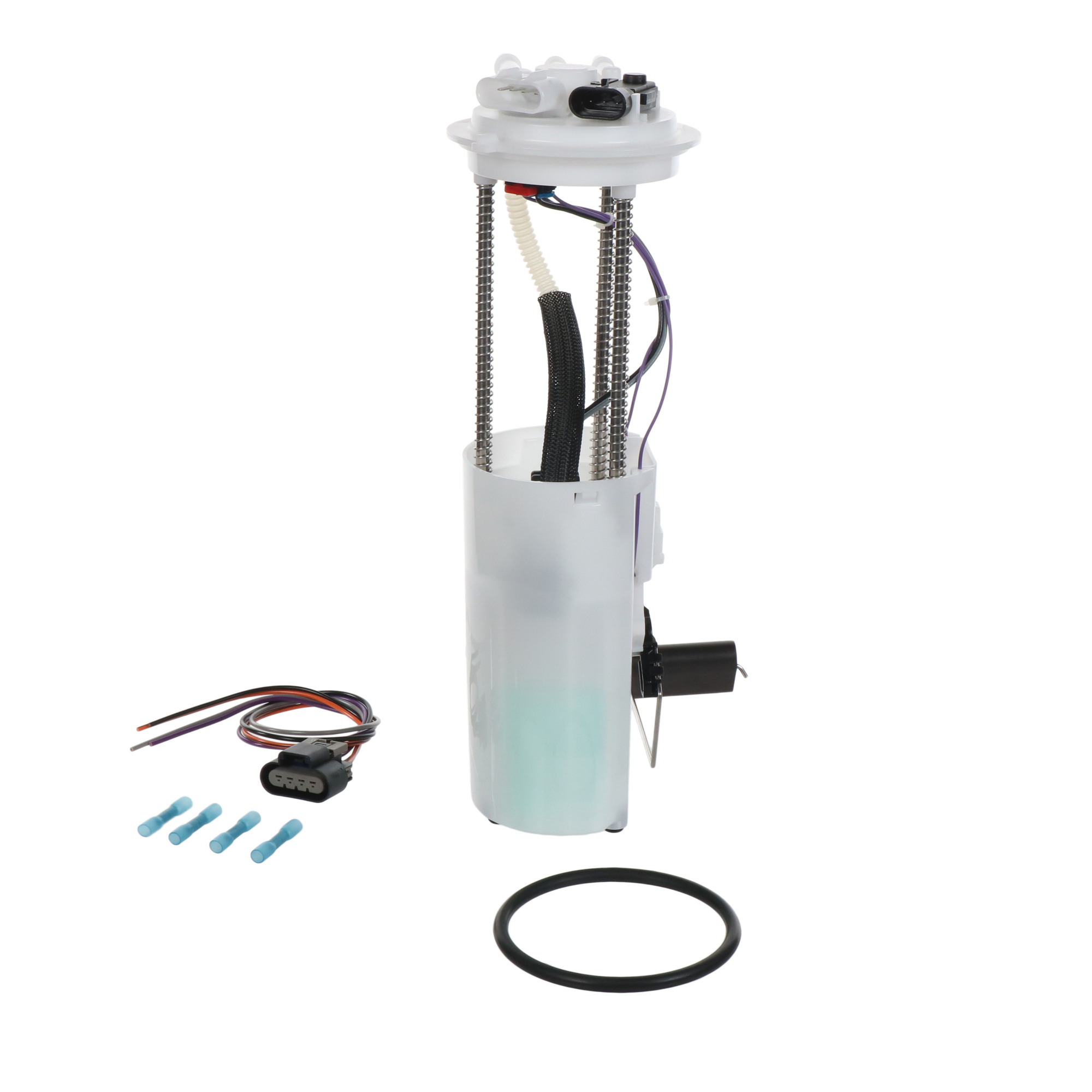

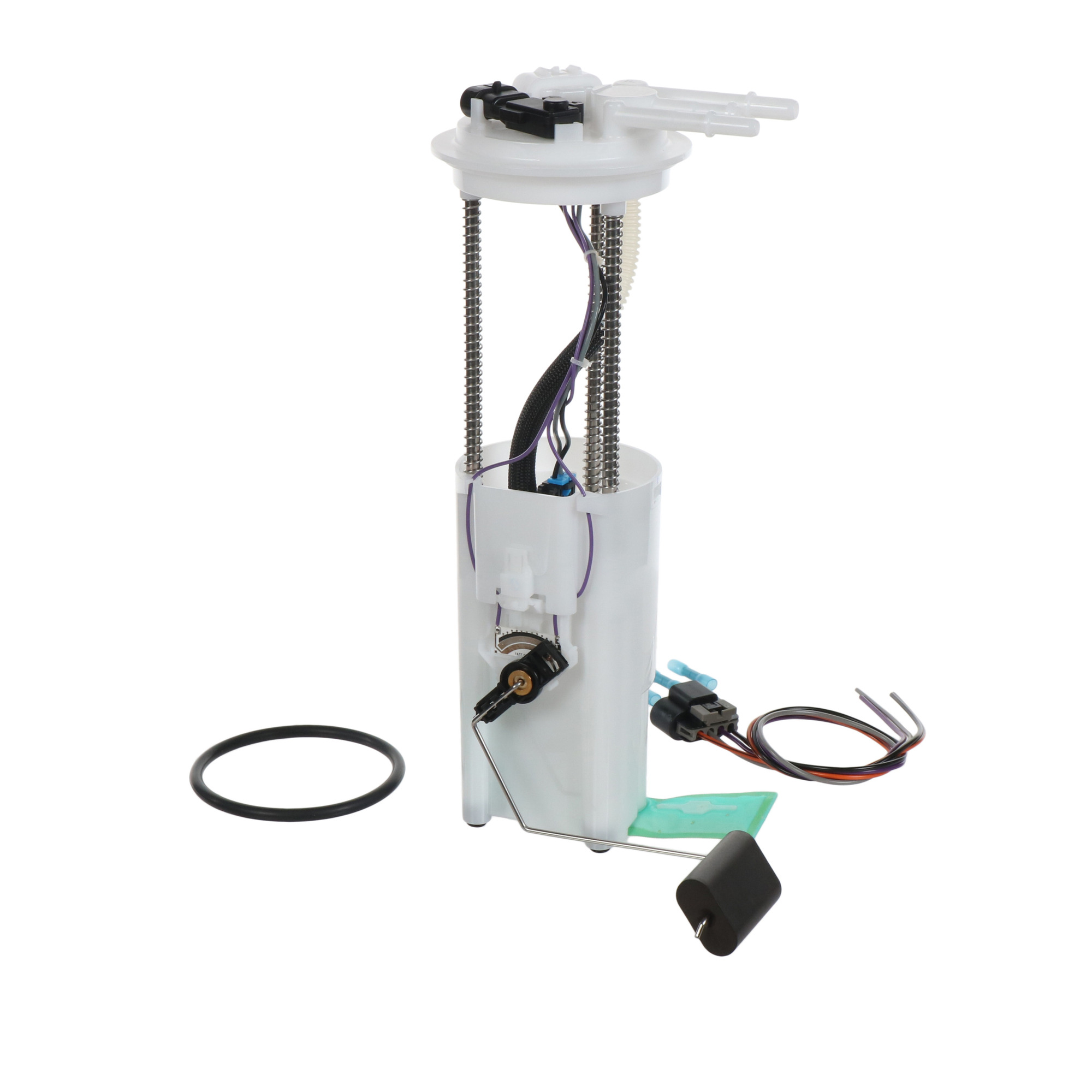

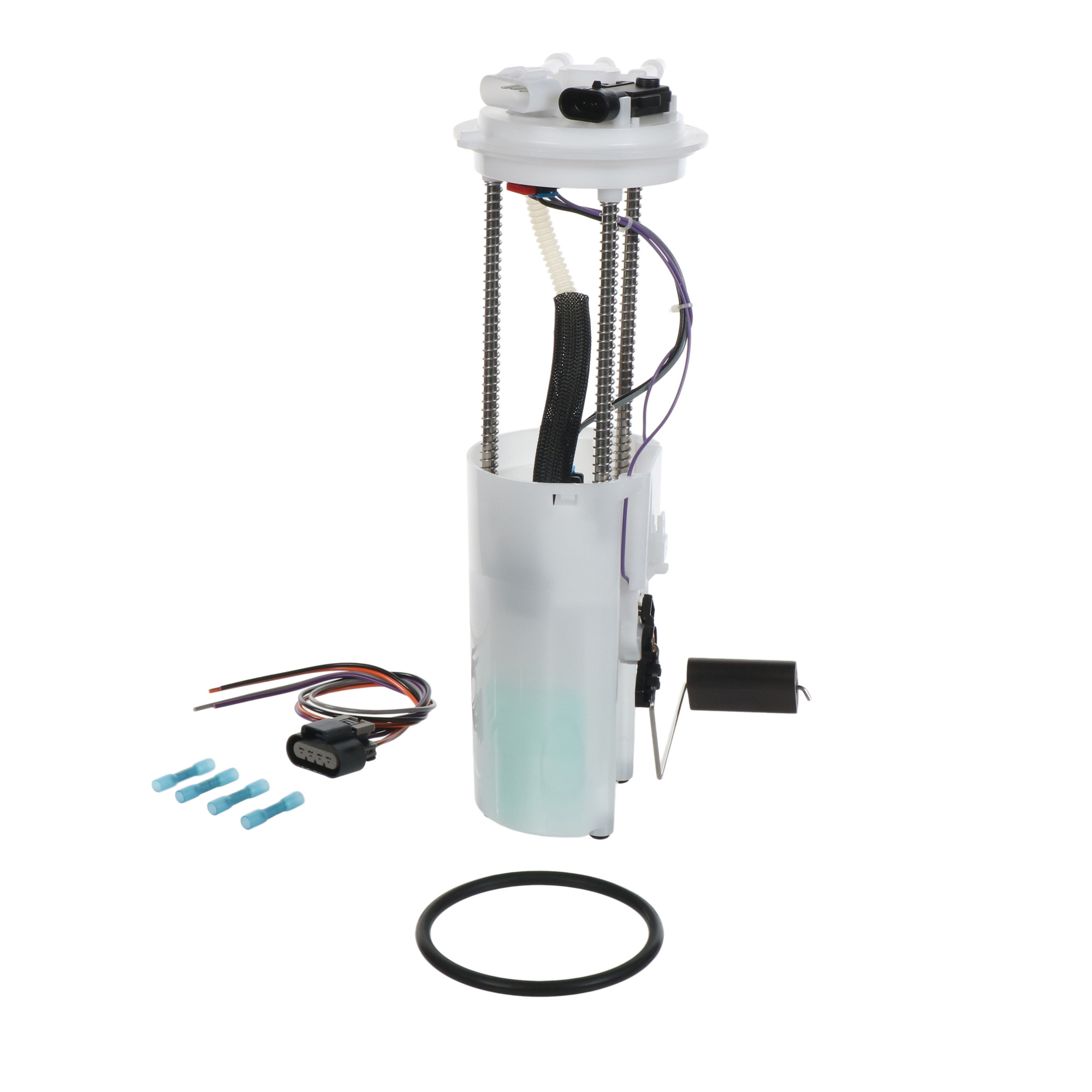

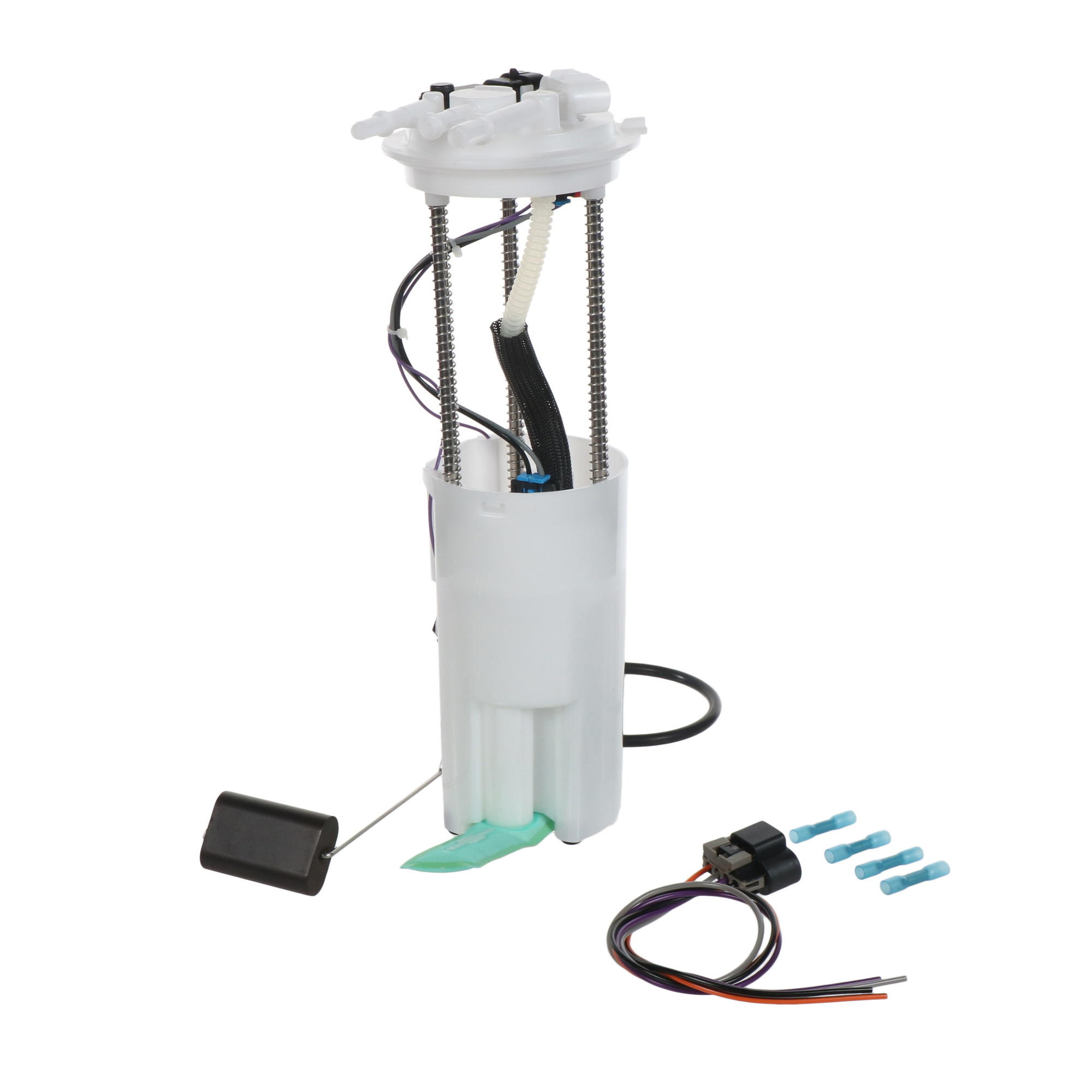

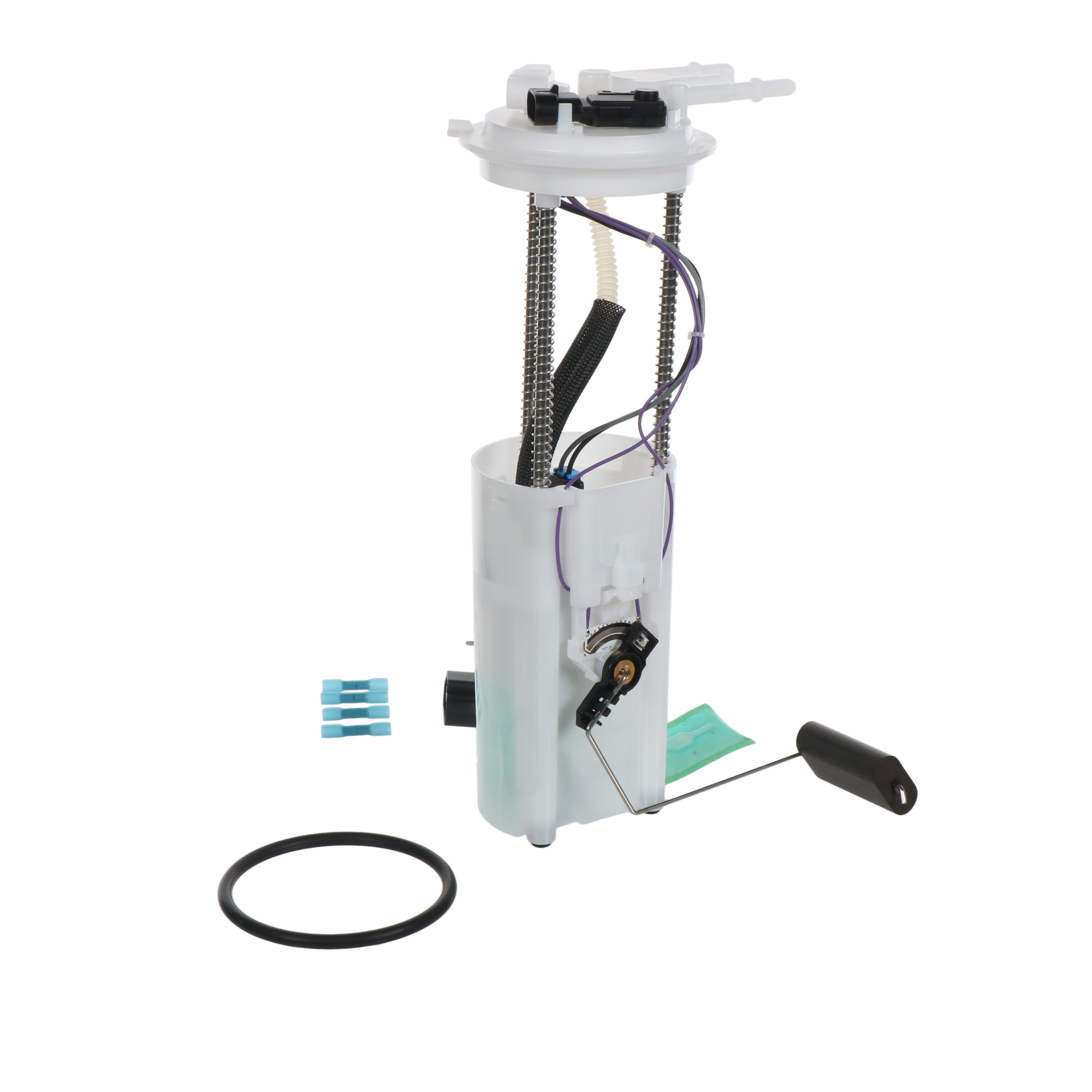

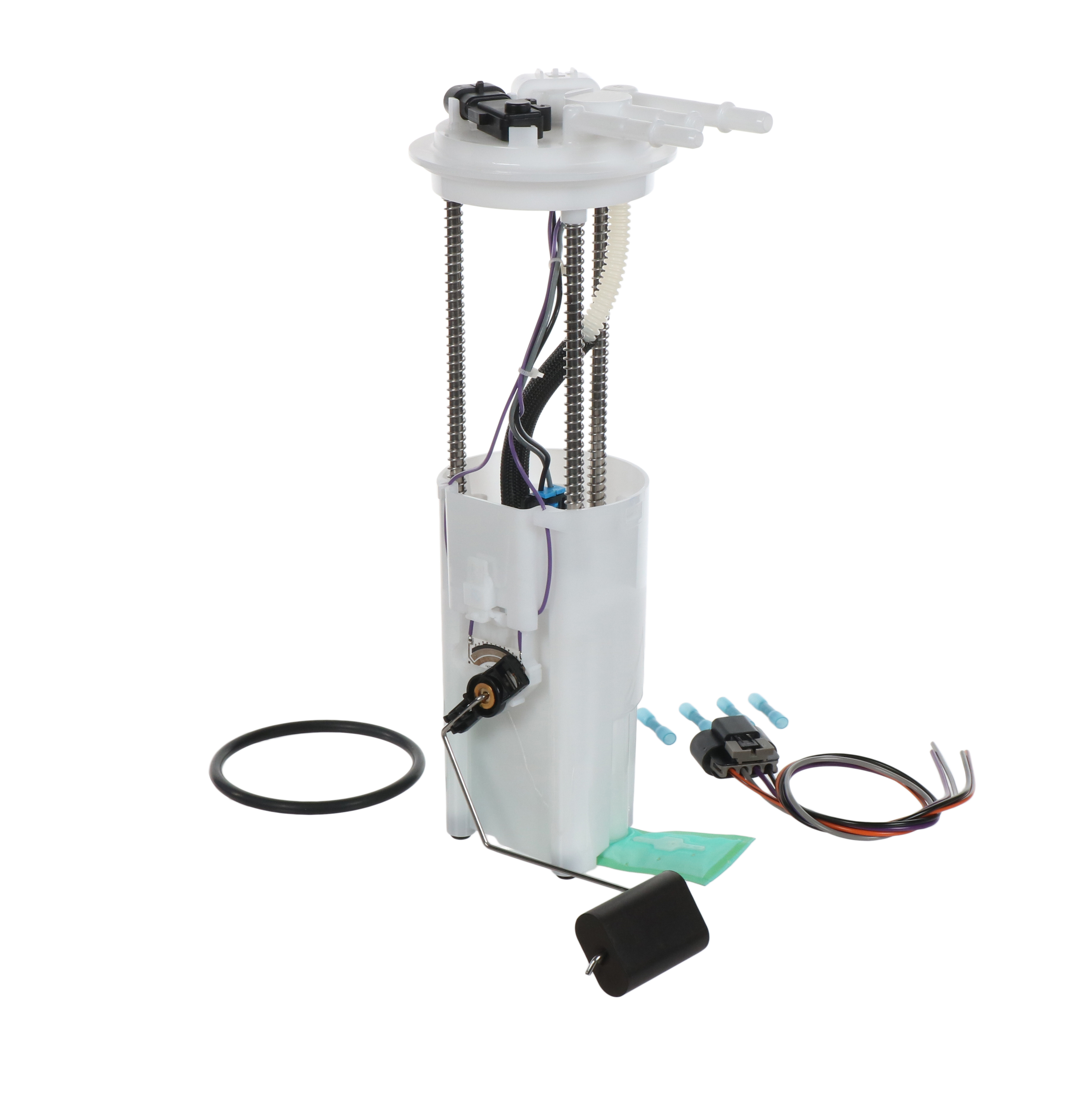

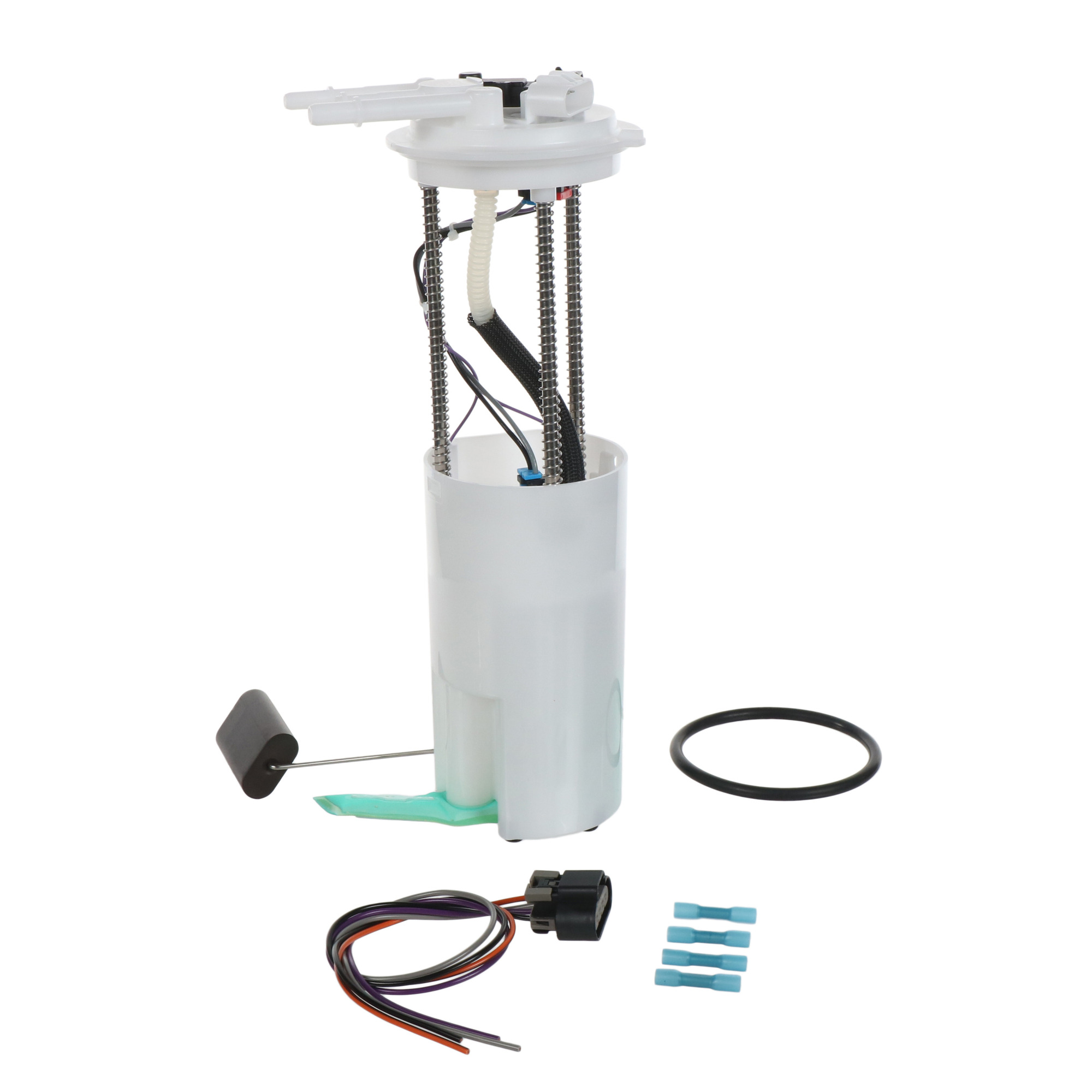

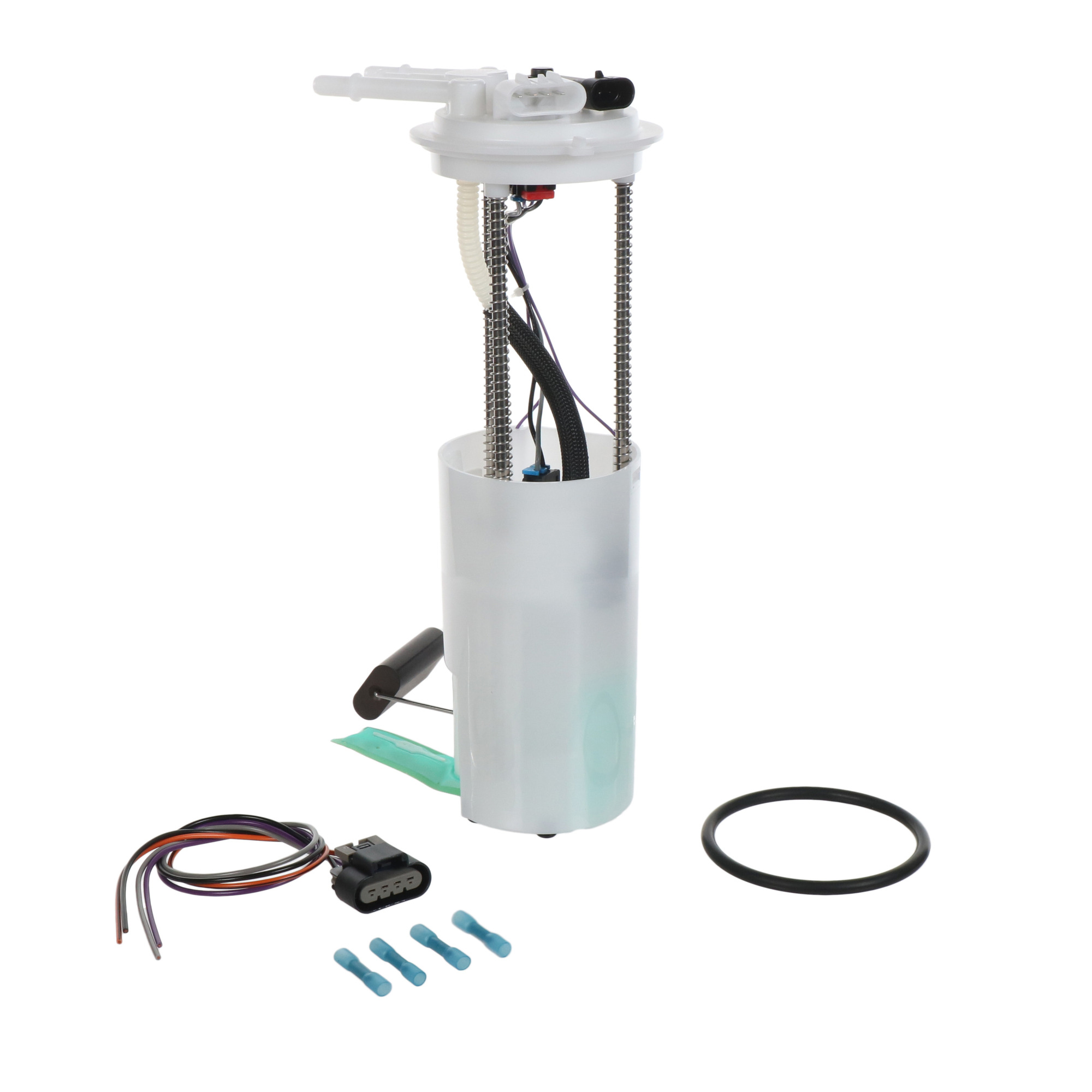

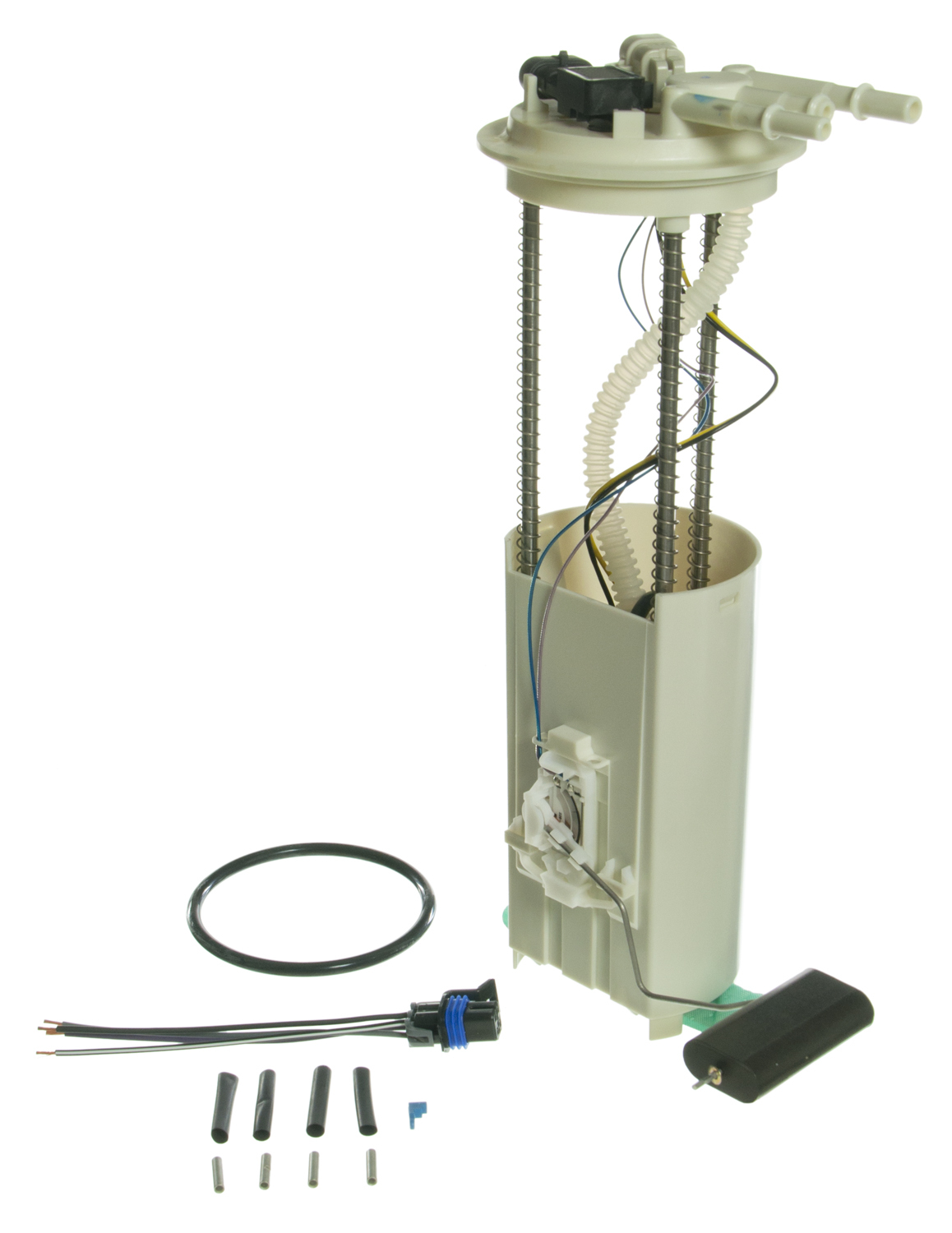

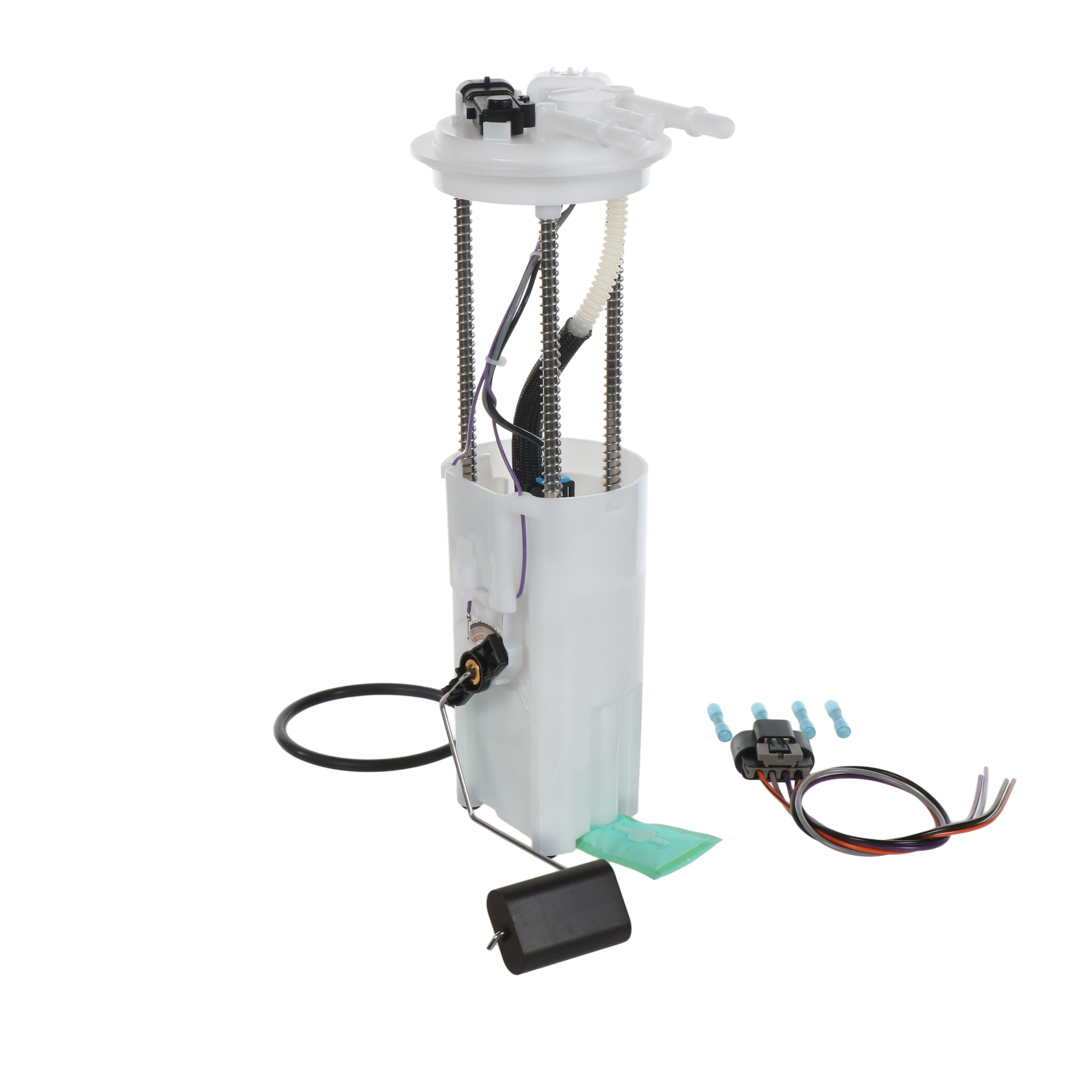

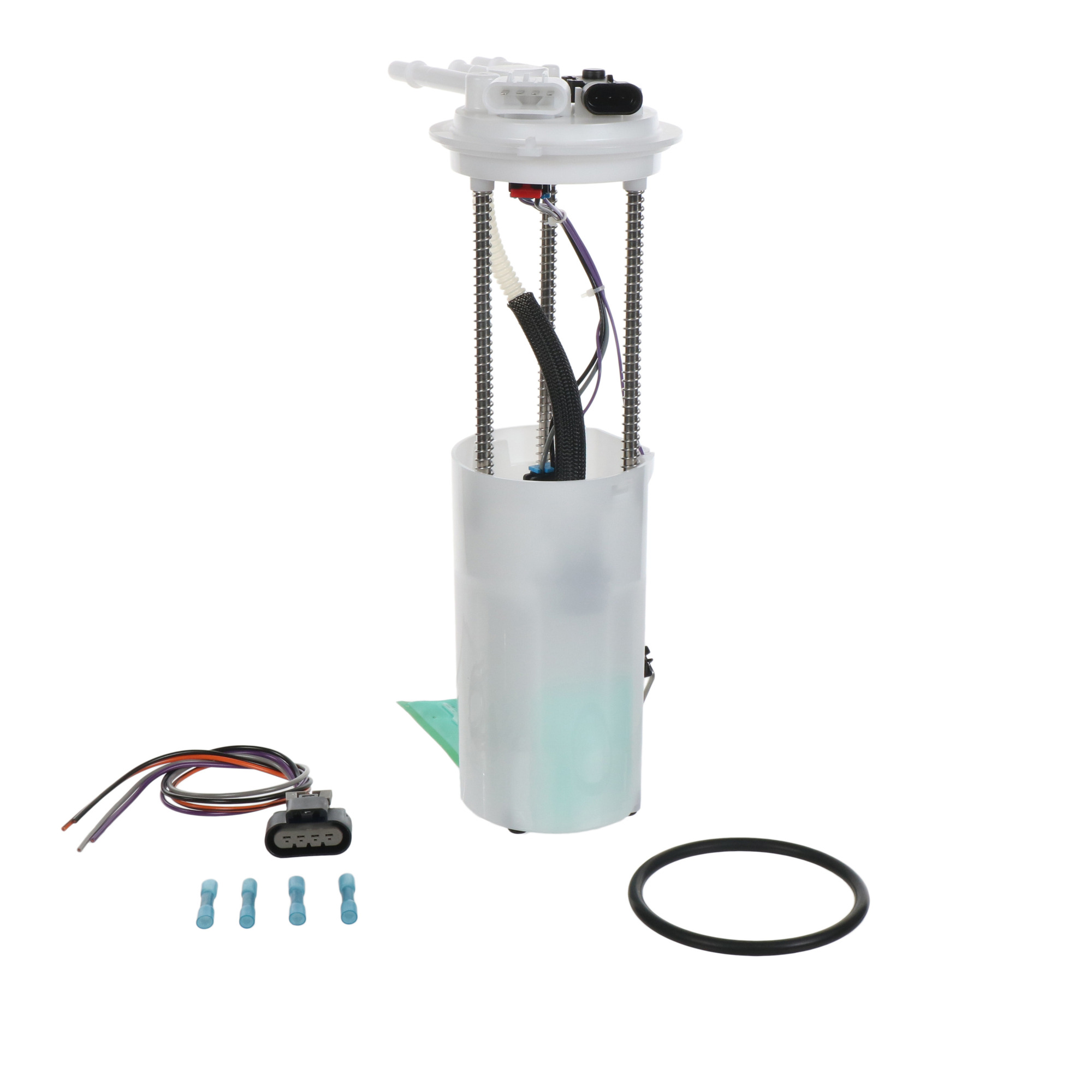

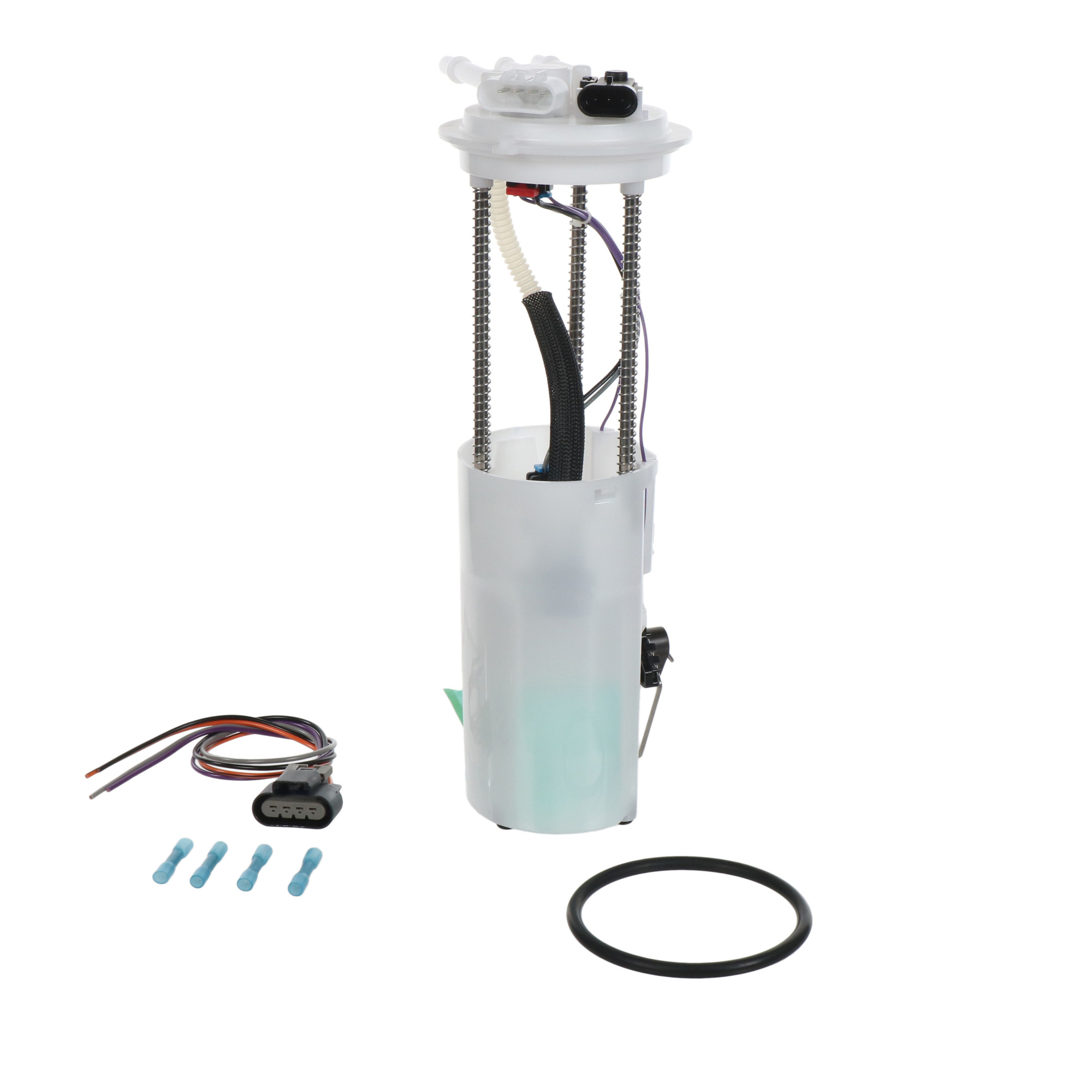

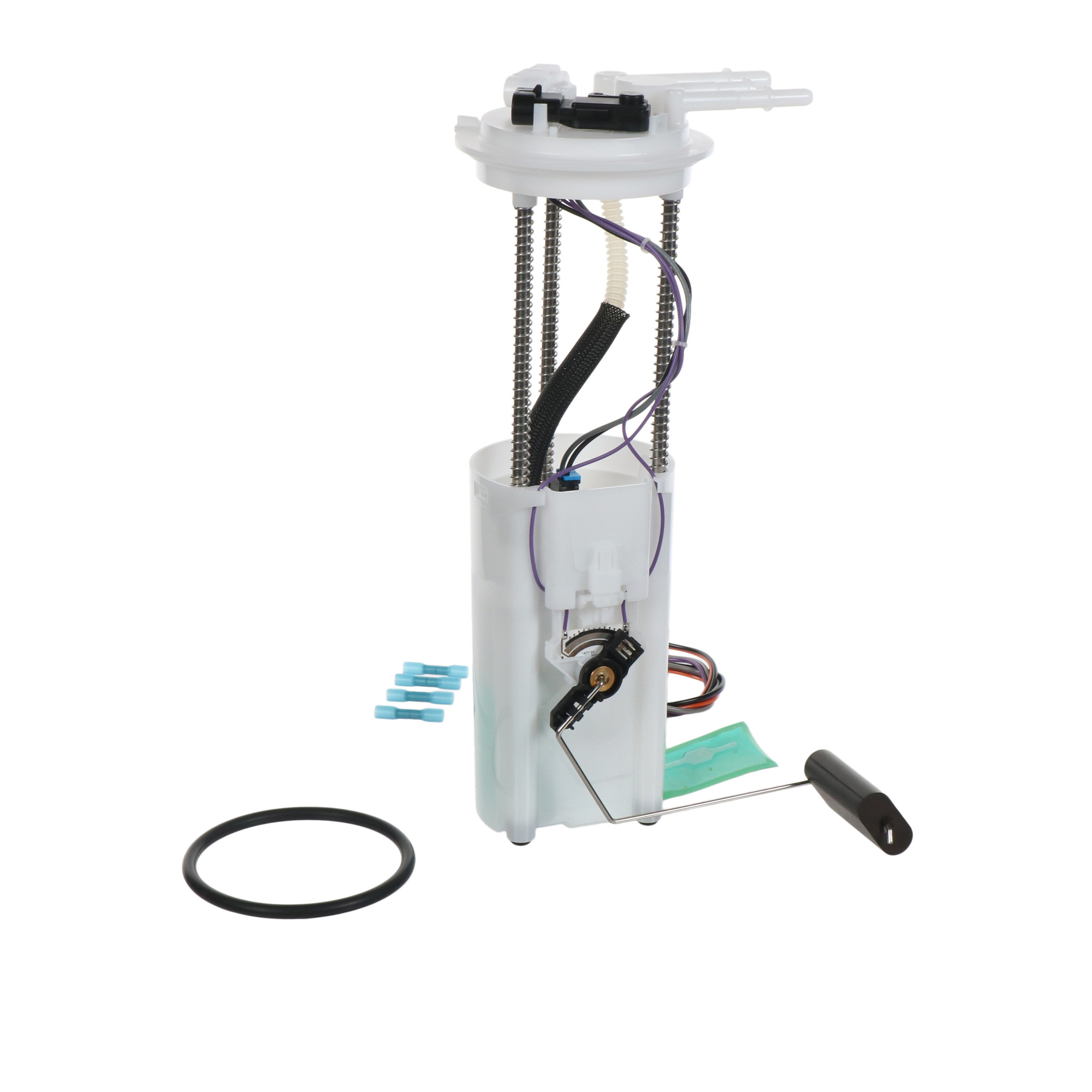

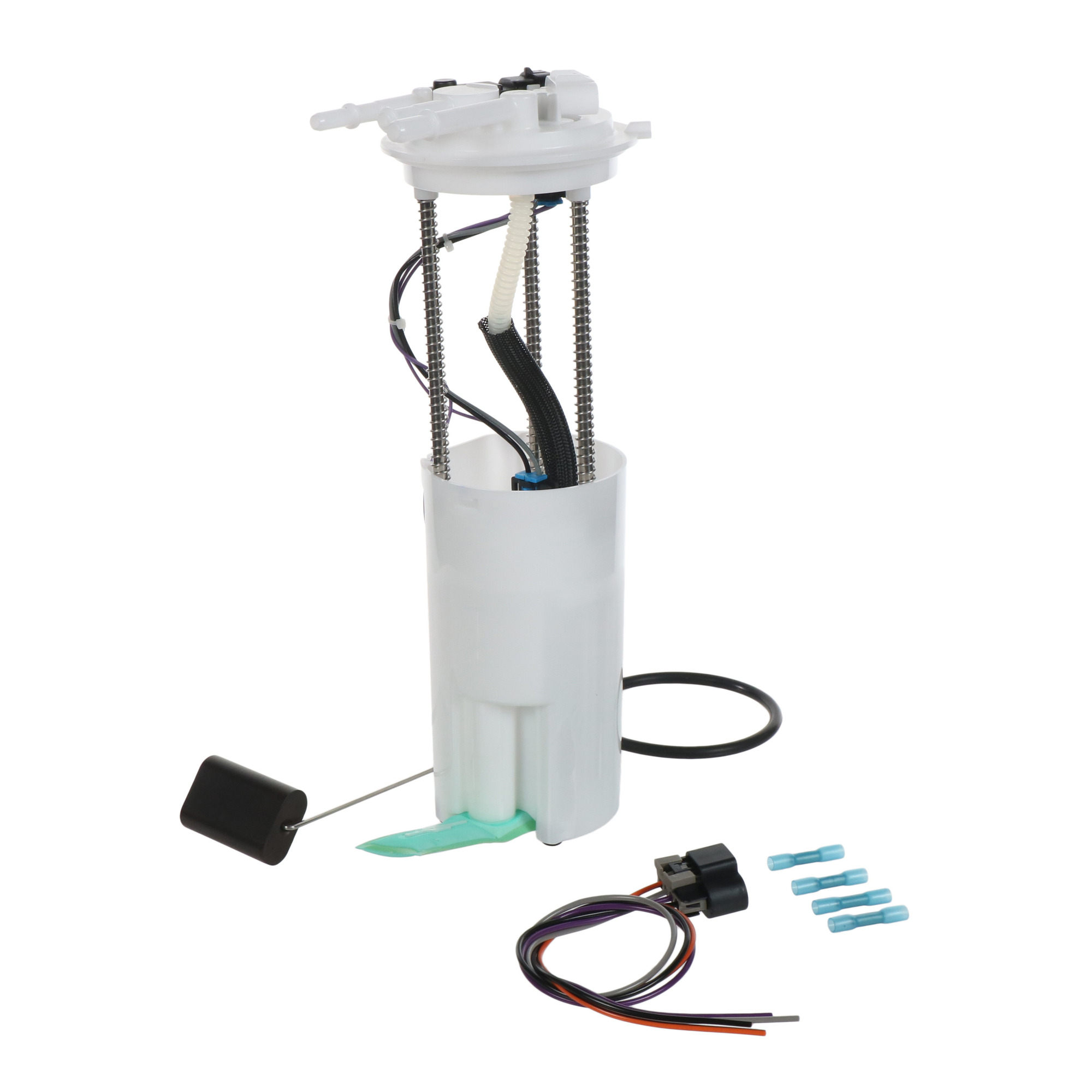

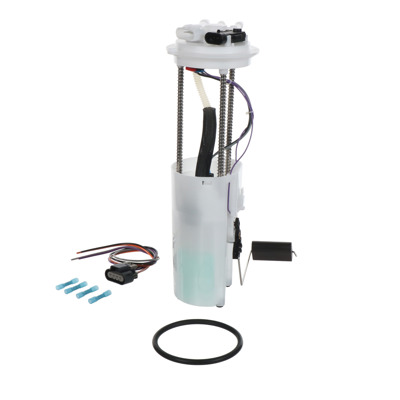

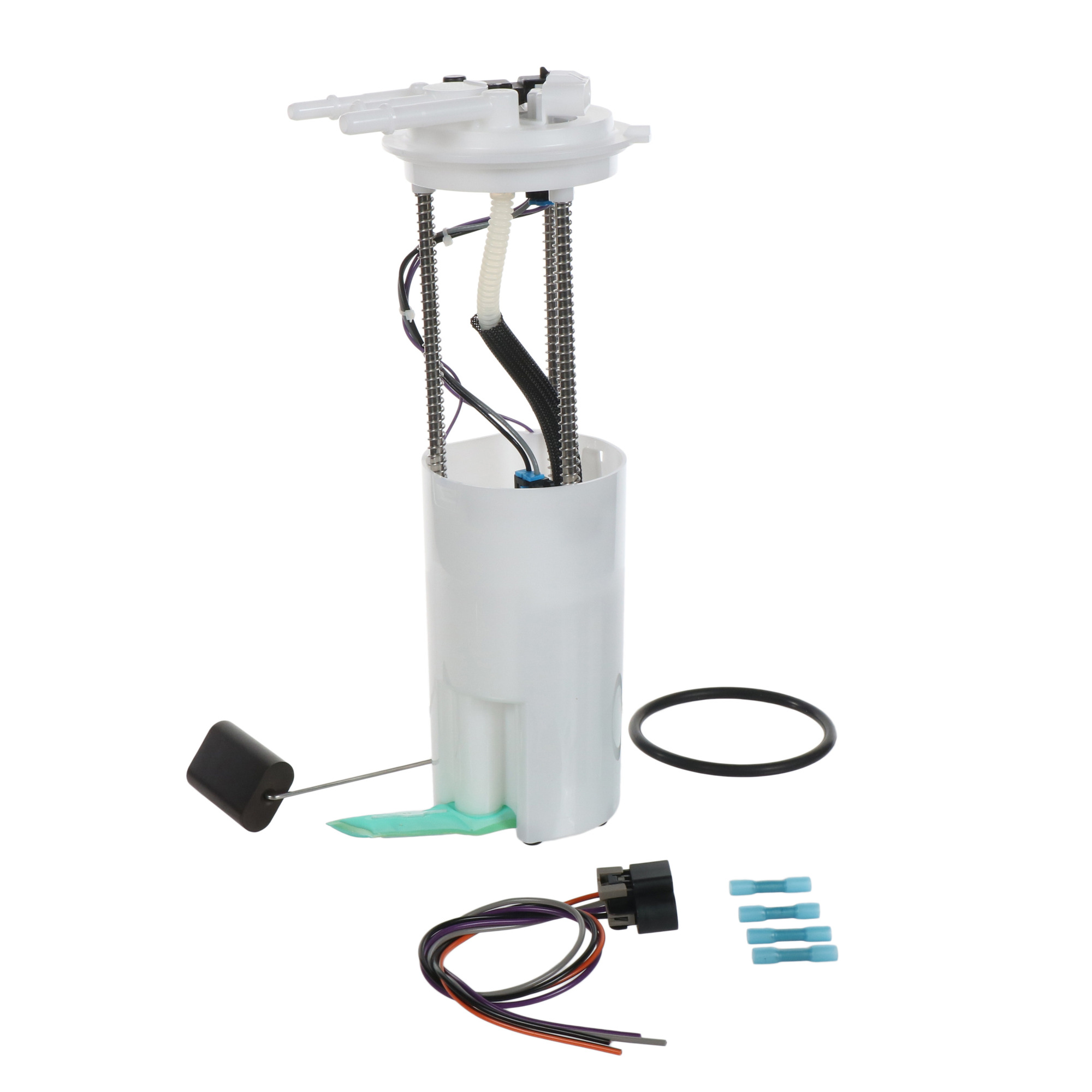

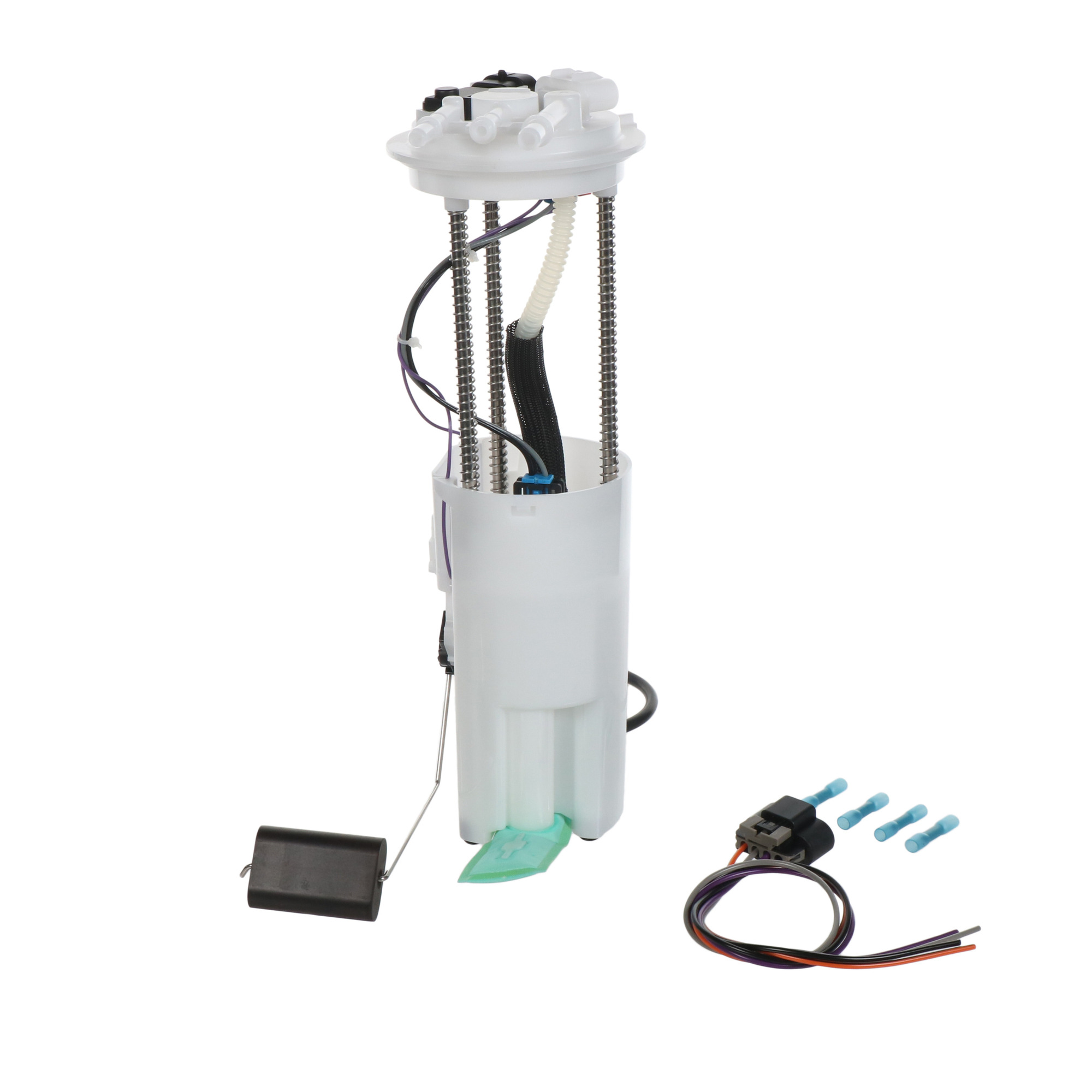

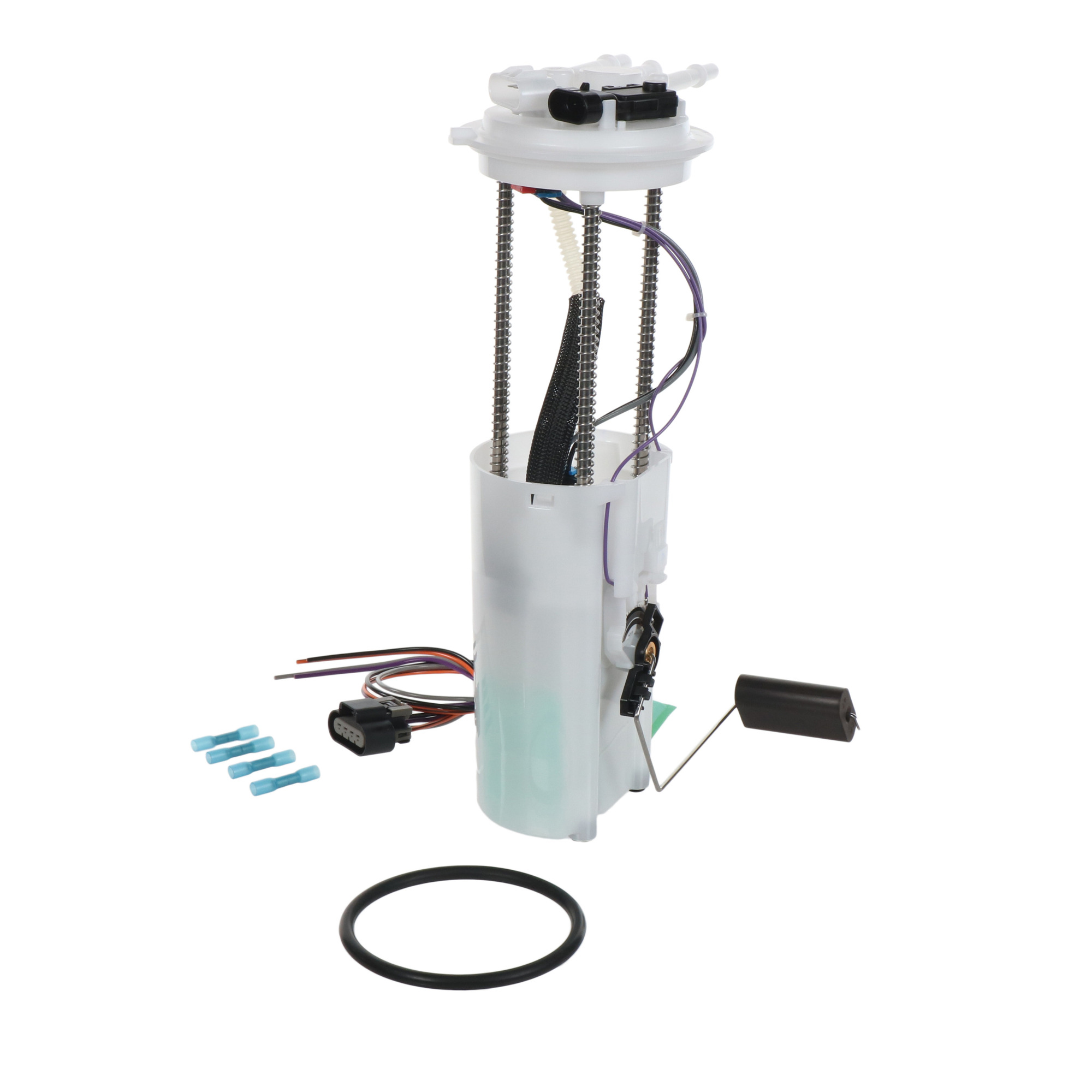

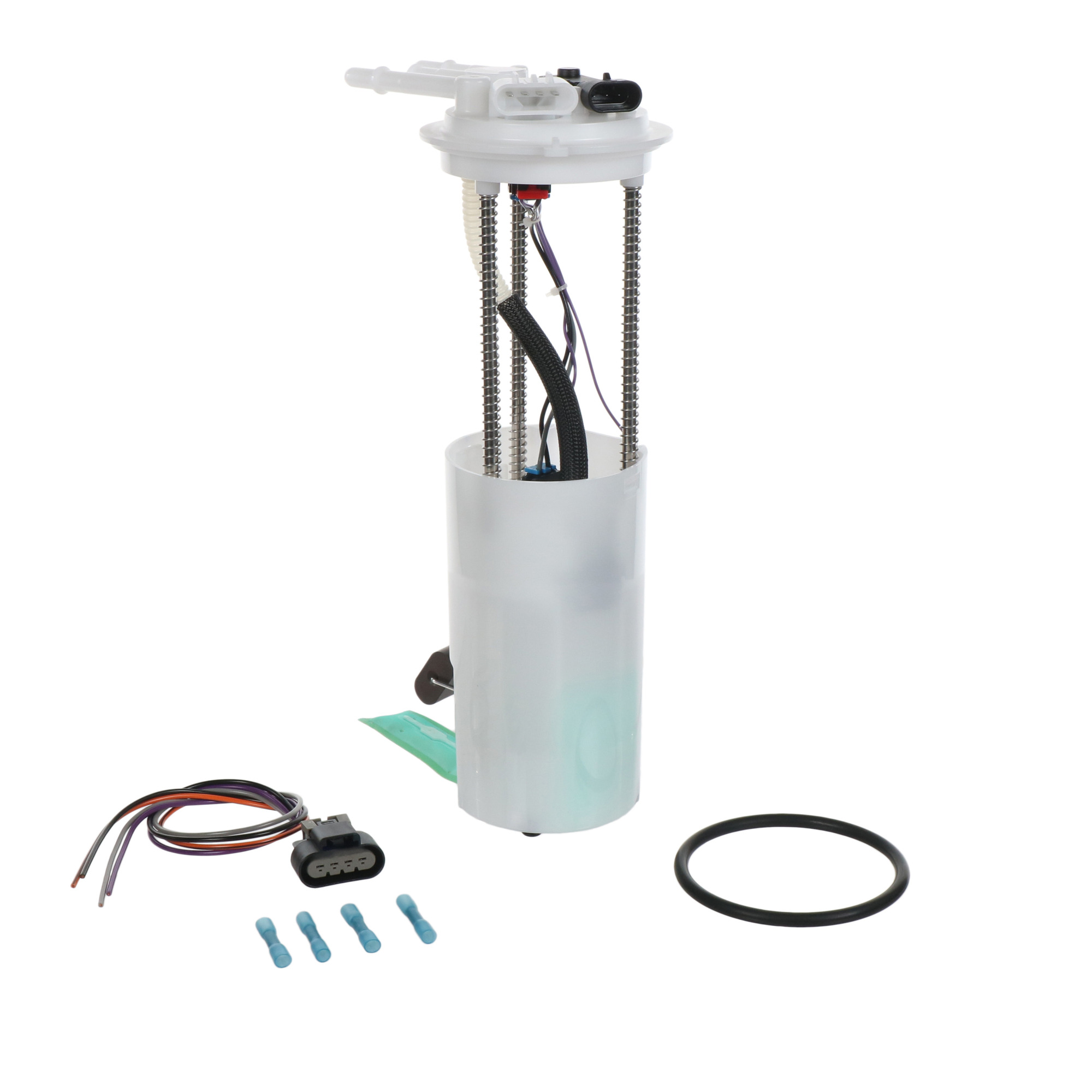

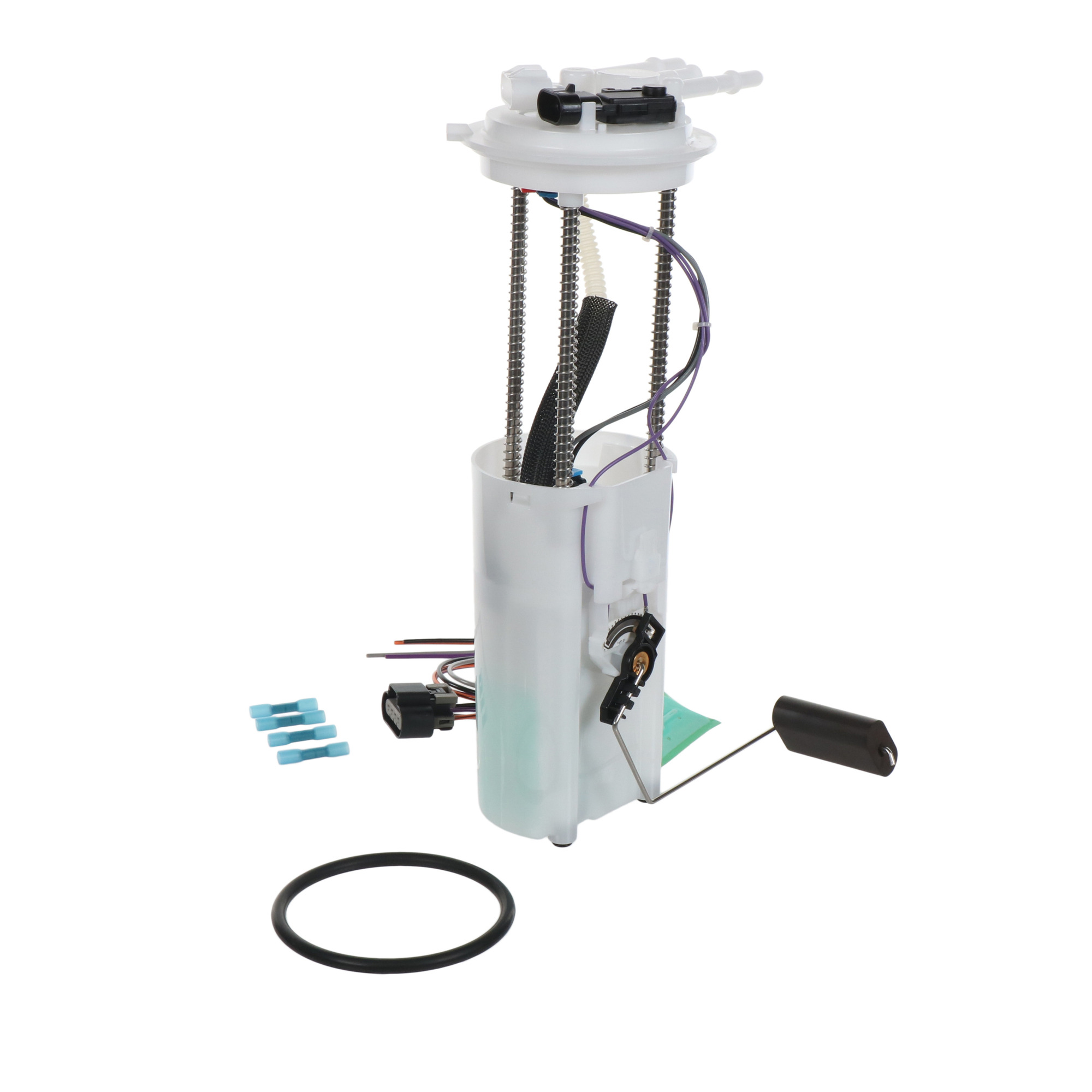

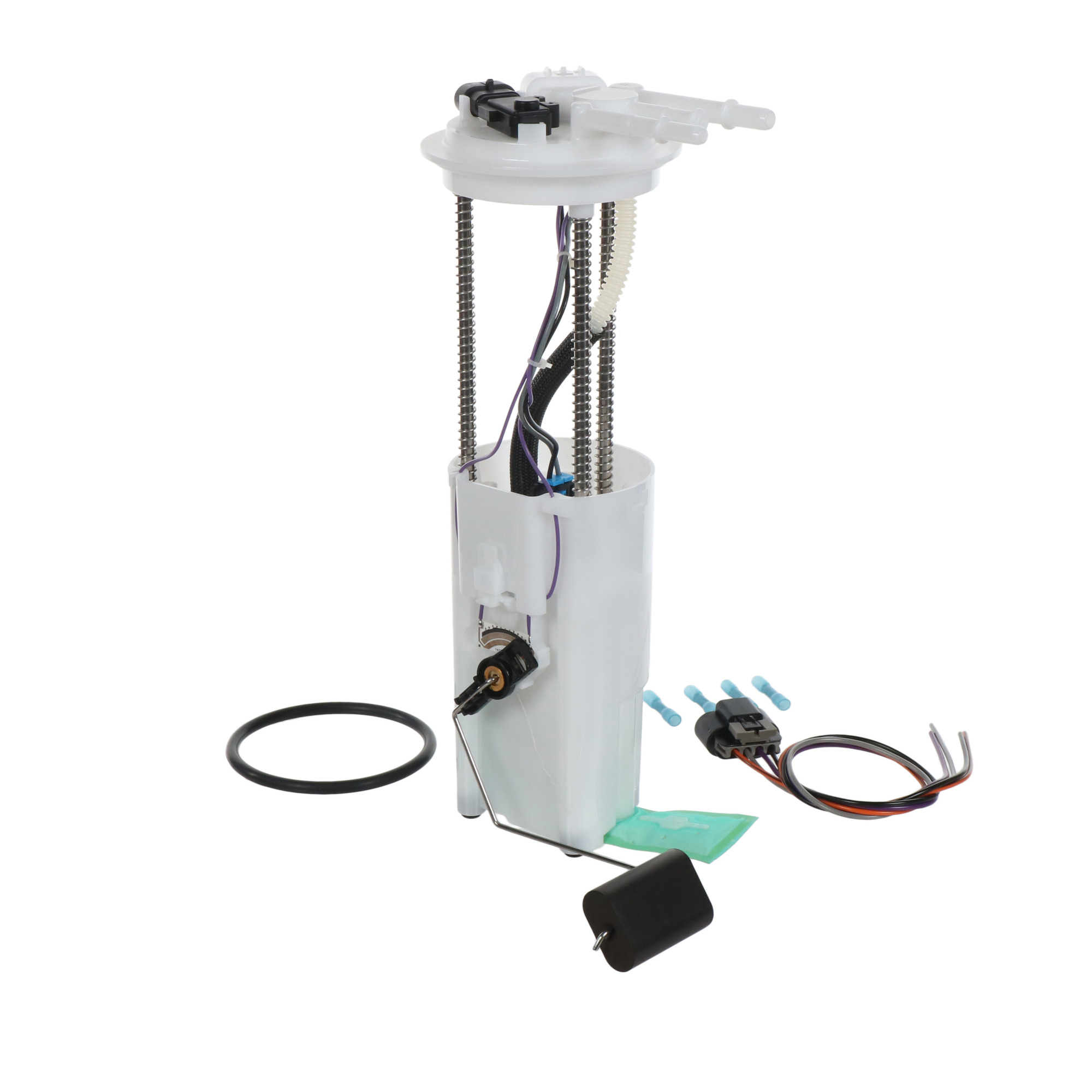

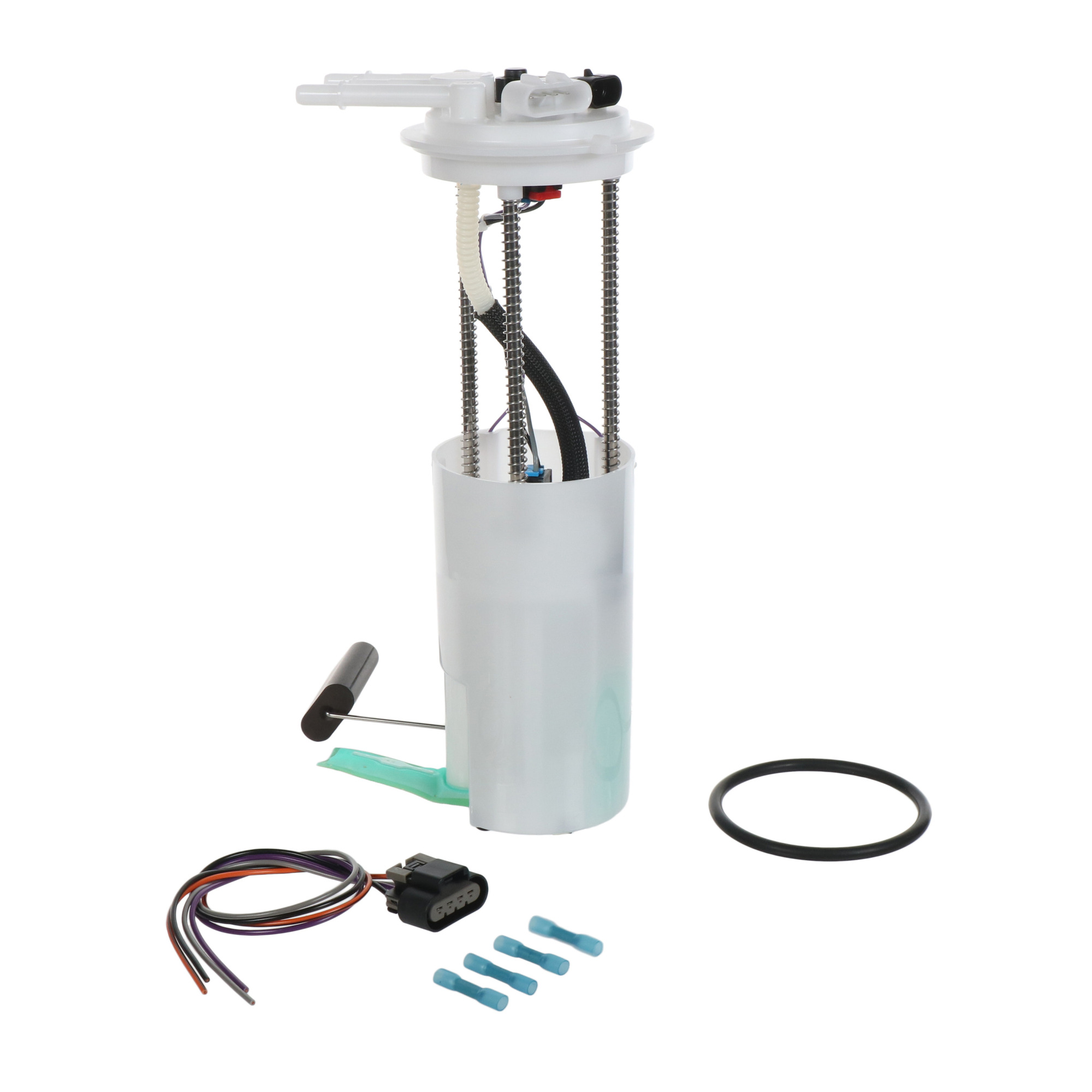

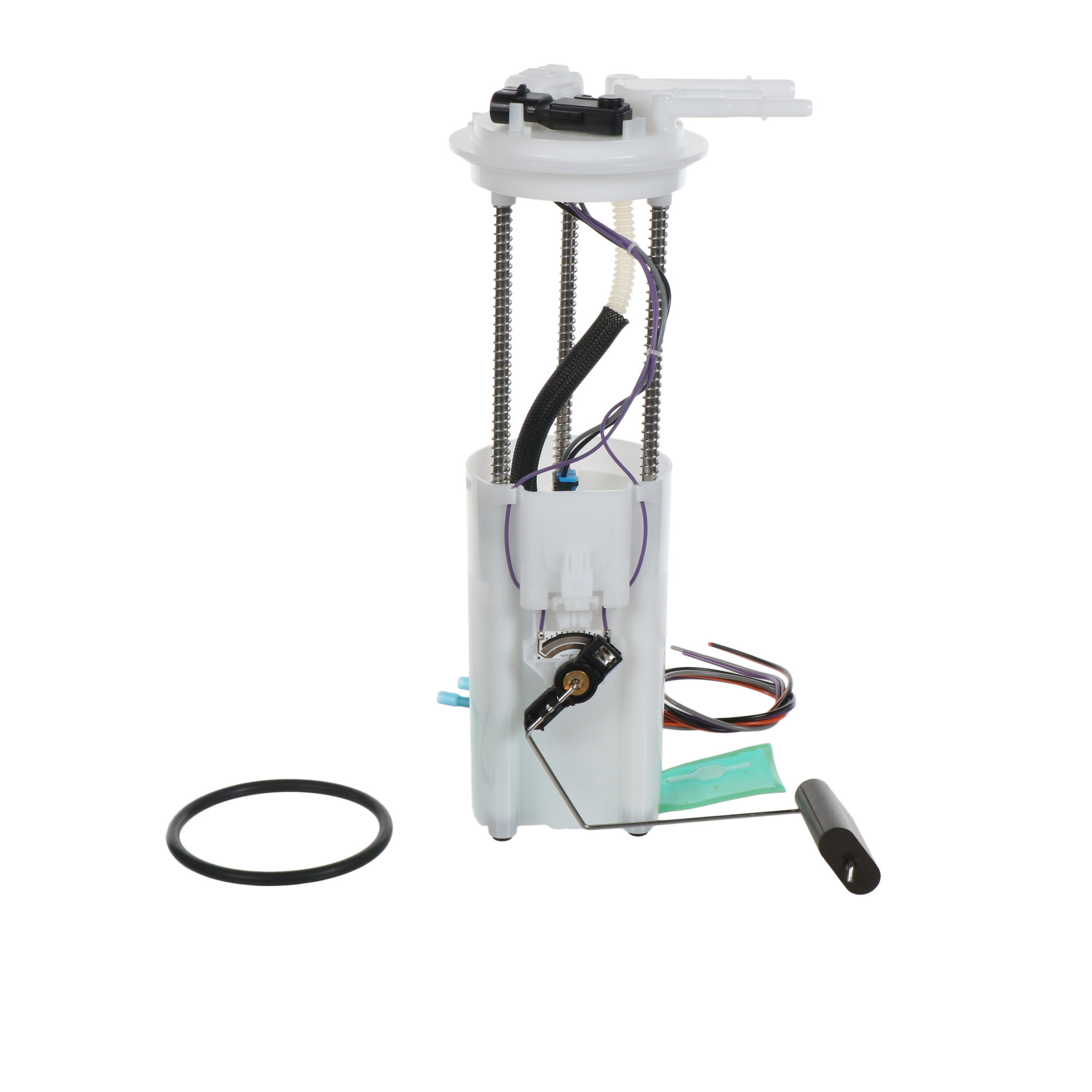

Fuel Pump Module Assembly |
Features & Benefits
expand_more
The Carter Fuel Systems program features unique innovation and solutions by offering premium OE fit, form, and function as well as exceptional vehicle coverage and exclusive problem-solving features.
Application Summary
expand_more
1998-2002 Chevrolet Express 1500 (Liter: 4.3, 5.0, 5.7 & Cylinder: 6, 8 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without Fitting for Take-Off Fuel Line ; Note: Includes Tank Seal, Connectors, and Wire Harness); 1998-2002 Chevrolet Express 2500 (Engine Designation: L65 & Liter: 5.7, 5.0, 4.3, 6.5 & Cylinder: 8, 6 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without Fitting for Take-Off Fuel Line, with California Emission System ; Note: Includes Tank Seal, Connectors, and Wire Harness); 1998-2002 Chevrolet Express 3500 (Body: Standard Passenger Van, Standard Cargo Van, Extended Cargo Van, Extended Passenger Van & Liter: 5.7, 7.4, 8.1 & Cylinder: 8 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without California Emission System, without Fitting for Take-Off Fuel Line ; Note: Includes Tank Seal, Connectors, and Wire Harness); 1998-2002 GMC Savana 1500 (Liter: 5.7, 4.3, 5.0 & Cylinder: 8, 6 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without Fitting for Take-Off Fuel Line ; Note: Includes Tank Seal, Connectors, and Wire Harness); 1998-2002 GMC Savana 2500 (Liter: 4.3, 5.0, 5.7 & Cylinder: 6, 8 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without Fitting for Take-Off Fuel Line ; Note: Includes Tank Seal, Connectors, and Wire Harness); 1998-2002 GMC Savana 3500 (Body: Standard Passenger Van, Standard Cargo Van, Extended Cargo Van, Extended Passenger Van & Liter: 5.7, 7.4, 8.1 & Cylinder: 8 & Block: V ; Qualifier: Under 8500 Lbs GVW, with 2 Connectors, without California Emission System, without Fitting for Take-Off Fuel Line, with Tag Code Marked VAY ; Note: Includes Tank Seal, Connectors, and Wire Harness)
