| Connector Gender | Female |
| Width | 139.95 |
| Height | 1.78 |
| Terminal Gender | Male |
| Flash Programming Required | No |
| Flashable | Yes |
| Terminal Type | Pin|Male; Pin|Male; Pin|Male; Pin|Male |
| Length | 216.15 |
| FAQ_Q1 | What's the difference between an ECM and a PCM? |
| FAA_A1 | "ECM" stands for Electronic Control Module. "PCM" stands for Powertrain Control Module. Both the ECM and PCM control the engine; however, the PCM also has control over the transmission. |
| FAA_A3 | No, not all Ford vehicles require PATS reset. Check the PATS chart found on the O.E. Manufacturer's Service site for your application. |
| FAQ_Q4 | The replacement PCM for a Ford vehicle won't start the vehicle. Why? |
| FAA_A7 | Not necessarily. There is a 30-minute manual procedure that can be done without a scanner. Refer to your O.E. manufacturer's approved service manual for details. |
| Features and Benefits | Tested with automated computer equipment or bench-tested, depending on application, to ensure functionality. |
| Terminal Quantity | 38;38;38;38 |
| Prop 65 | NO |
| SDS Required | No |
| Mounting Hole Quantity | 3 |
| Connector Shape | Rectangle |
| E-Waste | Yes |
| First Application Year | 2003 |
| FAQs | Yes, there's a 10 minute procedure utilizing a Tech 2 Scanner and a GM Terminal Subscription. There is also a 30 minute manual procedure that can be done without a scanner. Refer to an OE approved service manual for either option. |
| Connector/Terminal Configuration | Pin/Male; Pin/Male; Pin/Male; Pin/Male |
| Package Contents | Module; Instruction Sheet |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Removable PROM | No |
| Connector Quantity | 4 |
| Product Condition | Remanufactured |
| Is or contains a battery? | No |
| Is or contains a bulb? | No |
| Is the item CARB affected? | No |
| Is item a chemical? | No |
| Contains Electronic Components? | Circuit Board |
| FAA_A9 | Check Engine Light staying on after resetting, engine turning off for no reason, loss of spark, loss of fuel injection, loss of pulse on fuel pump, intermittent starting problems. |
| FAA_A6 | Yes, most GM vehicles have a VATS, Pass Key or Pass Lock anti-theft system. |
| FAQ_Q6 | Do GM vehicles have a passive anti-theft system? |
| FAA_A4 | Ensure that the PCM was properly flash programmed for the vehicle. Also note whether the vehicle is equipped with the Ford "passive anti-theft system", which requires an on-car relearn. |
| FAQ_Q7 | Do I need a scanner to reset the anti-theft system |
| FAA_A2 | Some GM applications have a knock module that must be transferred to the replacement module. Some older Ford applications have a calibration module that must be transferred to the replacement module. |
| FAQ_Q2 | Do I have to transfer anything from my original ECM/PCM? |
| FAA_A8 | Chrysler models 1996 and newer will need to be VIN programmed. |
| FAQ_Q8 | Do all Chrysler Power Train Control Modules (PCM) need VIN programming? |
| FAQ_Q9 | What are the most common symptoms of a bad PCM? |
| FAQ_Q5 | What steps should I take to ensure the original PCM is causing the issue? |
| FAA_A5 | Prior to replacing the original ECM/PCM, the installer should determine what caused the original to fail. Common causes of failures are: poor grounds and power, a bad wiring harness and short-circuited solenoids/relays. |
| FAQ_Q3 | Do all Ford vehicles require a Passive Anti-Theft System (P.A.T.S) reset? |

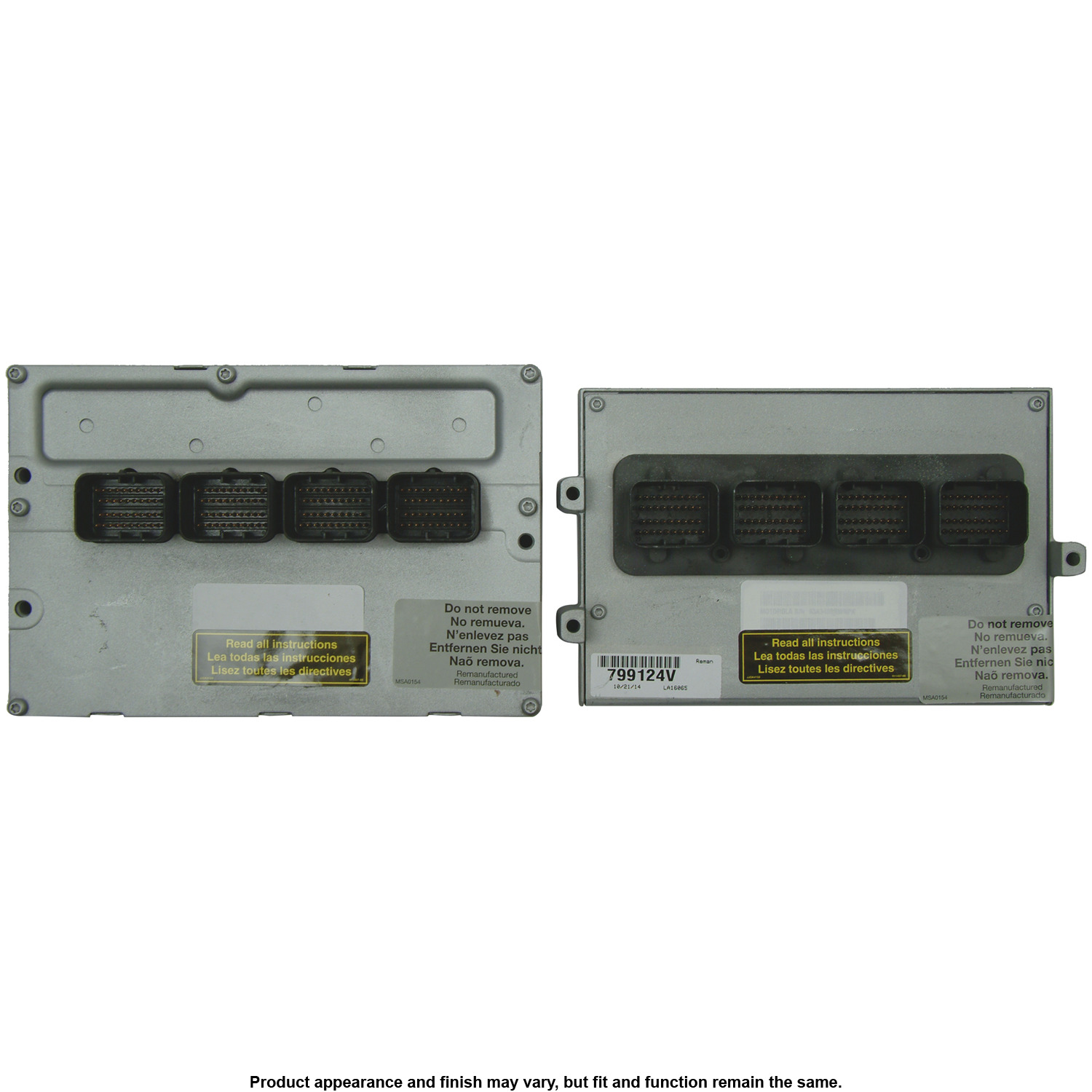

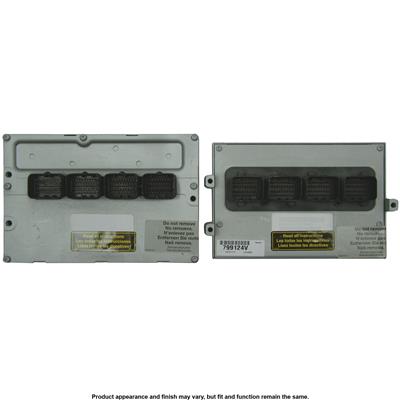

| Part Terminology | Engine Control Module (ECM) |
