| ABS Sensor Ring Included | No |
| Input Shaft Bolt Count | 0 |
| Is Prop Sixty Five Affected | No |
| Spindle Nut Included | Yes |
| Is the item CARB affected | No |
| Axle Nut Included | Yes |
| Output Shaft Connection Style | Spline |
| Axle Nut Thread Size | M24x2.0 |
| FAQs | When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on. |
| Outboard Spline Quantity | 30 |
| Boot Rib Quantity | 5 |
| Is Or Contains A Battery | No |
| Product Condition | Remanufactured |
| FAA_A6 | The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time. |
| Output Shaft Spline Count | 30 |
| FAA_A7 | NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one. |
| CV Joints Included | Yes |
| Contains Electronic Components? | No |
| FAA_A4 | The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up. |
| FAA_A5 | The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint. |
| FAA_A2 | When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on. |
| FAA_A3 | The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced. |
| ABS Ring Tooth Count | 0 |
| FAA_A1 | Shafts are inspected 100% for run out to prevent vibrations. Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly. |
| Prop 65 | NO |
| FAA_A8 | Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly. |
| FAA_A9 | Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications. |
| Boot Color | Black |
| Universal Joints Included | No |
| E-Waste | No |
| Is Item A Chemical | No |
| FAQ_Q5 | I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this? |
| Spindle Nut Thread Size | M24x2.0 |
| FAQ_Q4 | When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong? |
| Features and Benefits | Threads are chased to ensure proper fit of the new retaining nut supplied with each CV Drive axle. |
| Is or contains a bulb? | No |
| FAQ_Q7 | The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it? |
| FAQ_Q6 | I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do? |
| FAQ_Q1 | Are the CV Drive Axle shafts balanced at the factory? |
| FAQ_Q3 | When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise? |
| FAQ_Q2 | I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why? |
| Input Shaft Spline Count | 34 |
| Axle Nut Locking Type | Self Lock |
| Package Contents | Complete Axle; Instruction Sheet |
| Inboard Spline Quantity | 34 |
| Dynamic Damper Attached | No |
| Does it require SDS | No |
| Mount Type | Spline |
| ABS Ring Included | No |
| FAA_A12 | The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem. |
| FAA_A11 | Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint. |
| FAA_A10 | When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking. |
| Shaft Material | Steel |
| Is item a chemical? | No |
| SDS Required | No |
| FAQ_Q9 | Is it OK to use an impact hammer to install the retaining nut? |
| FAQ_Q8 | The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it? |
| Compressed Length | 533.4 |
| Outboard Joint Type | Spline |
| Is the item CARB affected? | No |
| FAQ_Q10 | When I replace the CV drive axles, should I reuse the old seals? |
| FAQ_Q12 | The wheels wobble when I make a turn. What's the problem? |
| Shaft Diameter | 1.074 |
| FAQ_Q11 | Can I let the CV Drive Axles hang while I am working on the car? |
| Compressed Length (in) | 21 |
| Input Shaft Connection Style | Spline |
| Boot Material | Neoprene |
| Is Or Contains A Bulb | No |
| Inboard Joint Type | Spline |
| Is or contains a battery? | No |
| Slip Yoke | No |
| Contains Electronic Components | No |
| Grade Type | Standard |

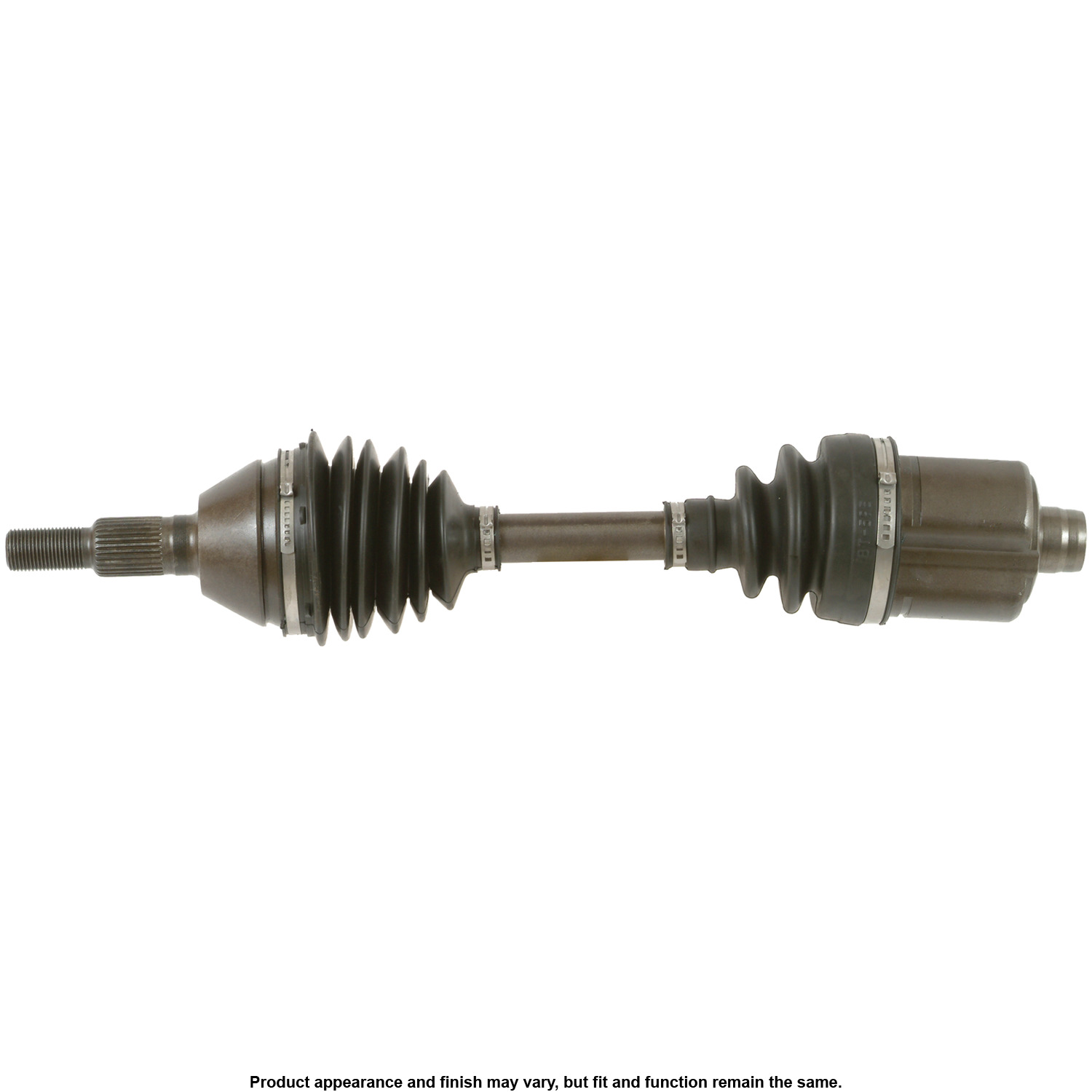

| Part Terminology | CV Axle Assembly |
