| Terminal Type | Blade |
| Connector Gender | Female |
| Connector Shape | Oval |
| Mounting Hole Quantity | 3 |
| Wire Quantity | 5 |
| Terminal Quantity | 5 |
| Mounting Hardware Included | No |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Connector Quantity | 1 |
| Wiring Harness Length | 254 |
| Sprocket Tooth Quantity | 4 |
| Mount Type | Direct Bolt |
| Shift Operation | Electronic |
| Features and Benefits | Transfer case motor sensors are 100% replaced with new, O.E.-quality sensors for superior performance and long product life. |
| Prop 65 | NO |
| SDS Required | No |
| E-Waste | Yes |
| FAQs | What drivetrain position is the replacement motor drive placed in? |
| Component Housing Material | Steel |
| First Application Year | 2003 |
| Package Contents | Transfer Case Motor; Instruction Sheet |
| Connector/Terminal Configuration | Blade |
| Grade Type | Performance |
| Is Or Contains A Bulb | No |
| Is Or Contains A Battery | No |
| Product Condition | Remanufactured |
| Is Item A Chemical | No |
| Contains Electronic Components | No |
| Is or contains a battery? | No |
| Is or contains a bulb? | No |
| Contains Electronic Components? | No |
| Is the item CARB affected? | No |
| Is item a chemical? | No |
| FAQ_Q1 | The replacement motor drive is in a different position, can I reposition before installing? |
| Shift Operation Type | Electronic |
| FAA_A1 | Do not operate the motor while it is off the transfer case. This can damage the motor and set an error code that must be cleared before the motor will operate again. Shift the transfer case into the position of the motor to install. |
| FAQ_Q2 | Can I install the replacement motor if my Transfer Case motor failed in 4 Wheel Drive Low or High? |
| FAA_A4 | The replacement motor drive is factory-set in the 2 wheel drive position. |
| FAA_A2 | Yes, the transfer case should be manually shifted into the two-wheel drive position at the shift shaft before the installation of the replacement motor. Typically the positions are spring-loaded and can be rotated manually. |
| Gear of Chain Type | Gear |
| FAQ_Q5 | The Service 4WD light is on and/or the 4WD is inoperative. What could cause this condition? |
| FAA_A3 | A crescent wrench can be used for this operation. |
| FAQ_Q3 | What tool can I use to manually shift the transfer case into the two-wheel drive position before I install the replacement motor? |
| FAQ_Q4 | What drivetrain position is the replacement motor drive placed in? |
| FAQ_Q6 | If the motor attempts to shift, but sounds weak, check the front axle lock actuator. If the axle lock does not engage, the motor cannot complete its engagement. |
| FAA_A5 | This may be caused by a transfer case control module calibration issue. Check for DTC's and calibration version - there may be a software update from the Original Equipment Manufacturer. |
| Is Prop Sixty Five Affected | No |
| Does it require SDS | No |
| Is the item CARB affected | No |

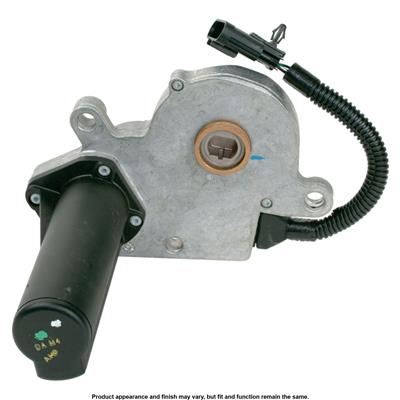

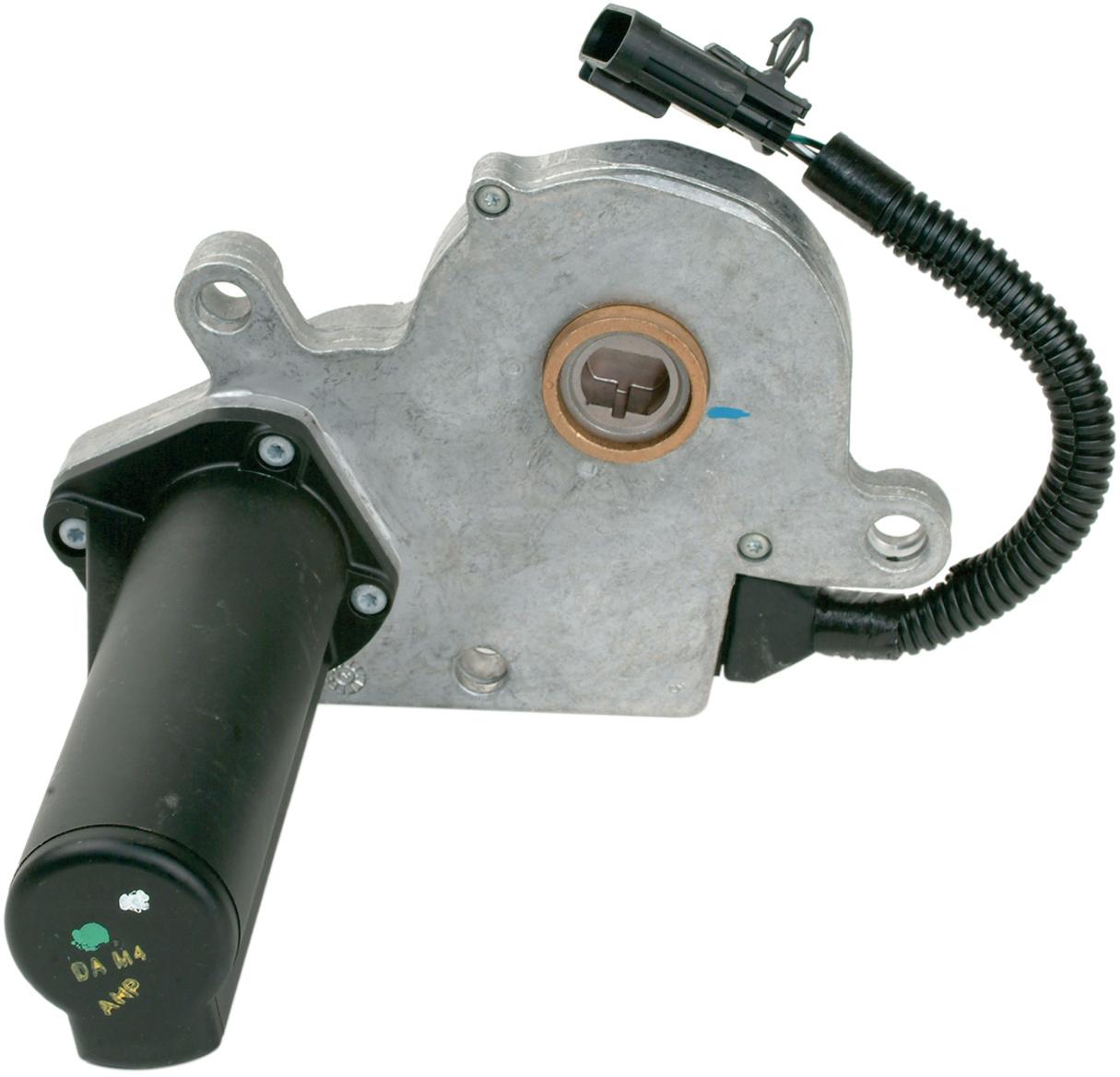

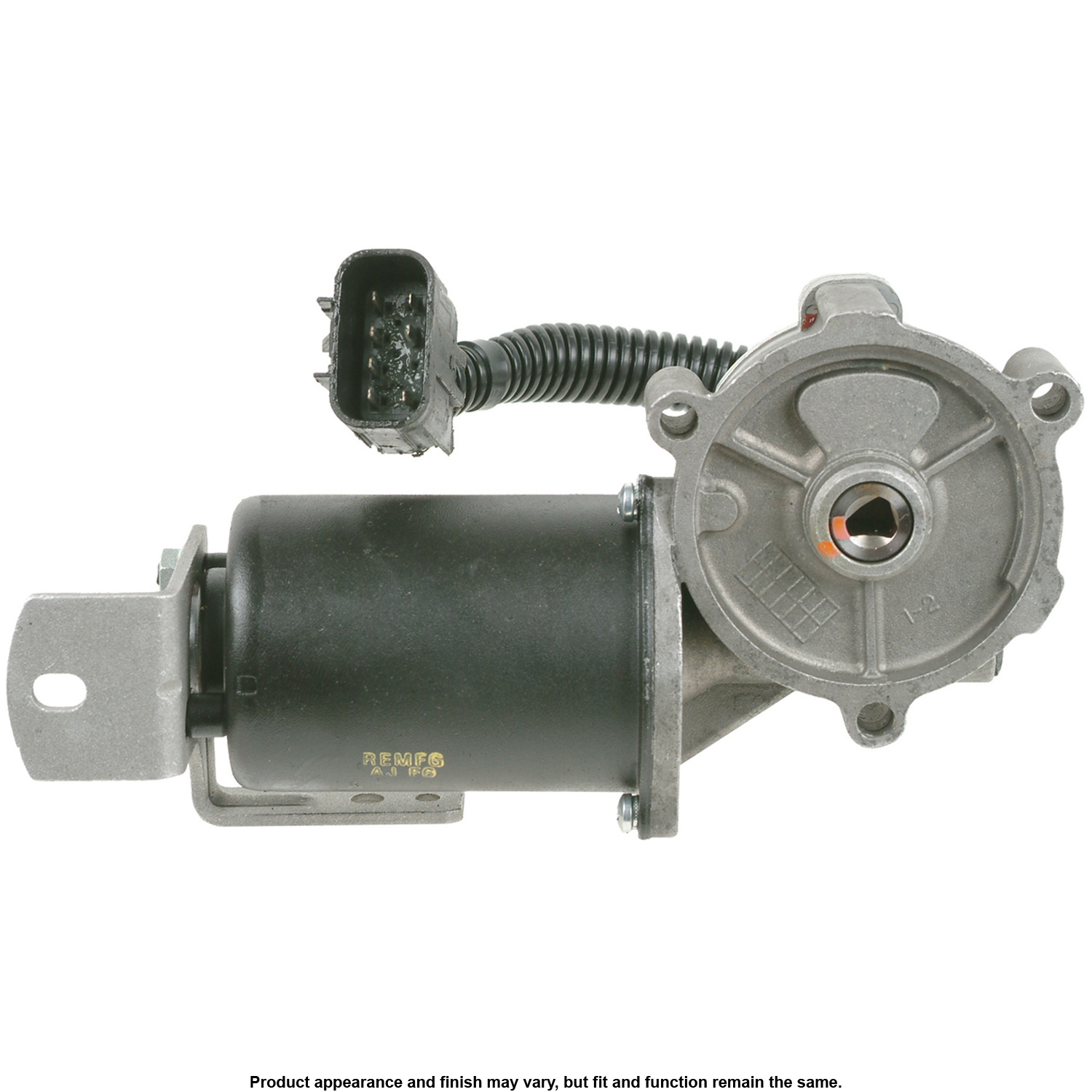

| Part Terminology | Transfer Case Motor |
