Product Details
expand_less
| Output Shaft Diameter (in) |
1.25 |
| Pressure Port Thread Size |
M18 x 1.5 |
| Output Shaft Diameter (mm) |
31.75 |
| Product Condition |
Remanufactured |
| Color |
Black |
| Number of Mounting Holes |
3 |
| Return Port Thread Size |
M16 x 1.5 |
| Input Shaft Spline Count |
25 + Flat & Groove |
| Total Turns Lock To Lock |
3.2 |
| Input Shaft Diameter (in) |
0.73 |
| Input Shaft Type |
Splined, Single Flat |
| Pressure Port ID Size |
0 |
| Package Contents |
Gear, Instruction Sheet (2), Flushing Instruction, Instruction Tag, Sealing Kit |
| Pump Rotation |
Standard |
| First Application Year |
1996 |
| Color/Finish |
Black |
| Input Shaft Diameter (mm) |
18.42 |
| Pitman Arm Included |
No |
| Return Port ID Size |
0 |
| E-Waste |
No |
| Hose Port Type |
O-Ring |
| Steering Box Type |
Power Steering |
| Part Terminology |
Steering Gear |
Features & Benefits
expand_more

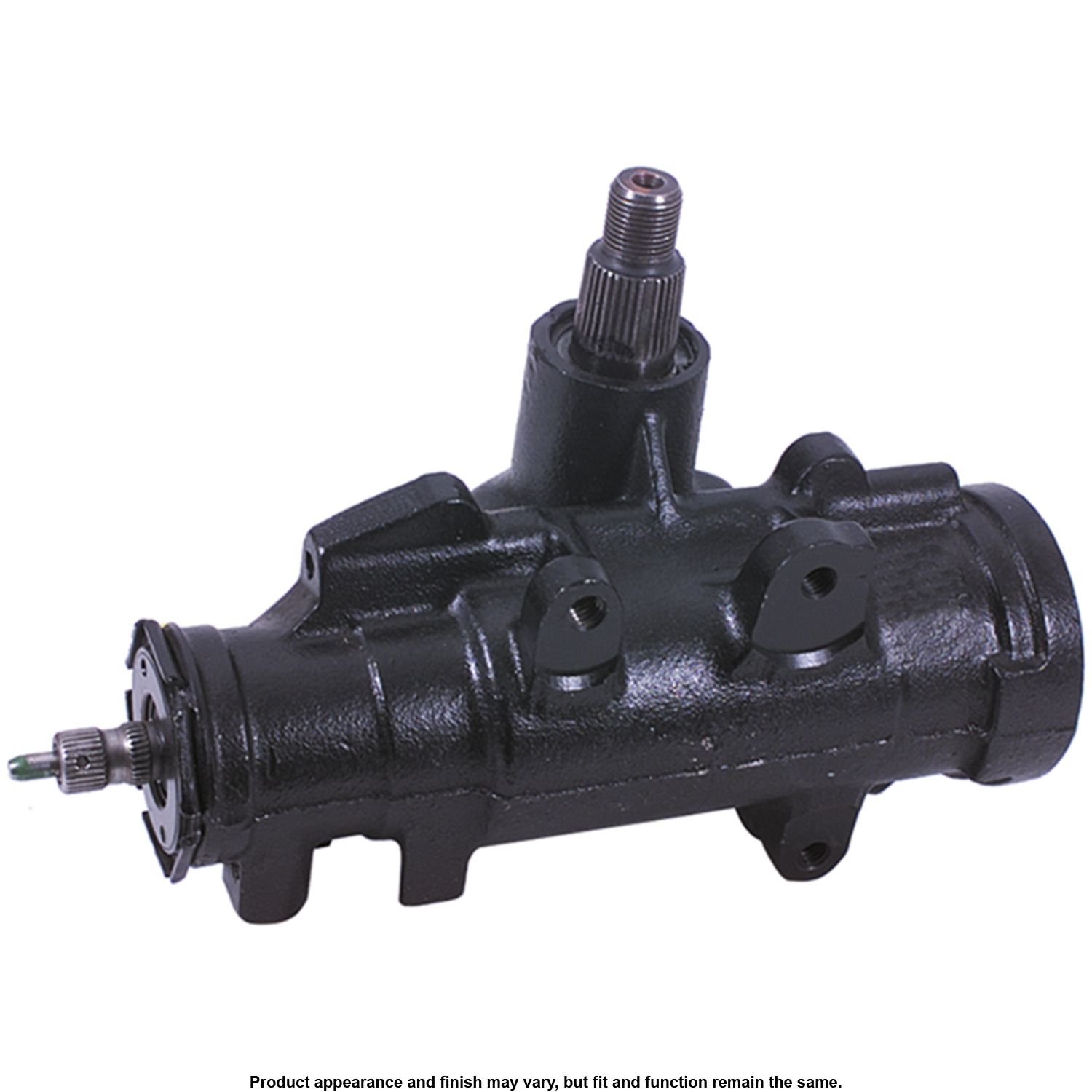

The steering gear box is the heart of the vehicles steering system. It guides the wheels movement in conjunction with the direction that the steering wheel is rotated, helping achieve ideal steering response for more efficient driving. CARDONE Remanufactured Steering Gear Boxes are re-engineered, built and tested to match O.E. performance. Each unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance. Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. All units are 100% hydraulically tested to ensure perfect fit and function.
Application Summary
expand_more
Chevrolet C1500 1996, C1500 Suburban 1996, C2500 1996, C2500 Suburban 1996, K1500 1996, K1500 Suburban 1996, K2500 1996, Silverado 1996, Tahoe 1996; GMC C1500 1996, C1500 Suburban 1996, C2500 1996, C2500 Suburban 1996, K1500 1996, K1500 Suburban 1996, K25
