| Brake Pilot Diameter | 78.2 |
| Flange Shape | MODIFIED TRIANGLE |
| Spline Quantity | 33 |
| Wheel Stud Thread Pitch | 1.5 |
| Heavy Duty Supplier | Yes |
| Bearing Type | Ball |
| Wheel Pilot Diameter | 3.05 |
| Flange Bolt Hole Quantity | 3 |
| Drive Type | Driven |
| Wheel Stud Quantity | 5 |
| Bearing Generation | Gen 3 |
| Wheel Stud Size | 0.47 |
| Bolt Circle Diameter | 139.7 |
| Anti Lock Braking System Type | Tone Ring with sensor |
| Flange Diameter | 7.2 |
| Driven/Non-Driven | Driven |
| Anti Lock Braking System | Yes |
| Flange Included | Yes |
| Knuckle Pilot Hole Diameter | 4.13 |
| Flange Offset | 3.01 |
| Wheel Stud Size (Millimeters) | M12X1.5 |

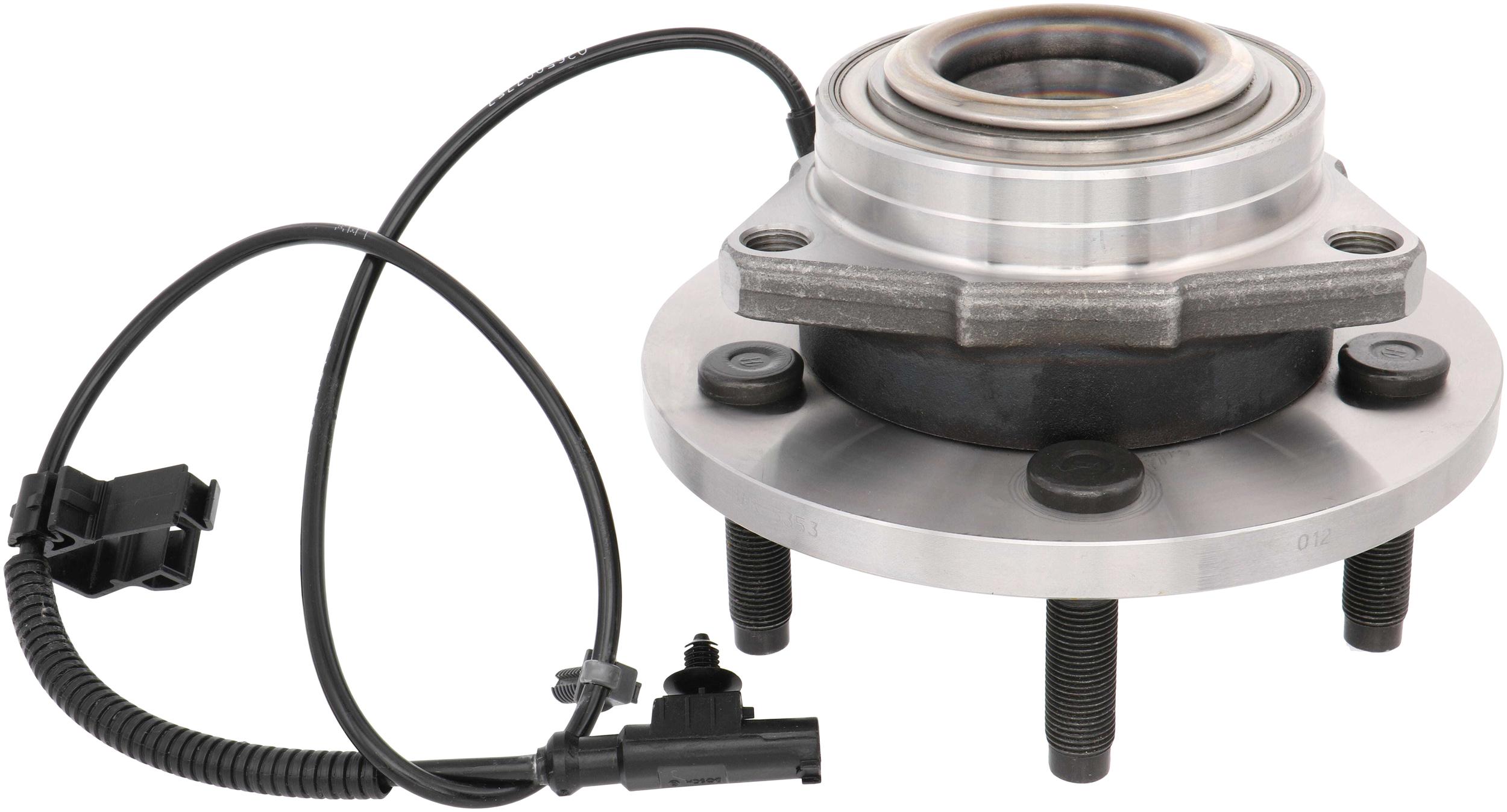

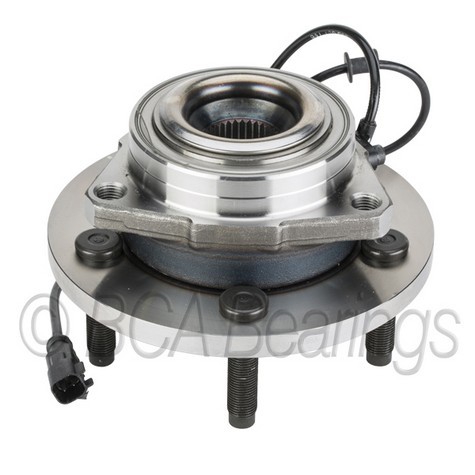

| Part Terminology | Wheel Bearing and Hub Assembly |
