| Flange Shape | MODIFIED TRIANGLE |
| Heavy Duty Supplier | Yes |
| Wheel Pilot Diameter | 77.7 |
| Flange Bolt Hole Diameter | M14X1.5 |
| Knuckle Bolt Circle Diameter (Inches) | 5.236 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 14.3 |
| Anti Lock Braking System Type | Tone Ring with sensor |
| Driven/Non-Driven | Driven |
| Knuckle Bolt Circle Diameter (Millimeters) | 133.0 |
| Brake Pilot Diameter | 78.3 |
| Spline Quantity | 33 |
| Stud Threads per Inch | 18 |
| Bearing Type | Ball |
| Knuckle Bolt Hole Size | M14X1.5 |
| Flange Bolt Hole Quantity | 3 |
| Drive Type | Driven |
| Bearing Generation | Gen 3 |
| Bolt Circle Diameter | 139.7 |
| Stud Thread Type | Fine |
| Flange Diameter | 7.2 |
| Wheel Stud Size (Inches) | 9/16-18UNF |
| Anti Lock Braking System | No |
| Flange Included | Yes |
| Flange Offset | 49 |
| Knuckle Bolt Thread Pitch | 1.5 |

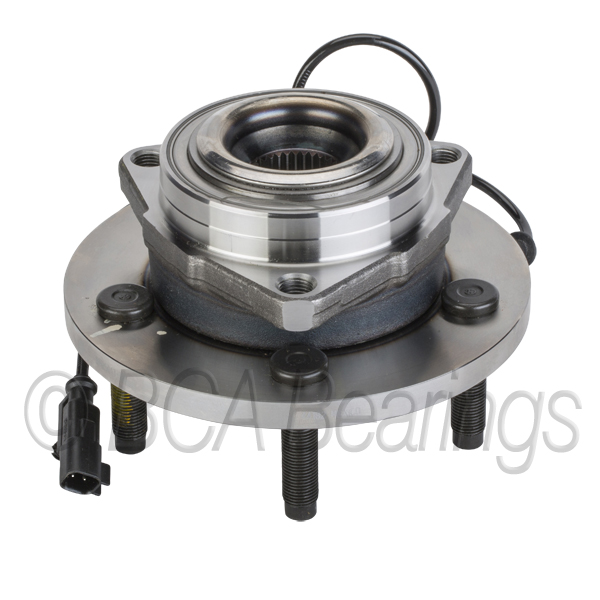

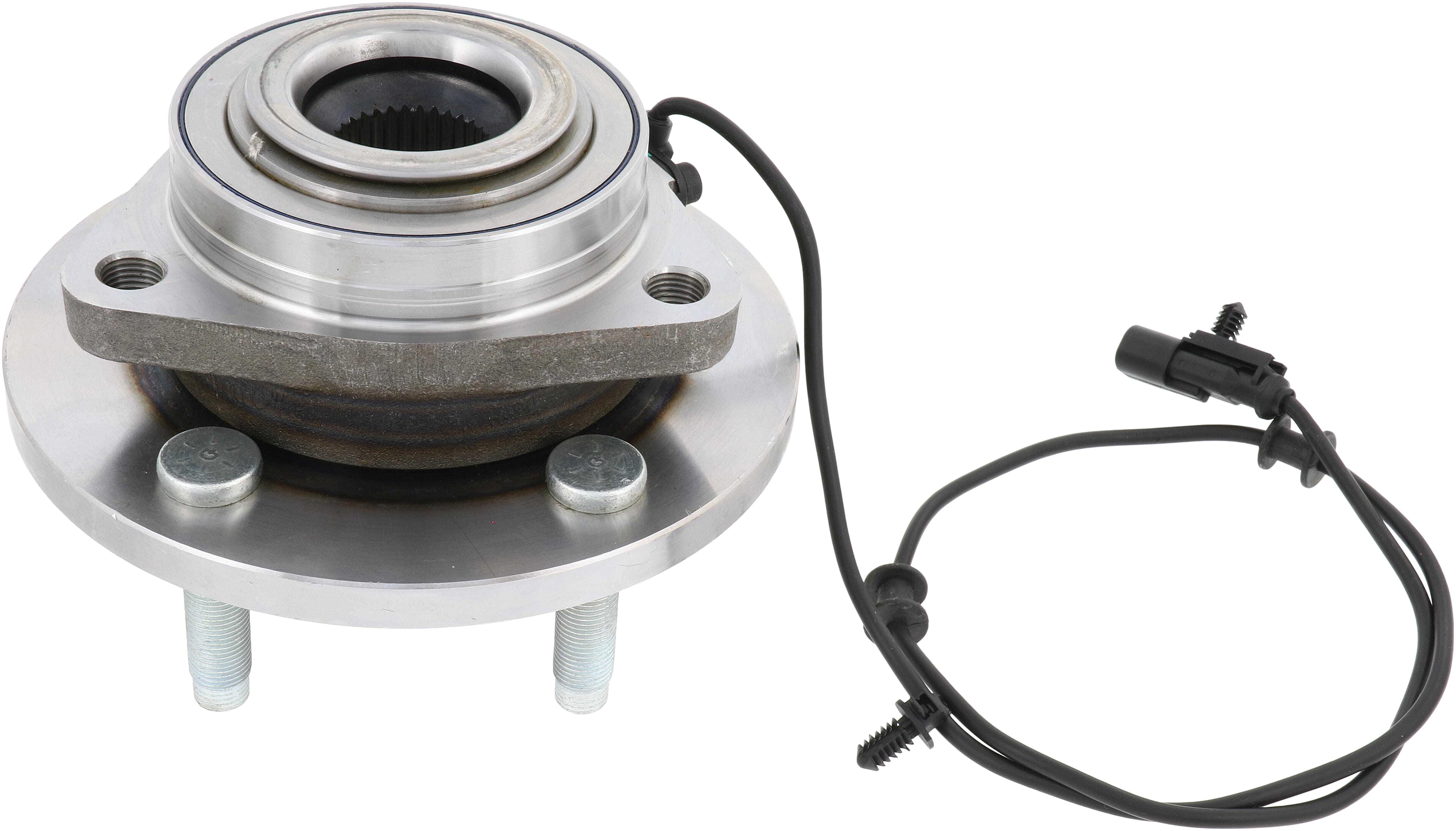

| Part Terminology | Wheel Bearing and Hub Assembly |
