| Type | Hydraulic |
| Total Turns Lock To Lock | 2.563 |
| Mounting Hole Quantity | 2 |
| Check Valve | Yes |
| Outer Tie Rods Included | No |
| Sensor Included | No |
| Heavy Duty Supplier | Yes |
| Number of Mounting Holes | 2 |
| Input Shaft Diameter (in) | 0.73 |
| Input Shaft Diameter (mm) | 18.54 |
| Prop 65 Warning | WARNING: Cancer and Reproductive Harm |
| Hydraulic or Electric | Hydraulic |
| Pressure Port Thread Size | 11mm |
| Turns Lock To Lock | 2.563 |
| Rack Length (mm) | 1349.375 |
| Rack Length (in) | 53.125 |
| Return Port Thread Size | 9mm |
| Inner Tie Rod Length | 13.125 |
| Distance Between Mounting Holes (in) | 21.375 |
| Orientation (Center) | 5:00 to 5:30 Triangular Part |
| Input Shaft Length (mm) | 231.775 |
| Inner Tie Rod Thread Size | 2.5 |
| Input Shaft Length (in) | 9.125 |
| Inner Tie Rods Included | Yes |
| Hydraulic, Electric, or Manual Steering | Hydraulic |
| New Or Remanufactured | Remanufactured |
| Bushings Included | No |
| Prop 65 Label | https://www.p65warnings.ca.gov/ |
| Prop 65 Y/N | Y |

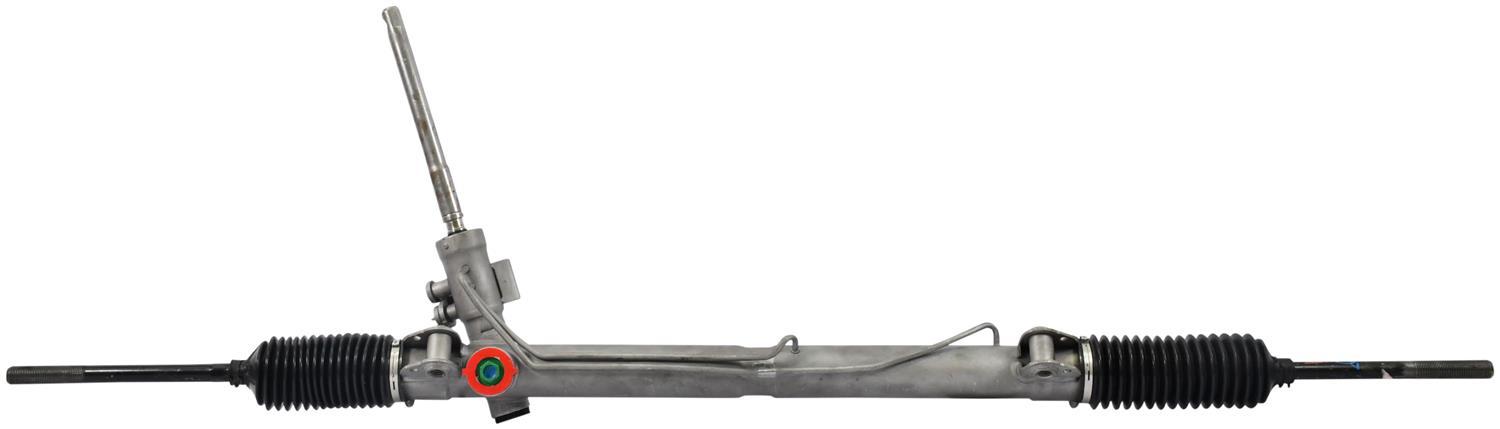

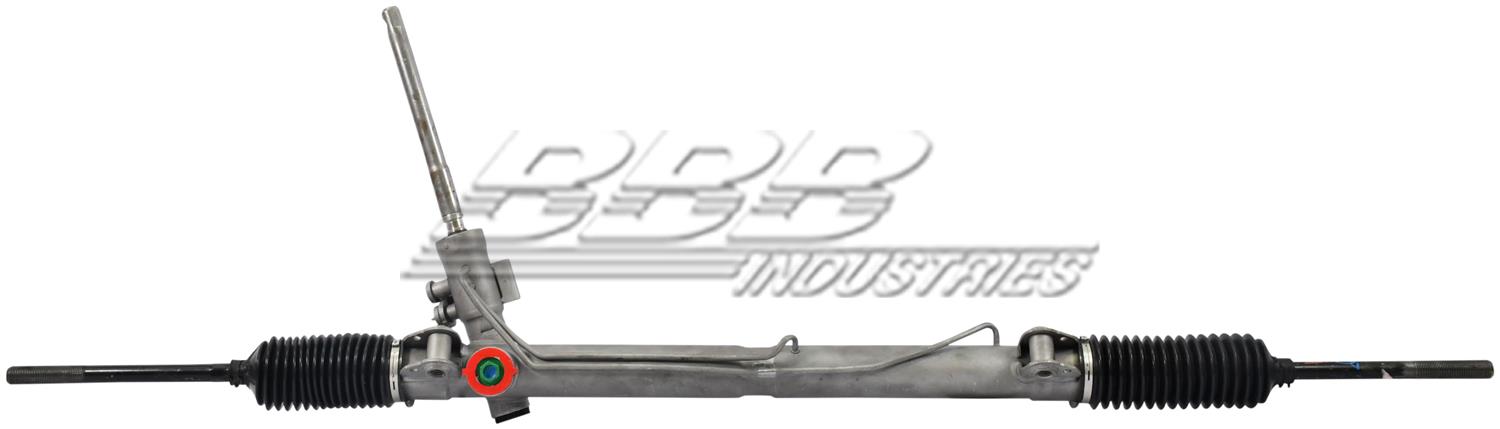

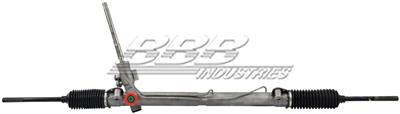

| Part Terminology | Rack and Pinion Assembly |
