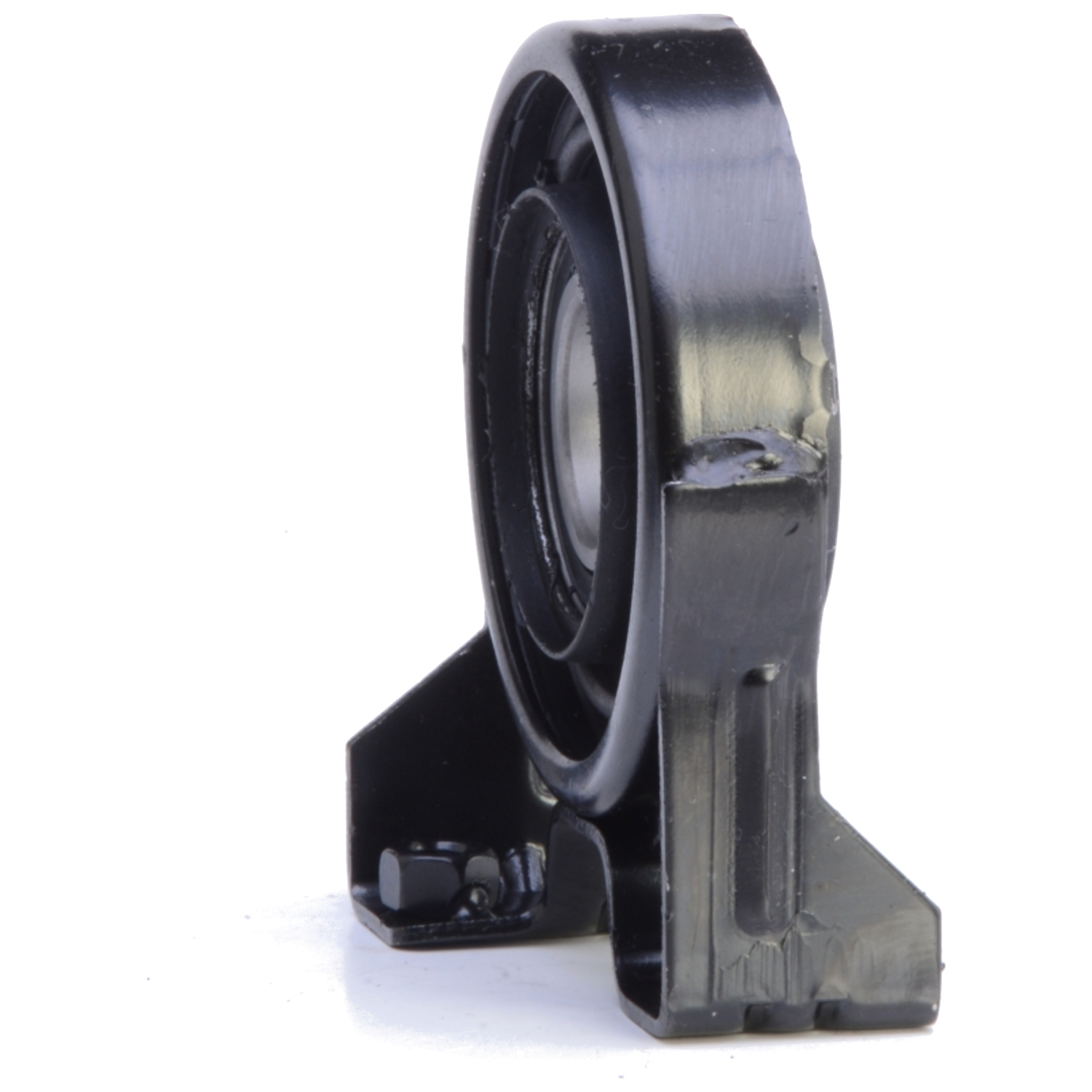

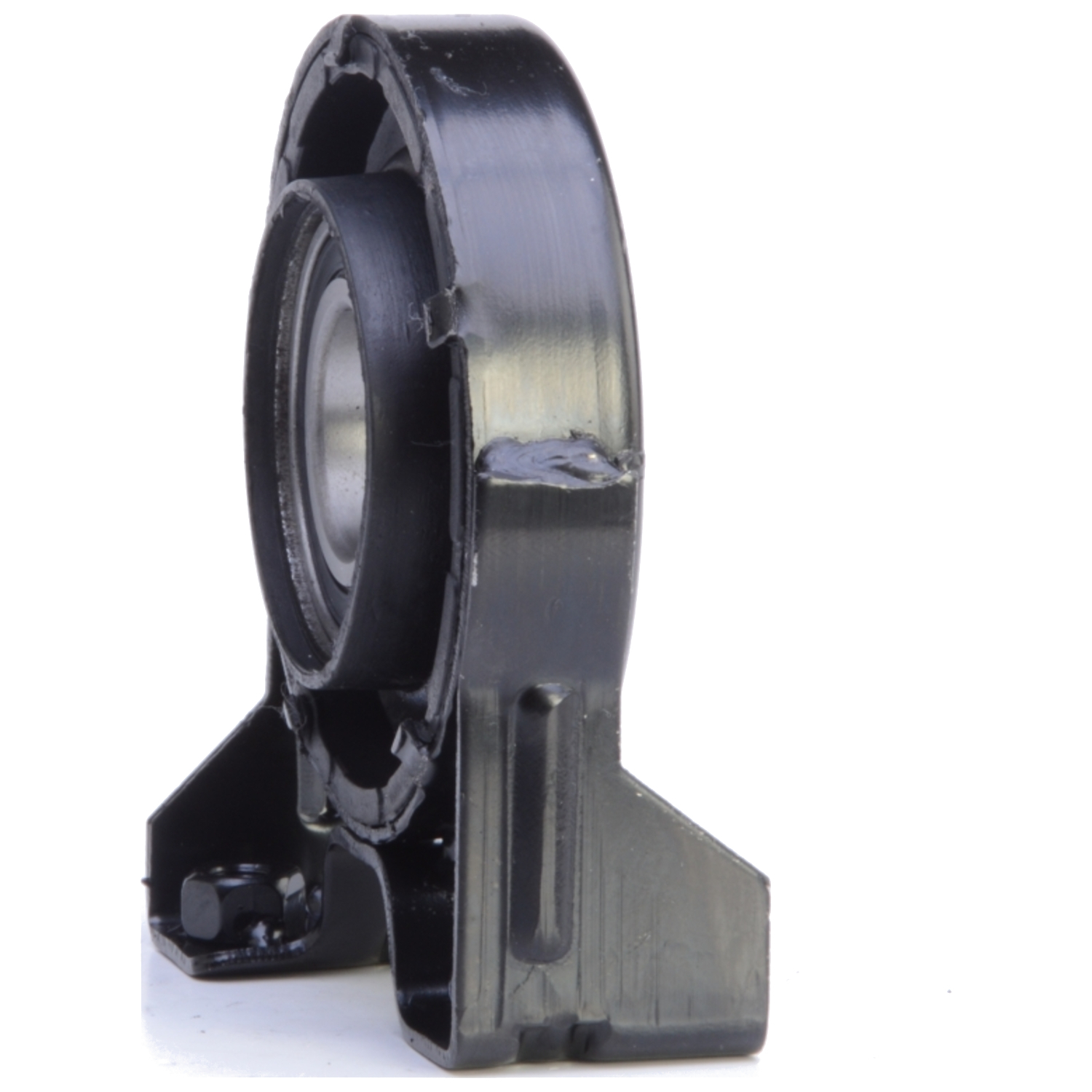

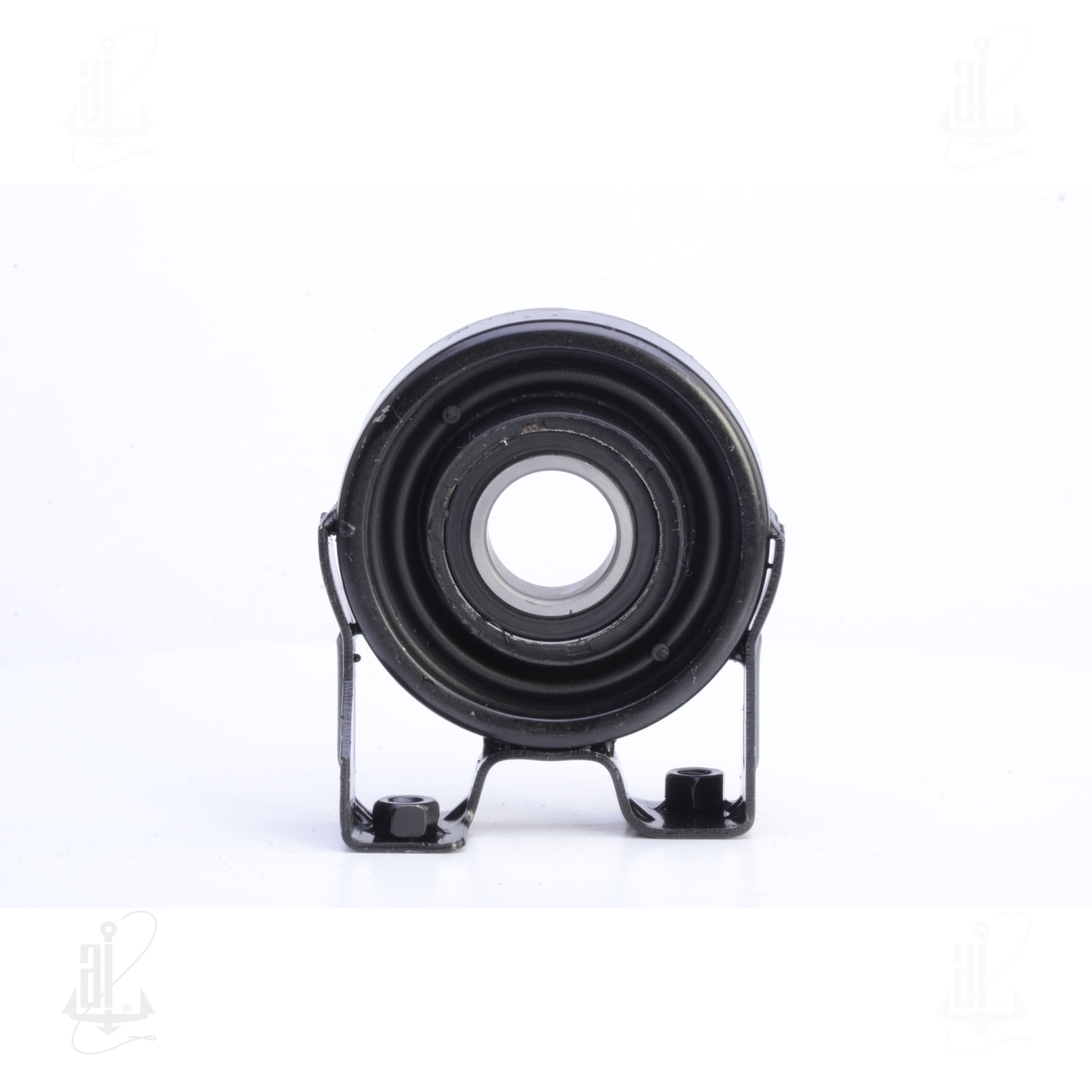

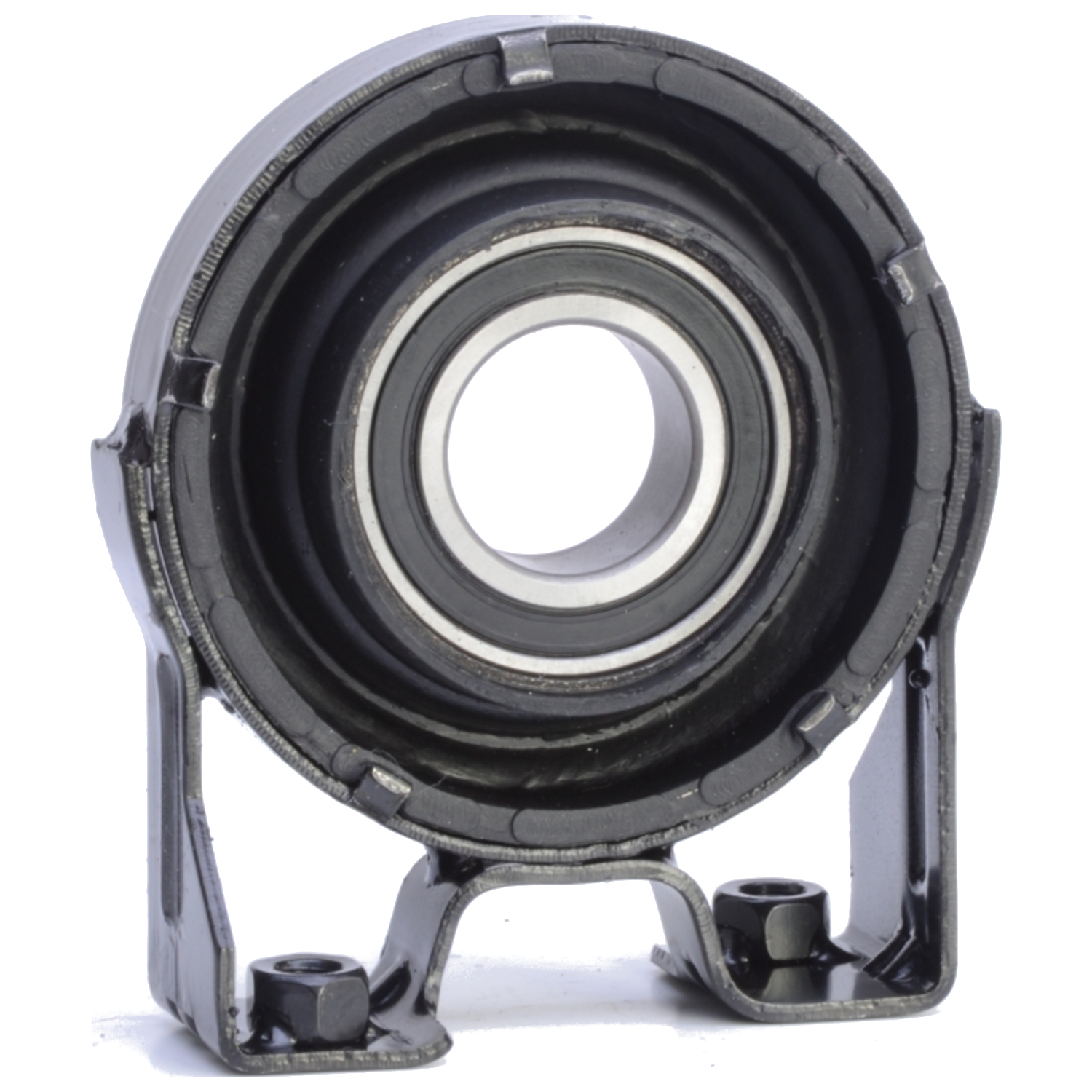

Name: Drive Shaft Center Support Bearing
Brand: Anchor
Price: 113.99 USD

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

CNTR SUPPORT BEARING CENTER

Part # 6096 | Line Code: AND

$113.99

Not Fitted

See Product Details

store

Pickup

Shipping

BEARING ID / BORE	1.1811 INCH / 30 MM
Sealed	Yes
FCAF10_AttributeData	2.50 INCH / 64 MM
MOUNT WIDTH	2.50 INCH / 64 MM
FBAF10_AttributeData	2.80 INCH / 71 MM
Bolt Hole Center To Bolt Hole Center	2.5
FAAF10_AttributeData	1.1811 INCH / 30 MM
FEAF10_AttributeData	WITH ELEVATED MOUNTING PLATFORM
Inside Diameter	1.1811
Note	WITH ELEVATED MOUNTING PLATFORM
Style	ROUND FRAME
FDAF10_AttributeData	ROUND FRAME
Grade Type	Standard Replacement
CENTERLINE	2.80 INCH / 71 MM
Part Terminology	Drive Shaft Center Support Bearing

Anchor 6096
DRIVE SHAFT CENTER SUPPORT BEARING Center
Center support bearings support a driveshaft between transmission and differential. This mount relieves stress on driveline components.
All center supports are engineered and designed to OE standards using the latest CAD/CAM engineering process ensuring the highest consistency and quality.
Only natural and Styrene Butadiene rubber is used to provide premium abrasion resistance, aging stability ensuring maximum life, and performance.
Any included fasteners are hardened steel with heat treated Grade 5 bolts.
Chemlock® bonding agent is used to ensure a superior rubber-to-metal bond.
Rubber cushion is made of high grade rubber that ensures maximum dampening of vibration and the ability to absorb over loads.
The housing frame is made from heavy gauge steel with durability that extends the service life.
Most center supports include a sealed bearing, dust shield and are ready to install.

AUDI Q7 07-09;PORSCHE CAYENNE 03-10;VW TOUAREG 04-10;
